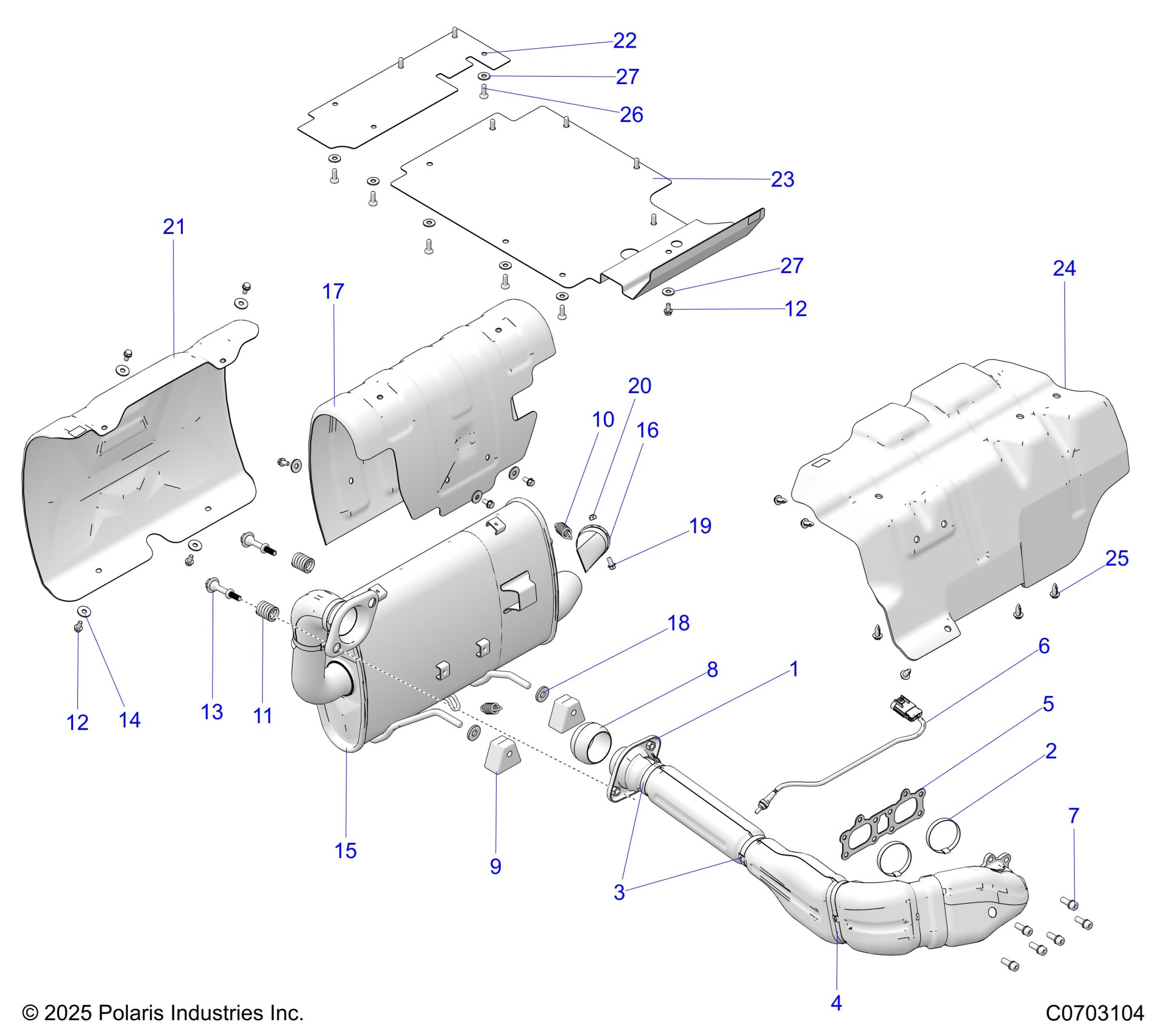

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ENGINE, EXHAUST SYSTEM Diagram

#

Description
Price

1

ASM., HEADPIPE [INCLUDES 2-4]

1262674

$569.99

2

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.14

3

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.14

4

CLAMP-HEAT SHIELD,EXHAUST

7081915

$7.14

5

GASKET-EXHAUST SEAL

3610184

$48.56

6

SENSOR, OXYGEN

4016021

$169.98

7

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518984

$7.94

8

GASKET-DOUBLE SPHERICAL,2"

3610248

$36.41

9

MOUNT, ISOLATOR

5450115

$14.56

10

SPRING, EXHAUST

7041804

$8.89

11

SPRING, SPHERICAL, EXHAUST

7044274

$15.37

12

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.19

12

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.19

13

STUD-SPHERICAL,EXHAUST

7520079

$13.49

14

WASHER-.28 X .81 X .06, ST-M

7555935

$2.38

15

ASM-SILENCER [INCLUDES 16-21 & QTY 4 OF 12 & 14]

1263704

$759.99

16

WELD-SPARK ARRESTOR,AVA875

1263707

$56.65

17

SHIELD-SILENCER

5260630

$91.97

18

WASHER-.406X1.00X.125,FL

7555966

$2.62

19

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

20

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

21

SHIELD-SILENCER,OUTER,BLK

5260918-458

$145.22

22

SHIELD-BOX REAR

5263934

$20.22

23

SHIELD-BOX

5266813

$72.84

24

SHIELD-FOIL

5814260

$91.97

25

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

26

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

27

WASHER-.312 X .734 X .065-Z

7558302

$1.59

27

WASHER-.312 X .734 X .065-Z

7558302

$1.59
