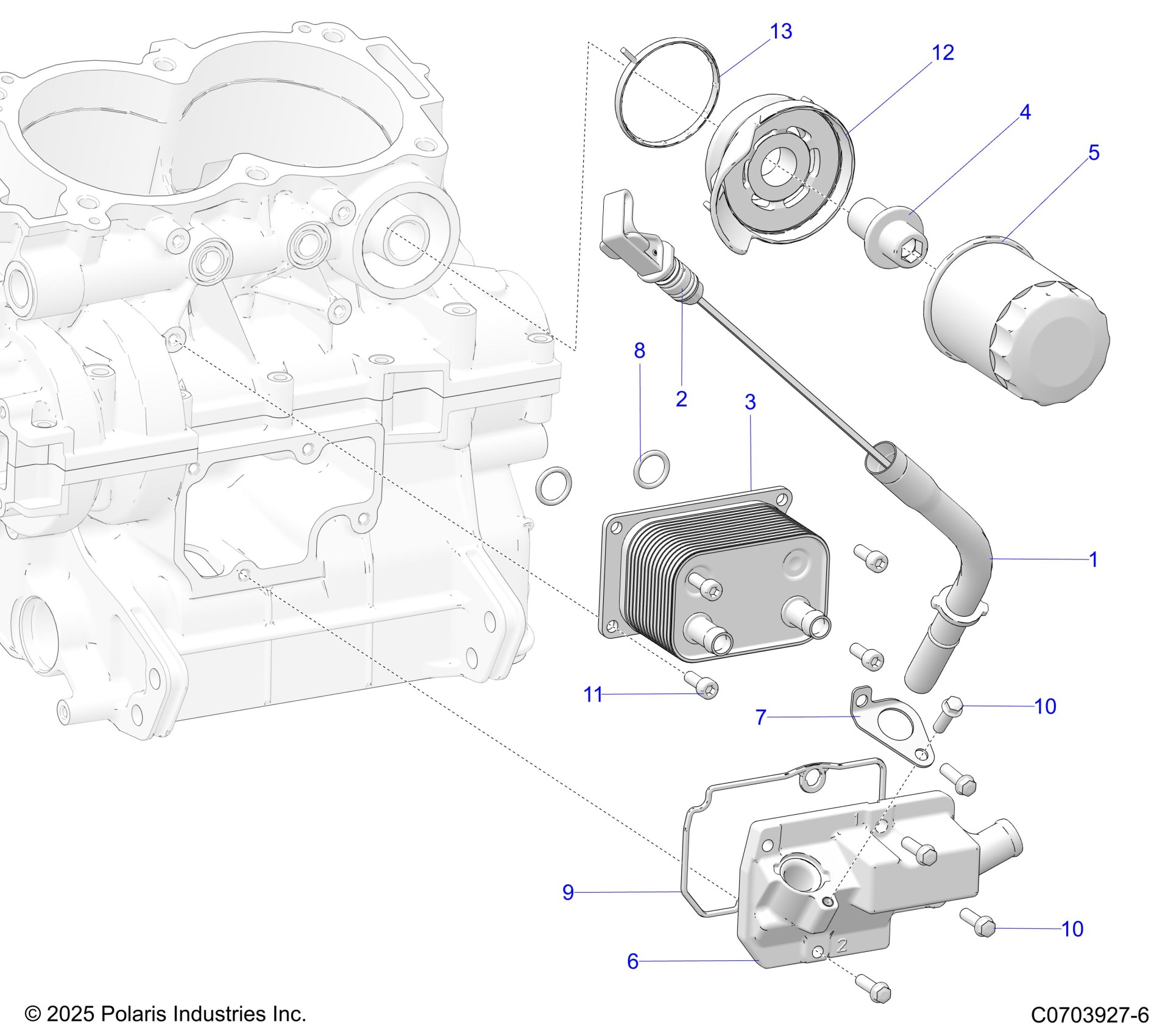

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ENGINE, DIPSTICK AND OIL FILTER Diagram

ASM-OIL FILL TUBE [INCLUDES O-RING]

1204547

$44.51

O-RING, 12MMX2MM

5414047

$3.63

ASM-DIPSTICK

3023488

$36.41

COOLER, OIL TO WATER, 7

1240820

$118.74

BOLT-SHFL-M20X1.5X23.5 8.8 ZPC

7520924

$26.17

FILTER-OIL (10 MICRON) [TO 2/02/2026]

2540086

$11.90

FILTER-HD,OIL [HD OPTION FOR 2540086]

2522485

$15.87

FILTER-OIL,10 MICRON [FROM 2/02/2026]

2522793

Unavailable

COVER-BREATHER,MACH

5145419

$48.40

BRACKET, TUBE, OIL FILL, LOWER

5255453

$8.89

O-RING,.612X.818X.103

5413837

$4.84

SEAL-COVER,BREATHER

5813759

$28.32

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.97

ADAPTER-OIL FILTER,MACH

5142150

$40.46

SEAL-FILTER ADAPTER

3610318

$11.32
