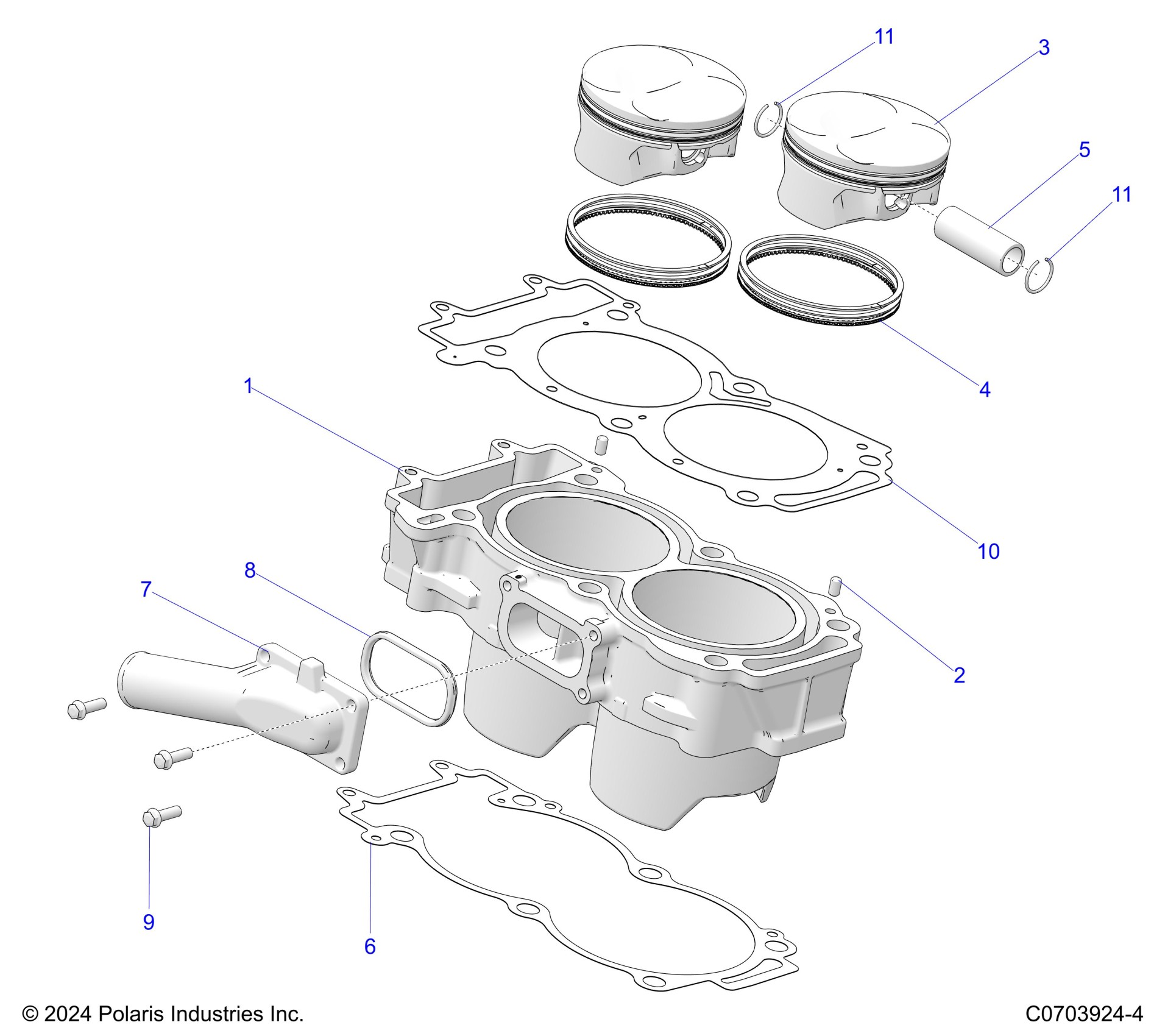

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ENGINE, CYLINDER AND PISTON Diagram

#

Description

Price

1

ASM-CYLINDER,999 [INCLUDES 2]

3023156

$479.69

2

PIN-DOWEL,M6X10

5132835

$2.39

3

KIT-PISTON 3022567 [INCLUDES 4,5,11]

2205244

$189.99

3

ASM-PISTON

3022567

Unavailable

4

KIT-PISTON RINGS

2205245

Unavailable

5

PIN-PISTON

3022358

$23.99

6

GASKET-BASE,2 CYL

5272970

$35.99

7

COVER-WATER INLET,CAST

5632557

$14.39

8

GASKET-WATER,INLET

5813736

$24.27

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

10

GASKET-CYLINDER,HEAD

5814793

$72.60

11

RING-RTG,ROUND,20.0X1.6

3022413

$3.99

11

RING-RTG,ROUND,20.0X1.6

3022413

$3.99
