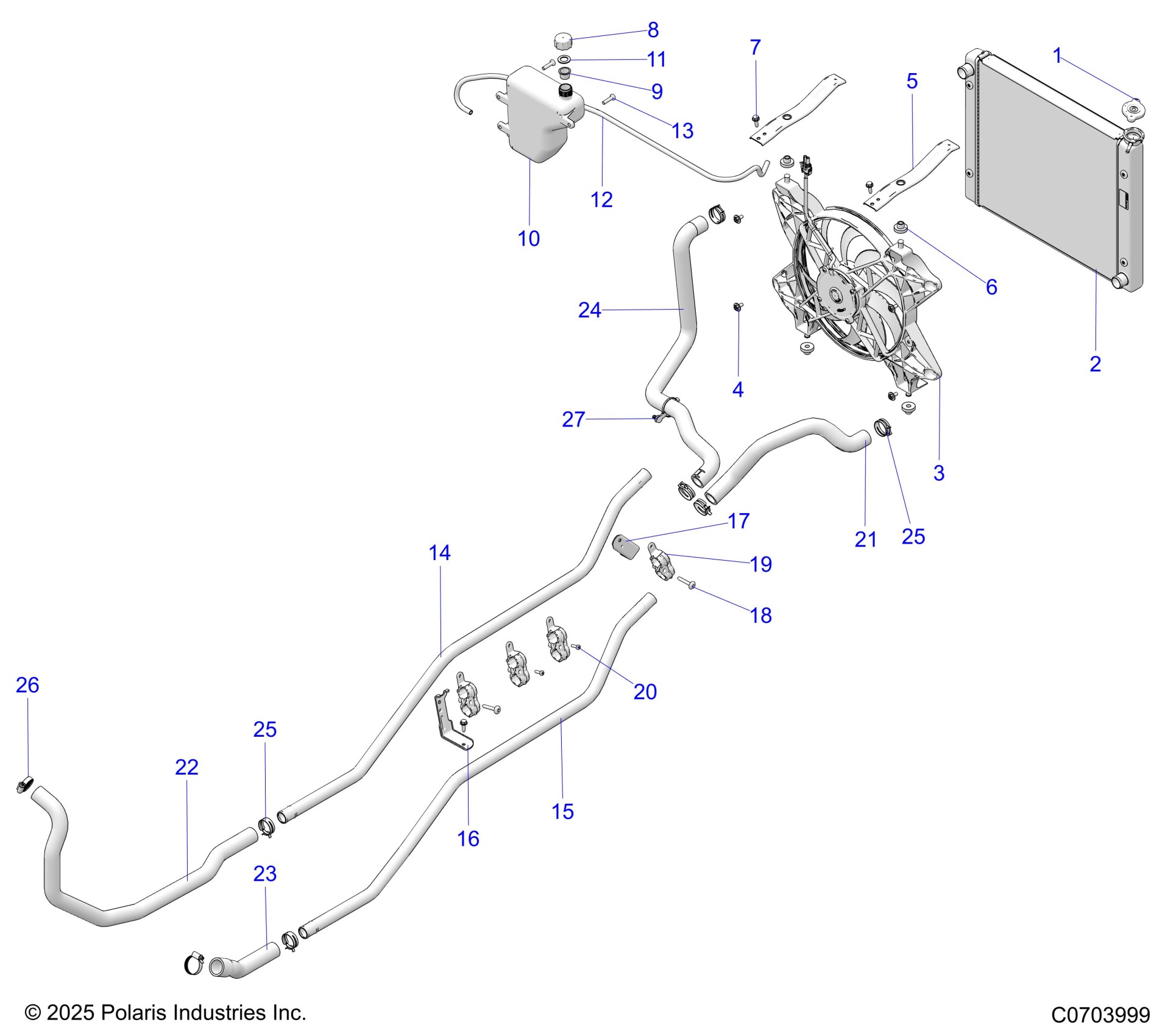

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ENGINE, COOLING SYSTEM Diagram

#

Description
Price

-

ASM., RADIATOR [INCLUDES 1-4]

1240712

$739.99

1

CAP

1240694

$40.46

2

ASM., RADIATOR, CORE

1240745

$565.24

3

FAN-ASSEMBLY

2412447

$299.24

4

BOLT, M6X15MM

7519585

$9.52

5

BRKT-UPR RAD MNT

5276397

$32.37

6

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

9

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

10

TANK-SURGE

5439202

$97.13

11

GASKET-OVERFLOW CAP

5810279

$2.41

12

FUEL LINE-95 CENTIMETERS

8450003-95

$89.99

13

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.76

14

TUBE-COOLANT,1"

5141611

$58.08

15

TUBE-COOLANT,1"

5141612

$67.76

16

BRACKET, COOLANT TUBE, BLACK

5259433-329

$34.99

17

BRACKET, COOLANT TUBE, BLACK

5260766-329

$34.99

18

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.97

19

BRACKET-COOLANT TUBE

5451221

$8.89

20

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

21

HOSE, LOWER, RADIATOR, LONG

5414532

$48.56

22

HOSE, ENGINE OUTLET, REAR

5415451

$58.08

23

HOSE-ENGINE INLET

5415452

$32.37

24

HOSE, UPPER, RADIATOR

5417056

$48.56

25

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

25

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

26

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

27

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17
