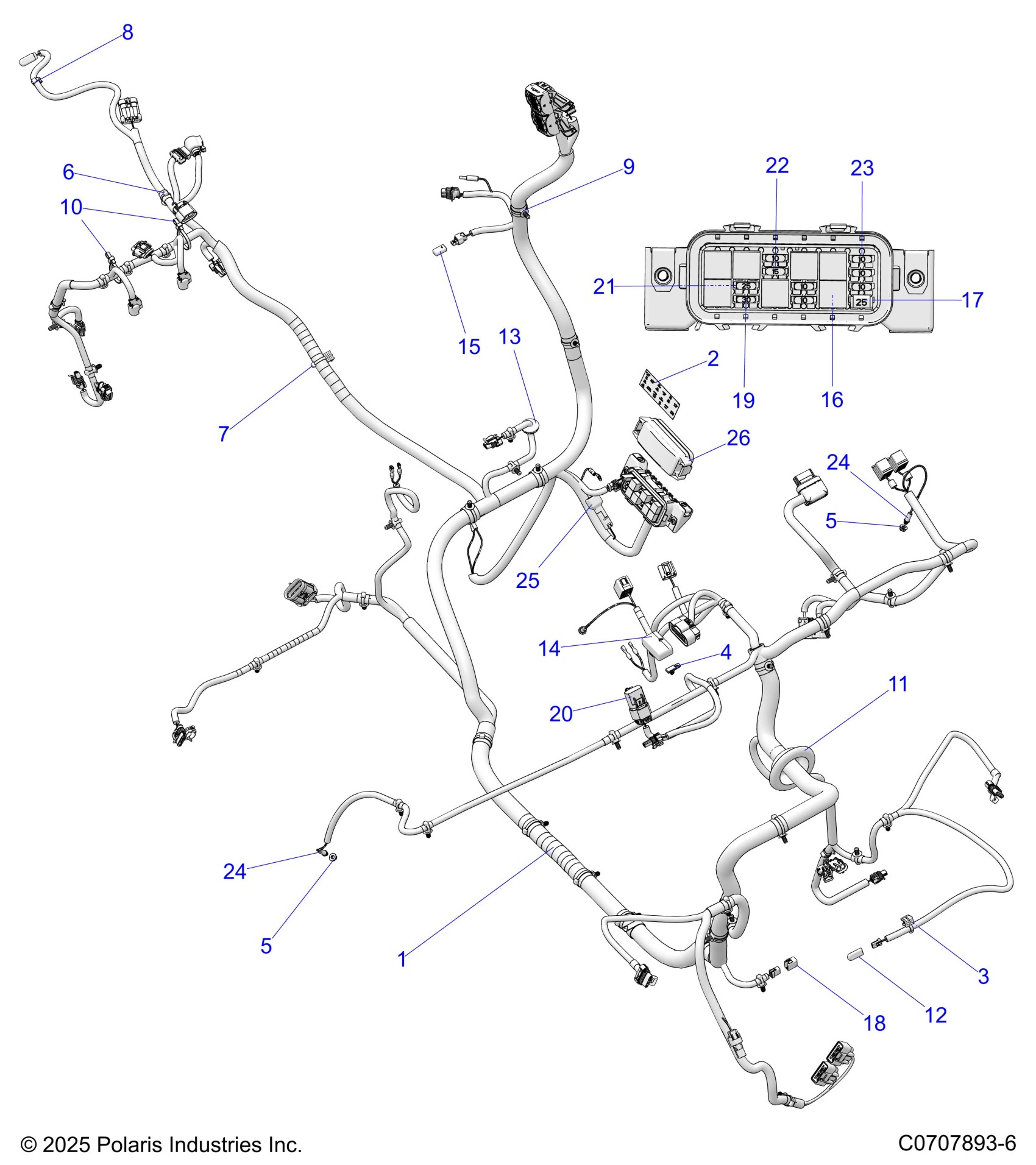

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ELECTRICAL, HARNESS, CHASSIS Diagram

#

Description
Price

1

HARNESS-CHASSIS [INCLUDES ALL]

2417738

$1,337.59

2

LABEL, FUSE BOX

7190832

Unavailable

3

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

4

CLIP-FIR,HOLE6.35MM

7082134

$3.99

5

CLIP - ROUTING, DIN BOX

7082020

$5.59

5

CLIP - ROUTING, DIN BOX

7082020

$5.59

6

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

7

CLIP, EDGE, SIDE, W/STRAP

7081876

$7.99

8

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

10

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

11

GROMMET - 65 MM, BLK

5813954

$7.19

12

CAP - VINYL, 125X375, BLACK

5438230

$5.59

13

GROMMET - USB, 3 MM, 22 MM DIA

5415308

$3.99

14

CAP-EVAP CONNECTOR

4018655

$3.99

15

CAP EVAP CONNECTOR

4018066

$3.99

16

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

17

BRAEAKER, CIRCUIT, 25 AMP

4015771

$63.99

18

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

19

FUSE- 30 MINI BLADE 58V (GREEN)

4013561

$6.39

20

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

21

FUSE-25A,MINI BLADE

4011653

$7.99

22

FUSE-15AMP,MINI BLADE

4010859

$7.19

23

FUSE-IGNITION,10 AMP

2434016

$4.79

24

LED-PANEL MNT,12V,BLUE

2416797

$55.99

24

LED-PANEL MNT,12V,BLUE

2416797

$55.99

25

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

26

COVER- FUSE BOX, 48 WAY

4015011

$55.99
