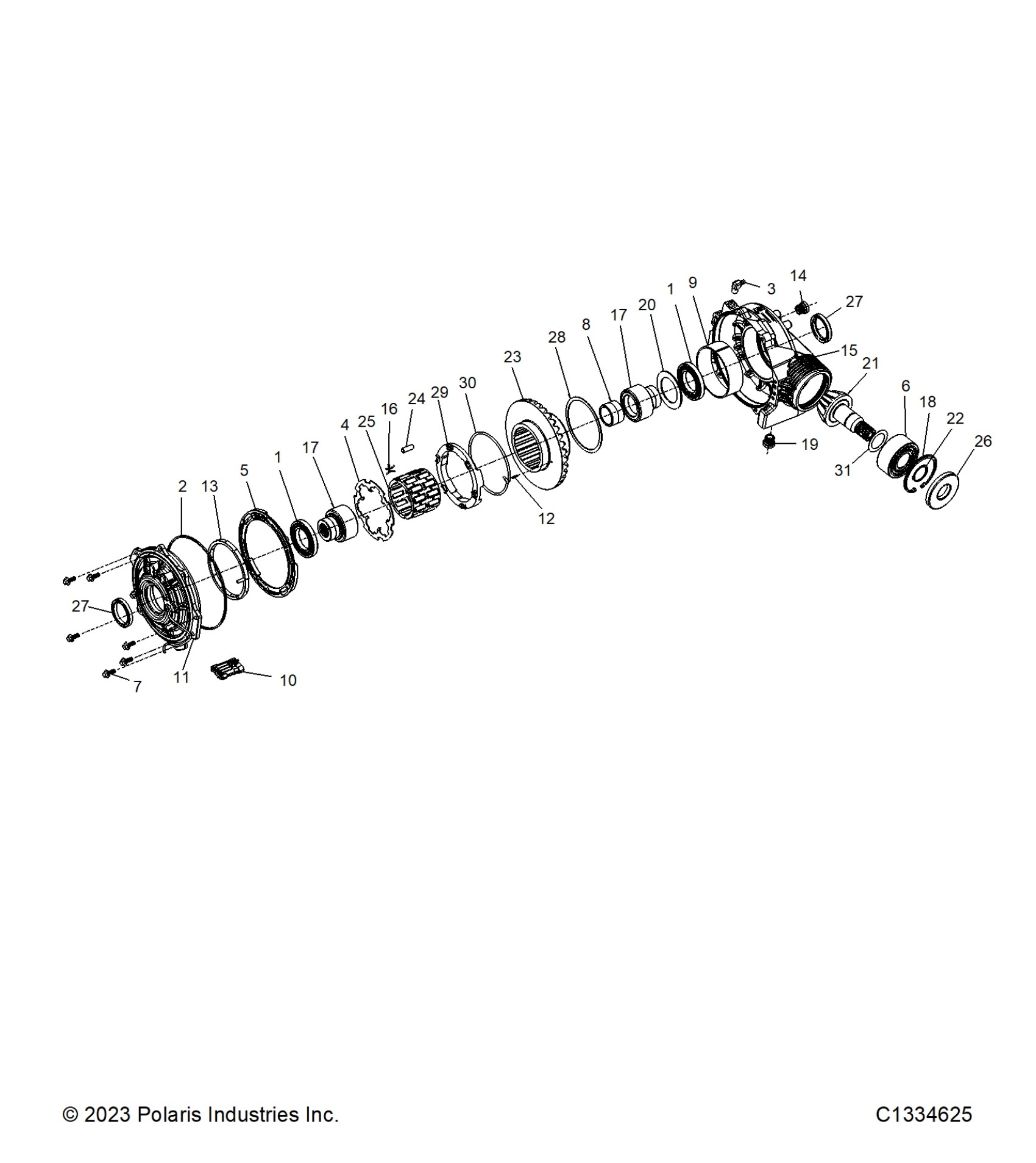

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN DRIVE TRAIN, FRONT GEARCASE Diagram

#

Description
Price

-

KIT-PLUG,DRAIN [INCLUDES 19]

2203738

$35.99

-

KIT-PLUG,FILL [INCLUDES 14]

2203739

$39.99

-

SPACER-RING GEAR [INCLUDES 28]

3234437

$19.99

-

TORSION SPRING & RETAINER [INCLUDES 29 & 30]

3235490

$67.99

-

COVER-FASTNERS [INCLUDES 7]

3235483

$47.99

-

CAGE ROLLERS

3235486

$191.81

-

PLATE-4WD ARMATURE [INCLUDES 4]

3236048

$107.99

-

BEARING, PINION [INCLUDES QTY 2 OF 1, & 6]

3236214

$151.99

-

ASM., ROLL CAGE [INCLUDES 16 & 25]

3236540

$263.99

-

ASM., OUTPUT HUB [INCLUDES QTY OF 2 OF 1,8,17,20]

3236649

$444.59

-

ASM., GEARCASE [INCLUDES 3,9,14,15,19,27]

3236652

$655.59

-

ASM-GEARCASE,FRONT [INCLUDES ALL]

1334625

$1,680.79

-

ASM-GEAR HOUSING & PINION [INCLUDES 6,12,18,21-23,31]

3236749

$747.99

-

ASM-COVER OUTPUT [INCLUDES 2,5,10,11,13 & QTY 2 OF 27]

3236717

$391.99

-

K-SEAL REPAIR [INCLUDES 2,26 & QTY 2 OF 27]

3236719

$99.99

1

16008 BRG

-------

Unavailable

1

16008 BRG

-------

Unavailable

2

165S SQ O-RING BUNA-N 70 DURO

-------

Unavailable

3

90 DEGREE BARBED HOSE FITTING

-------

Unavailable

4

ARMATURE PLATE

-------

Unavailable

5

BACKLASH SPACER

-------

Unavailable

6

BEARING, DOUBLE ROW 5306

-------

Unavailable

7

BOLT M6X1X16

-------

Unavailable

8

BUSHING

-------

Unavailable

9

BUSHING, DU

-------

Unavailable

10

CONNECTOR ASSEMBLY

-------

Unavailable

11

COVER, MACHINING

-------

Unavailable

12

DRIV-LOK WELD STUD

-------

Unavailable

13

ENCAPSULATED COIL

-------

Unavailable

14

FILL PLUG

-------

Unavailable

15

GEARCASE MACHINING

-------

Unavailable

16

SPRING H-CLIP

-------

Unavailable

17

HUB ASSMEBLY, 22T

-------

Unavailable

17

HUB ASSMEBLY, 22T

-------

Unavailable

18

INTERNAL RR VHO-281

-------

Unavailable

19

MAGNETIC DRAIN PLUG

-------

Unavailable

20

NYLON SPACER

-------

Unavailable

21

PINION MACHINING

-------

Unavailable

22

RETAINER RING VSH-119

-------

Unavailable

23

RING GEAR MACHINING

-------

Unavailable

24

ROLL

-------

Unavailable

25

ROLL CAGE MACHINING

-------

Unavailable

26

SEAL OIL 30X72X8 MM

-------

Unavailable

27

SEAL OIL CUSTON, 40X52X7 MM

-------

Unavailable

27

SEAL OIL CUSTON, 40X52X7 MM

-------

Unavailable

28

SPACER, GEAR

-------

Unavailable

29

SPRING RETAINER ASSEMBLY

-------

Unavailable

30

TORSION SPRING

-------

Unavailable

31

SHIM

-------

Unavailable
