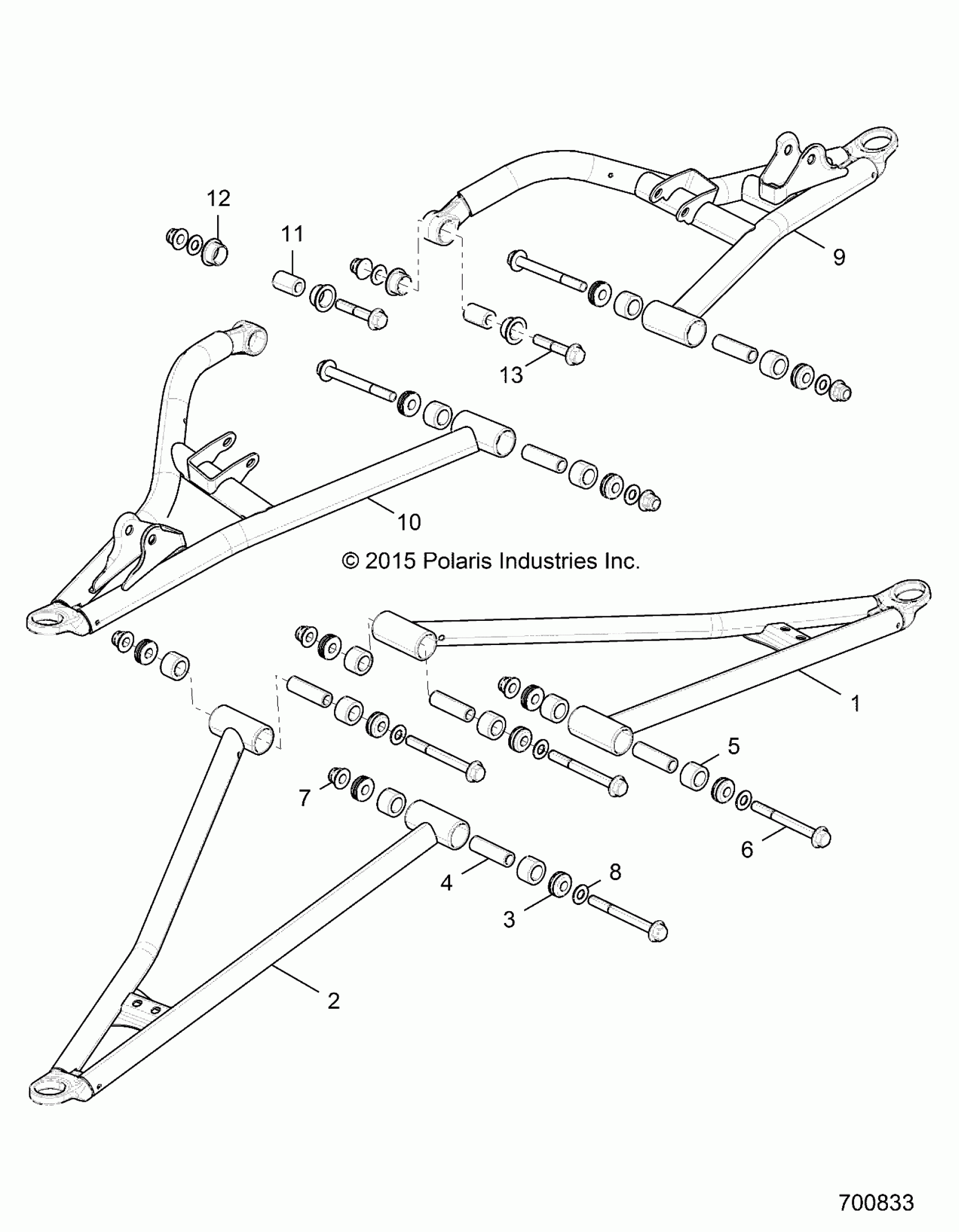

Polaris GENERAL 1000 EPS (R28) - R16RGE99A7/AE/AV SUSPENSION, FRONT CONTROL ARMS - R16RGE99A7/AE/AV (700833) Diagram

WELD-CTRL ARM,LWR,FRT,LH,60,WT [AE]

1021416-133

$121.02

WELD-CTRL ARM,LWR,FRT,LH,60,BL [A7][AV]

1021416-458

$154.90

WELD-CTRL ARM,LWR,FRT,RH,60,WT [AE]

1021417-133

$121.02

WELD-CTRL ARM,LWR,FRT,RH,60,BL [A7][AV]

1021417-458

$154.90

ASM-PIVOT CAP,SEALED,M10

1543611

$5.65

SHAFT-PIVOT,SHORT,M10

5139966

$5.65

BUSHING-STANDARD,SUSP,M10

5452233

$2.38

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

WELD-CTRL ARM,UPR,FRT,LH,60,WT [AE]

1021418-133

$198.48

WELD-CTRL ARM,UPR,FRT,LH,60,BL [A7][AV]

1021418-458

$198.48

WELD-CTRL ARM,UPR,FRT,RH,60,WT [AE]

1021419-133

Unavailable

WELD-CTRL ARM,UPR,FRT,RH,60,BL [A7][AV]

1021419-458

Unavailable

TUBE-PIVOT,29.2MM

5138276

$28.32

BUSHING-CONTROL ARM,IGUS

5450095

$2.38

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.38
