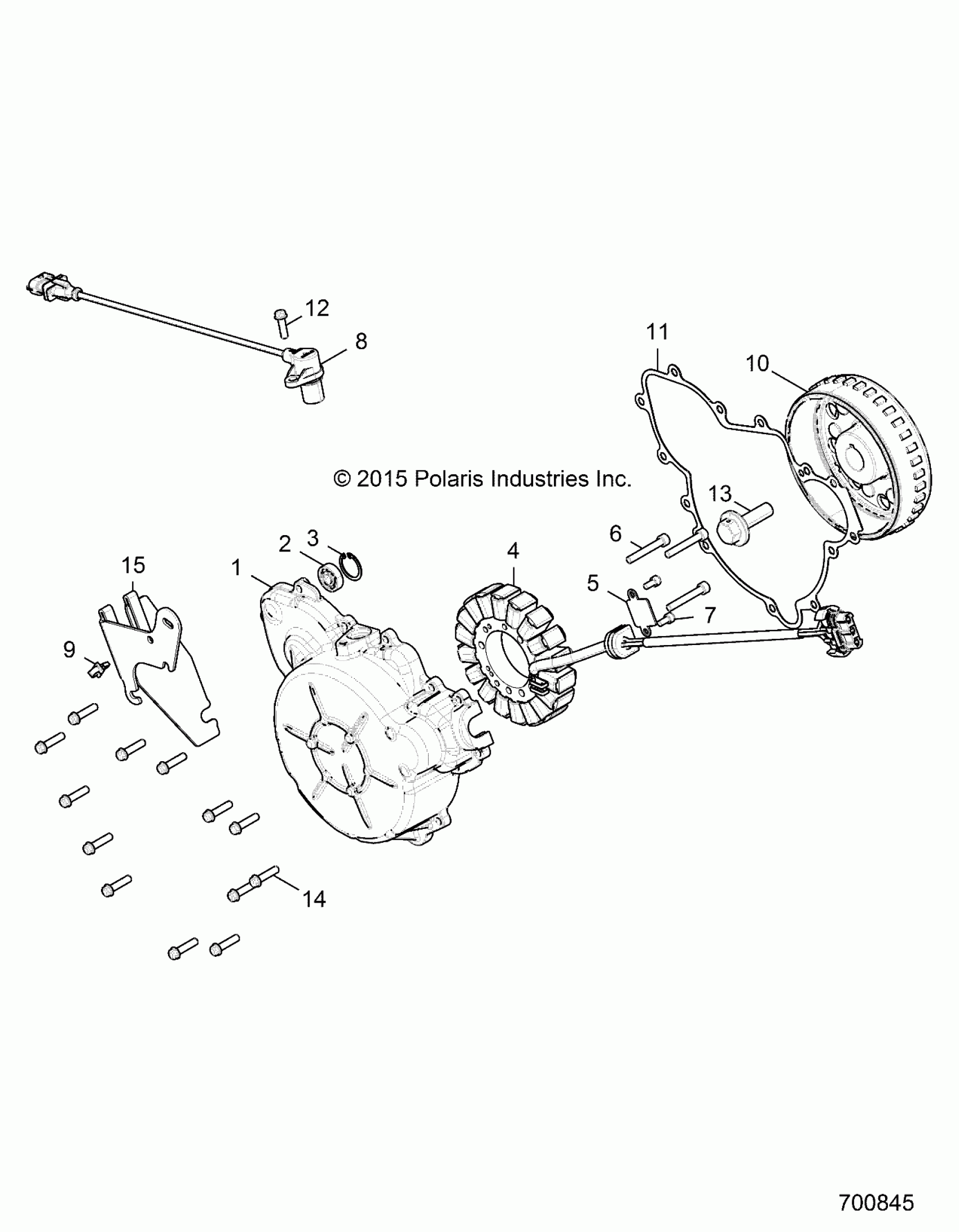

Polaris GENERAL 1000 EPS (R28) - R16RGE99A7/AE/AV ENGINE, STATOR AND FLYWHEEL - R16RGE99A7/AE/AV (700845) Diagram

#

Description
Price

1

ASM., IGNITION COVER [INCL. 2,3]

1204518

$159.75

2

BEARING, BALL

3514717

$8.79

3

RING, SNAP

7710654

$23.99

4

STATOR

4014839

$480.30

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCREW

7510005

$5.70

7

SCREW

7517847

$3.19

8

SENSOR, CRANK POSITION

2411719

$101.17

9

CLIP-WIRE,6.35MM

7081477

$3.19

10

FLYWHEEL

4014688

$181.49

11

GASKET, COVER, IGNITION

5814160

$39.99

12

SCREW

7518576

$3.19

13

SCREW

7519170

$23.99

14

SCREW

7519297

$3.99

15

BRKT-BYPASS-SHIFTER

5259742

$31.99
