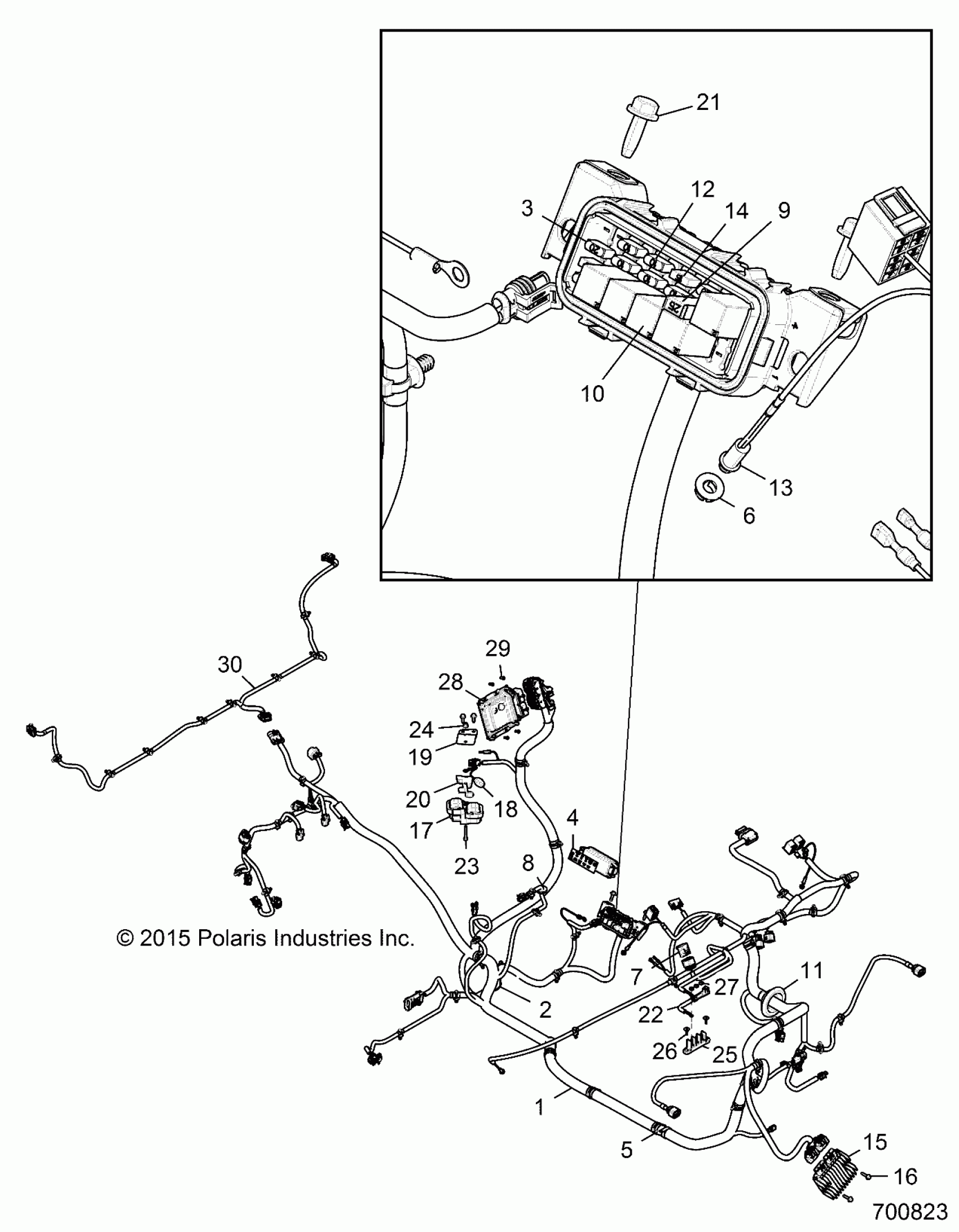

Polaris GENERAL 1000 EPS (R28) - R16RGE99A7/AE/AV ELECTRICAL, WIRE HARNESS - R16RGE99A7/AE/AV (700823) Diagram

#

Description
Price

1

HARNESS-CHASSIS,W/WINCH [INCL 2-14 ][AE][AV]

2413243

Unavailable

1

HARNESS-CHASSIS,BASE [INCL 2-14][A7]

2413267

Unavailable

2

LINK-FUSIBLE,2.0mm� X 160mm LONG (GY)

2203632

$35.99

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

LABEL, FUSE BOX

7184022

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP, ROUTING

7082020

$5.59

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.99

9

BREAKER-CIRCUIT,25 AMP

4015771

$63.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

GROMMET

5813954

$7.19

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED, PANEL MOUNT

2413217

$51.99

14

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

15

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

17

COIL-EFI

4010425

Unavailable

18

JUMPER,COIL GROUND

4014422

$27.99

19

BRKT-COIL MOUNT

5260553

$14.39

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

22

HARNESS-CHASSIS,ADAPTER,ACCY

2413521

$23.99

23

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

24

NUT-M6 FLANGE,NYLOC

7547274

$1.49

25

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

27

NUTS-KEPS,10-32

7547341

$1.49

28

ECM-NO START,ME17

4014125

$694.99

29

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

30

HARNESS-BOX

2413051

$51.99
