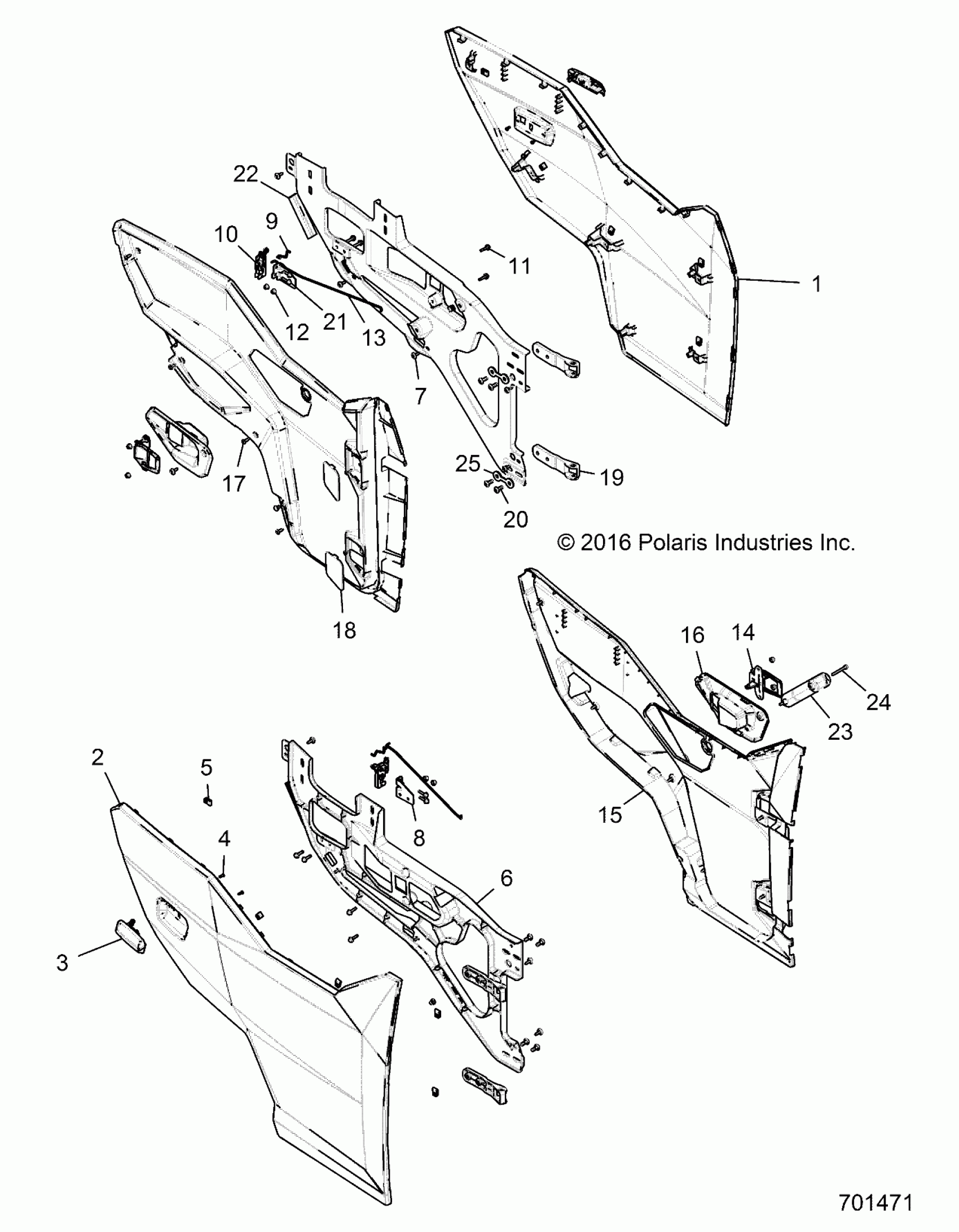

Polaris GENERAL 1000 EPS (R28) - R16RGE99A7/AE/AV BODY, DOORS - R16RGE99A7/AE/AV (701471) Diagram

#

Description
Price

1

PANEL-DOOR,OUTER,LH,I.RED [A7] [SUBS TO 5453818-293, REQUIRES INNER PANEL PN 5453822-070]

5452092-293

Unavailable

1

PANEL-DOOR,OUTER,PNT,LH,CR.BLK [AE]

5452448-266

Unavailable

1

PANEL-DOOR,OUTER,PNT,LH,V.BLUE [AV]

5452448-689

Unavailable

2

PANEL-DOOR,OUTER,RH,I.RED [A7]

5452093-293

Unavailable

2

PANEL-DOOR,OUTER,PNT,RH,CR.BLK [AE]

5452449-266

Unavailable

2

PANEL-DOOR,OUTER,PNT,RH,V.BLUE [AV]

5452449-689

Unavailable

3

ASM-HANDLE,DOOR,RELEASE,LH,OTR

7082008

$27.99

3

ASM-HANDLE,DOOR,RELEASE,RH,OTR

7082017

$27.99

4

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

5

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

6

FRAME-DOOR,CAST,LH [TO 4/8/16]

5633422

Unavailable

6

FRAME-DOOR,CAST,RH [TO 4/8/16]

5633423

Unavailable

6

FRAME-DOOR,CAST,LH [FROM 4/8/16]

5633704

Unavailable

6

FRAME-DOOR,CAST,RH [FROM 4/8/16]

5633705

Unavailable

7

SCR-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

8

BRKT-DOOR LATCH MNT,LH [IF BUILT BEFORE 11/6/15 AND AFTER 1/31/16]

5261425

$10.39

8

BRKT-DOOR LATCH MNT,RH [IF BUILT BEFORE 11/6/15 AND AFTER 1/31/16]

5261426

$10.39

8

BRKT-DOOR LATCH,LH,ECOAT [IF BUILT 11/7/15 - 1/30/16]

5262827-329

Unavailable

8

BRKT-DOOR LATCH,RH,ECOAT [IF BUILT 11/7/15 - 1/30/16]

5262828-329

Unavailable

9

ROD-LATCH,LH

5338879

$11.43

9

ROD-LATCH,RH

5338880

$13.19

10

ASM-LATCH,ROTARY,LH

7082103

$51.99

10

ASM-LATCH,ROTARY,RH

7082104

$51.99

11

SCR-HXFL-M6X1.0X25 8.8 RIE [TO 4/25/16]

7518576

$3.19

11

SCR-HXFL-M6X1.0X25 8.8 RIE [FROM 4/25/16]

7518576

$3.19

12

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

13

ROD-LATCH,DOOR,INNER,LH

5339134

$14.39

13

ROD-LATCH,DOOR,INNER,RH

5339135

$14.39

14

ASM-HANDLE,DOOR INNER [IF BUILT BEFORE 1/30/16]

7082081

Unavailable

14

ASM-HANDLE,DOOR INNER [IF BUILT AFTER 1/31/16]

7082216

$39.99

15

PANEL-DOOR,INNER,LH,BLK [TO 2/26/16]

5452094-070

Unavailable

15

PANEL-DOOR,INNER,RH,BLK [TO 2/26/16]

5452095-070

Unavailable

15

PANEL-DOOR,INNER,LH,BLK [FROM 2/27/16]

5453497-070

Unavailable

15

PANEL-DOOR,INNER,RH,BLK [FROM 2/27/16]

5453498-070

Unavailable

16

TRIM-DOOR,INNER,LH,BLK

5452290-070

$27.99

16

TRIM-DOOR,INNER,RH,BLK

5452291-070

$27.99

17

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

18

COVER-DOOR HINGE MOUNT

5452517-070

$5.59

19

HINGE-DOOR CAST,BLK [IF BUILT BEFORE 12/14/15]

5633461-329

$40.46

19

HINGE-DOOR CAST,BLK [IF BUILT AFTER 12/15/15][TO 8/3/16]

5633642-329

$39.99

19

BRKT-DOOR FRONT HINGE,BLK [FROM 8/3/16]

5263231-329

Unavailable

20

SCR-TXTH-M8X1.25X20 8.8 ZOD

7518576

$3.19

21

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

22

SEAL-DOOR [IF BUILT BEFORE 11/6/15]

5510789

Unavailable

22

SEAL-DOOR [IF BUILT AFTER 11/7/15]

5510895

Unavailable

23

DOOR-GRAB HANDLE,RH,BLK

5452904-070

$31.99

23

HANDLE-DOOR,INNER,BLK [IF BUILT BEFORE 1/30/16]

5452292-070

Unavailable

24

SCR-SH-M6X1.0X50 8.8 ZPC [IF BUILT BEFORE 12/7/15]

7518348

Unavailable

24

SCR-SH-M6X1.0X50 8.8 RIE [IF BUILT AFTER 12/8/15]

7520482

$3.99

25

BRKT-DOOR CLAMP ECOAT

5262743-329

$11.19
