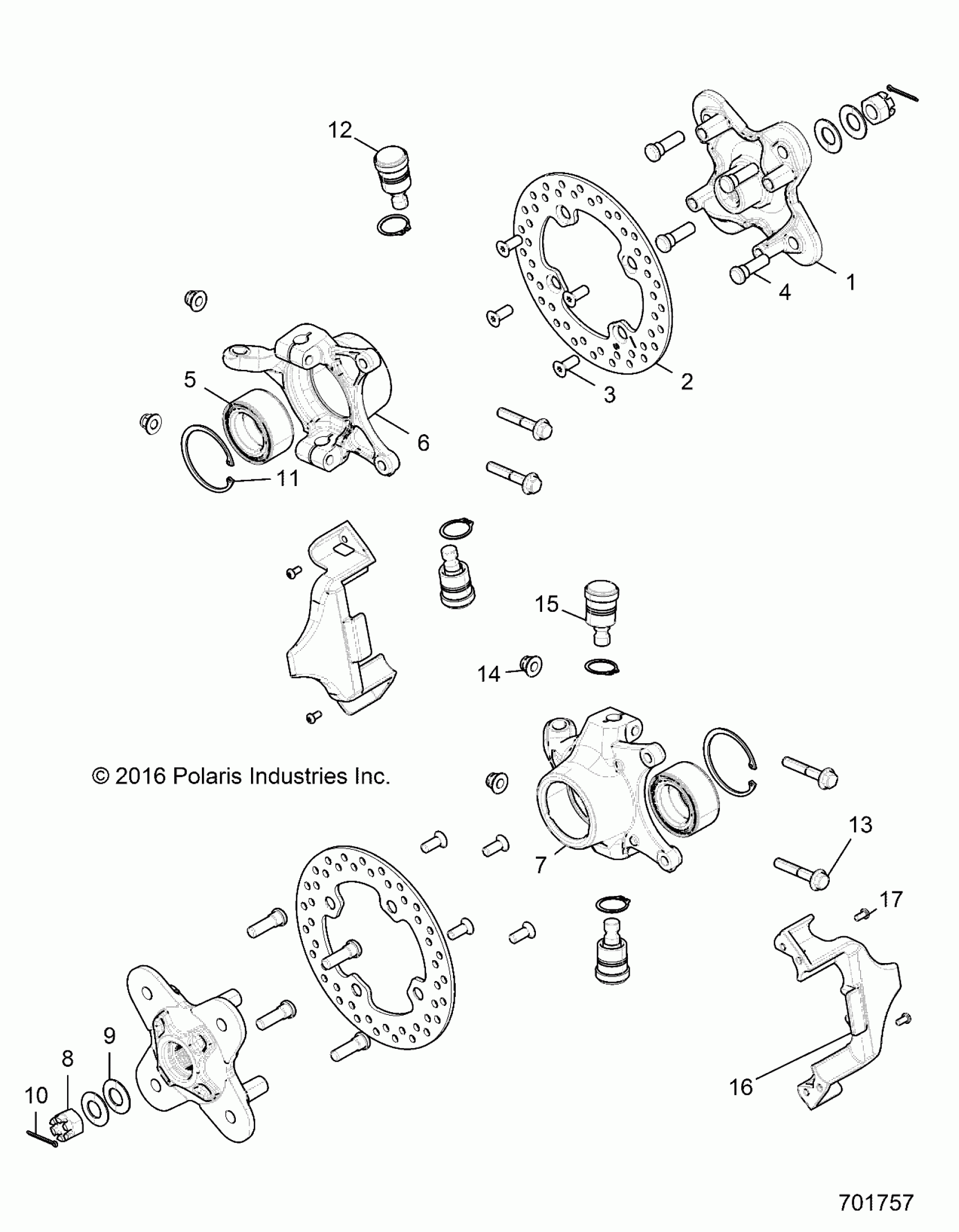

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK SUSPENSION, FRONT HUB - R17RGE99A7/A9/AW/AM/KAK (701757) Diagram

HUB-WHEEL,MACH,BLK

5139978-458

Unavailable

ROTOR,BRAKE

5263266

$67.99

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

STUD-WHEEL,M12-1.5

7519753

$4.79

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH(MACH) [TO 6/3/2018]

5139093

Unavailable

CARRIER-BEARING,WHEEL,LH(MACH) [FROM 6/3/2018]

5142570

$83.99

CARRIER-BEARING,WHEEL,RH(MACH) [TO 6/3/2018]

5139094

Unavailable

CARRIER-BEARING,WHEEL,RH(MACH) [FROM 6/3/2018]

5142571

Unavailable

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

BALL-JOINT,10MM STUD

7081924

Unavailable

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

SHIELD-CV,FRONT,BLK

5452041-070

$12.79

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99
