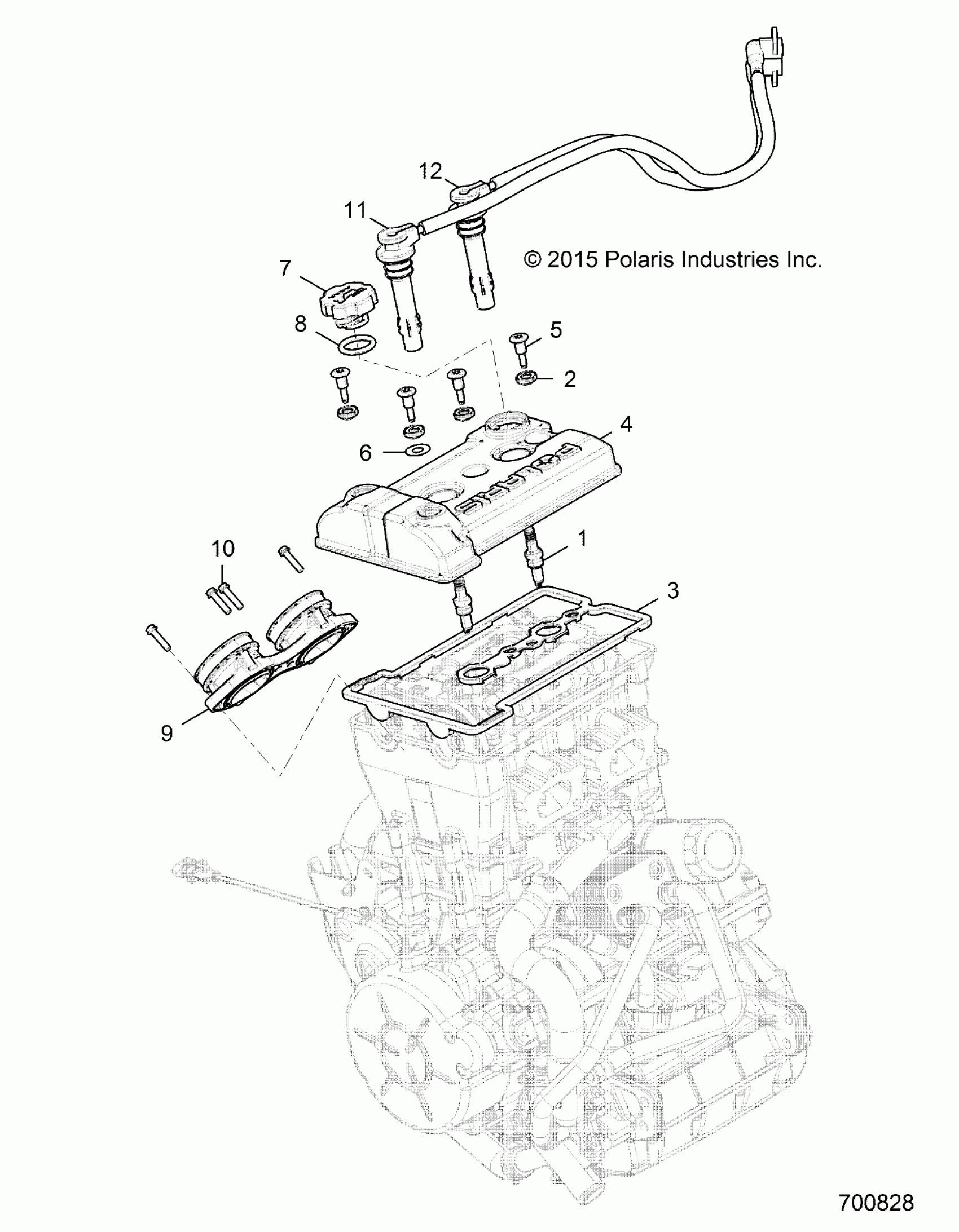

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK ENGINE, THROTTLE BODY AND VALVE COVER - R17RGE99A7/A9/AW/AM/KAK (700828) Diagram

#

Description
Price

1

SPARK PLUG-10 MM

3022662

$10.46

2

ISOLATOR-VALVE COVER

5413806

$8.08

3

SEAL-VALVE COVER,2CY,DOHC

5415011

$57.76

4

COVER, VALVE, CAST

5633264

$115.54

5

BOLT, SHOULDRER

7519165

$13.49

6

WASHER-GROUNDING

7556750

$3.97

7

ASM-OIL FILL CAP [INCL. 8]

1205012

$42.74

8

O-RING-FILL CAP

5414362

$3.63

9

ADAPTOR-THROTTLE BODY

1205213

$85.49

10

SCREW

7519297

$3.97

11

WIRE-SPARKPLUG,MAG,90DEG

4014032

$72.84

12

WIRE-SPARKPLUG,PTO,90DEG

4014033

$72.84
