- GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK
ENGINE, EXHAUST SYSTEM - R17RGE99A7/A9/AW/AM/KAK (701758)

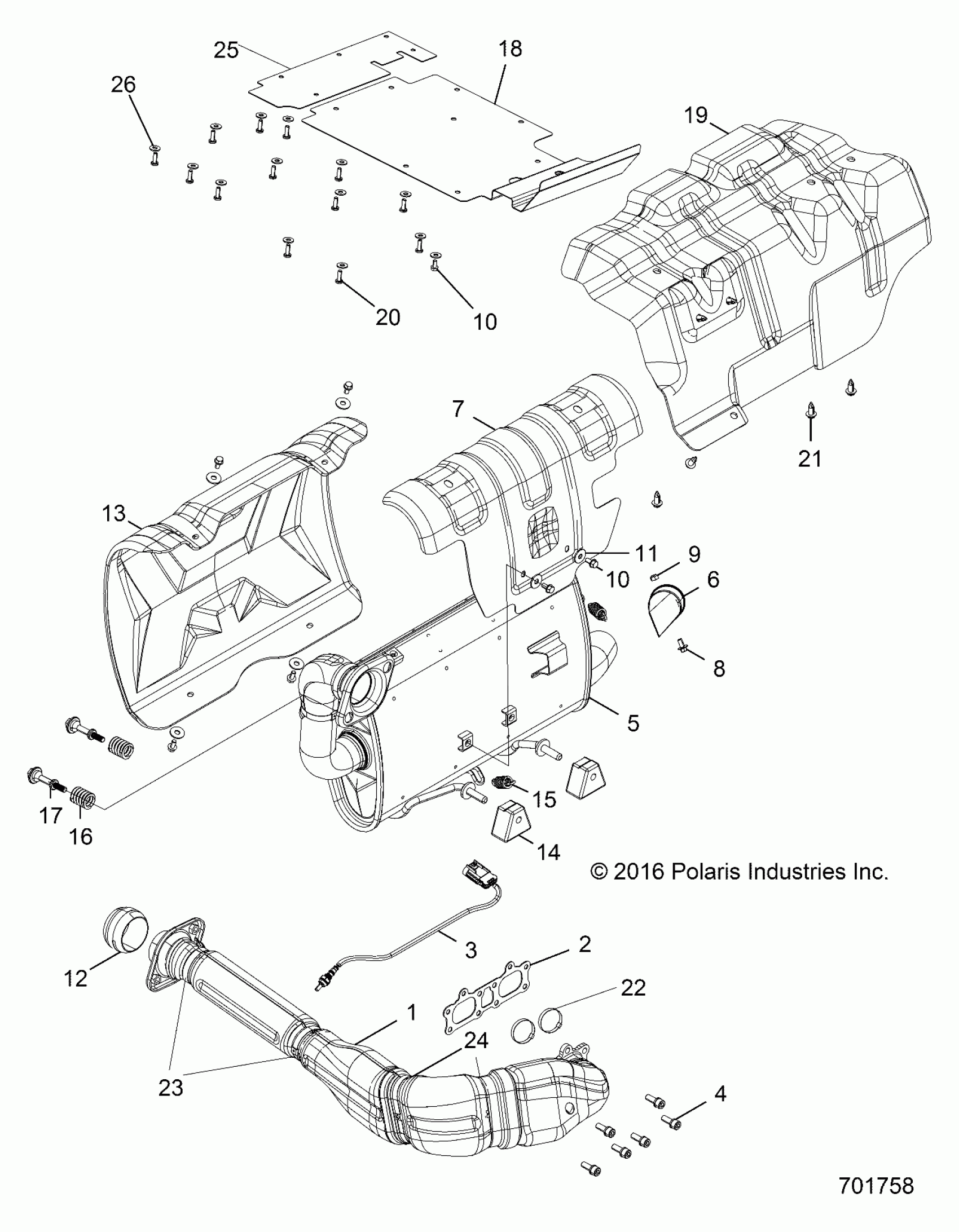

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK ENGINE, EXHAUST SYSTEM - R17RGE99A7/A9/AW/AM/KAK (701758) Diagram
#
Description
Price
1
ASM-HEADPIPE
1262674
$475.19
2
GASKET-EXHAUST SEAL
3610184
$48.56
3
SENSOR-OXYGEN
4016021
$159.99
4
SCR-M8X1.25X22,HX/SO
7518984
$7.99
5
ASM-SILENCER [INCL. 6-9, QTY 2 OF 10 &11]
1262670
$615.99
6
WELD-SPARK ARRESTOR,AVA875
1262123
$47.99
7
SHIELD-SILENCER
5260630
$75.99
8
SCR-HXFL-M6X1.0X12 10.9 ZPC
7517257
$9.59
9
NUT-HEX-M6X1.0 8 SPC
7547120
$4.79
10
SCR-1/4-20X1/2,TFM HW-M
7518490
$1.49
10
SCR-1/4-20X1/2,TFM HW-M
7518490
$1.49
11
WASHER-.312 X .734 X .065-Z
7558302
$1.59
12
GASKET-DOUBLE SPHERICAL,2"
3610248
$35.99
13
SHIELD-SILENCER,OUTER,BLK
5260918-458
$119.99
14
MNT-ISOLATOR
5450115
$14.39
15
SPRING-EXHAUST
7041804
$7.99
16
SPRING-SPHERICAL,EXHAUST
7044274
$14.39
17
STUD-SPHERICAL,EXHAUST
7520079
$13.59
18
SHIELD-BOX
5263933
$75.99
19
SHIELD-FOIL
5814260
$75.99
20
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$3.99
21
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
22
CLAMP-HEAT SHIELD,EXHAUST
7081156
$7.19
23
CLAMP, HEAT SHIELD,EXHAUST
7081579
$7.19
24
CLAMP-HEAT SHIELD,EXHAUST
7081915
$7.19
25
SHIELD-BOX REAR
5263934
$19.99
26
WASHER-.312 X .734 X .065-Z
7558302
$1.59
