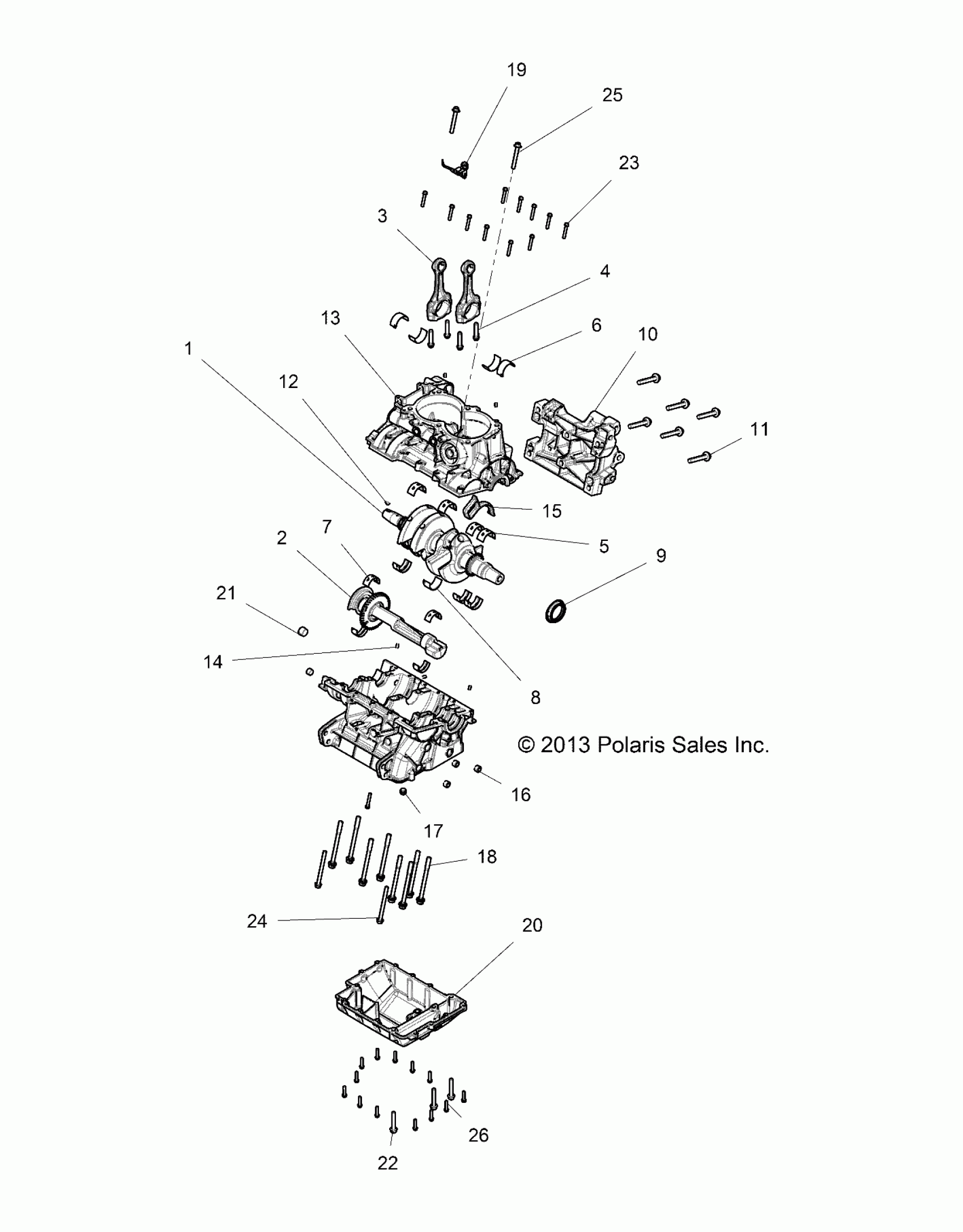

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK ENGINE, CRANKCASE AND CRANKSHAFT - R17RGE99A7/A9/AW/AM/KAK (49RGRCRANKCASE14RZR1000) Diagram

#

Description
Price

1

ASM-CRANKSHAFT,MACH [TO 4/1/2017]

1204832

Unavailable

1

ASM-CRANKSHAFT [FROM 4/1/2017]

3023103

$1,060.39

2

ASM-BALANCE SHAFT

1204835

$343.99

3

ASM., CONNECTING ROD [INCL. 4]

3023077

$194.99

4

SCREW

7519310

Unavailable

5

BEARING, MAIN, WHITE

3514662-001

$9.59

5

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

5

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

5

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

5

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

6

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.79

6

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.79

6

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.79

6

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.79

7

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

8

BEARING-MAIN,CNTR,LWR BLU

3514803-002

$11.99

8

BEARING-MAIN,CNTR,LWR,GREEN

3514803-003

$11.99

8

BEARING-MAIN,CNTR,LWR,YELLOW

3514803-004

$11.99

9

SEAL, FLANGE

3610176

$31.99

10

BRKT-TRANSJOINT,MACH

5137795

Unavailable

11

BOLT

7520467

$4.79

12

KEY-WOODRUFF,4X5

7721122

$7.84

13

KIT, CRANKCASE [INCL. 14-19]

2206114

Unavailable

14

PIN-DOWEL,M6X10

5136879

Unavailable

15

DIVERTER, OIL DRAIN

5452616

$20.22

16

PLUG

7052413

$3.99

17

PLUG

7518835

$5.59

18

SCREW

7519141

Unavailable

19

JET, PISTON

3022856

$48.40

20

COVER, SUMP

5137873

Unavailable

21

PLUG

7051520

$8.79

22

SCREW

7517793

$5.59

23

SCREW

7518578

$3.99

24

SCREW

7519154

$7.19

25

SCREW

7519186

$6.53

26

SCREW

7519297

$3.99
