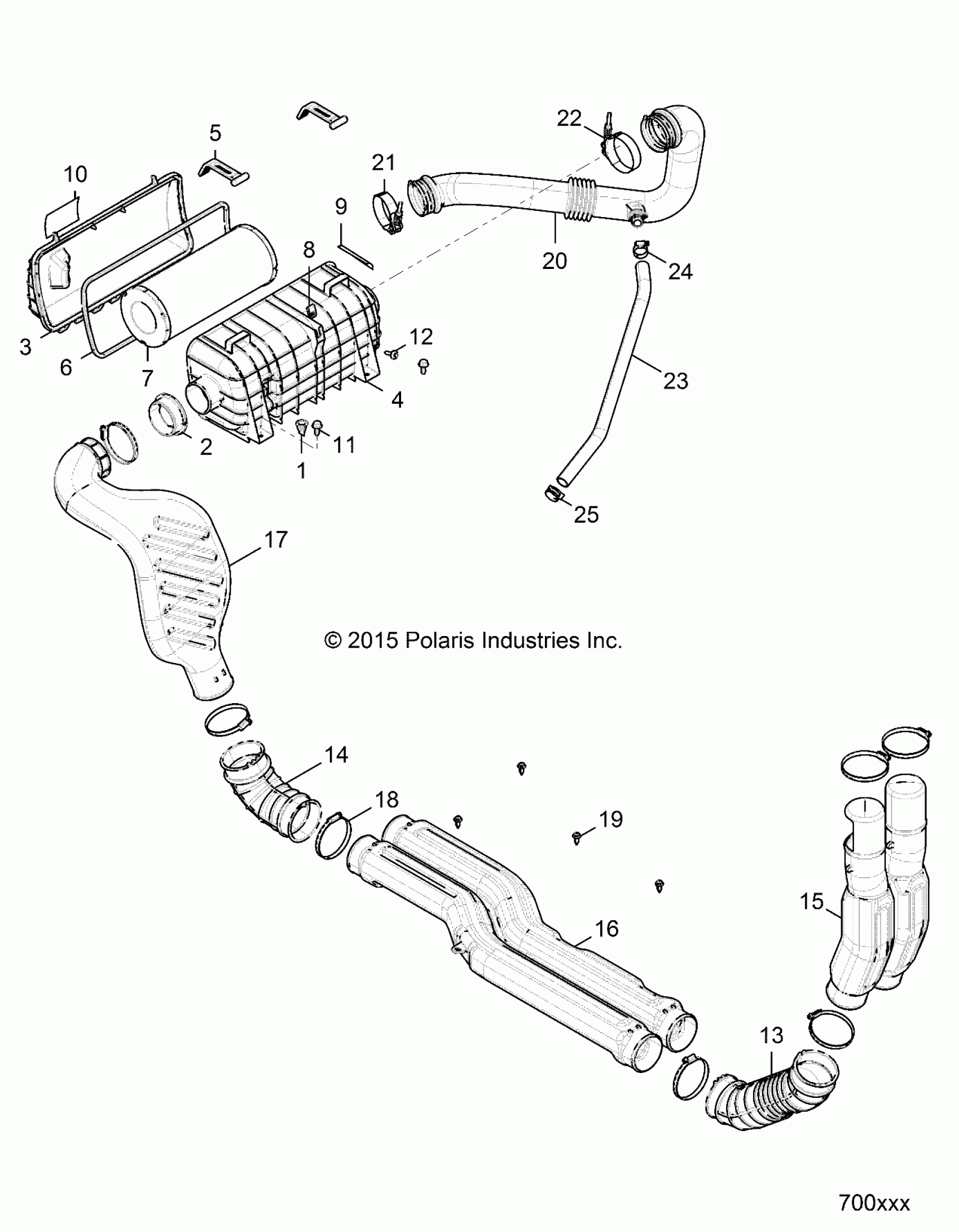

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK ENGINE, AIR INTAKE SYSTEM - R17RGE99A7/A9/AW/AM/KAK (700825) Diagram

#

Description
Price

1

PLUG-DRAIN

5414472

$5.59

2

SEAL-INTAKE,AIRBOX

5415155

$5.59

3

COVER-AIRBOX

5451097

$51.99

4

AIRBOX

5451098

$135.99

5

STRAP-AIRBOX

5451099

$4.79

6

SEAL-AIRBOX

5814054

Unavailable

7

FILTER-AIR [STD]

7082115

$35.99

7

K-FILTER-AIR,PERF,RZX [OPT]

2881063

Unavailable

8

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

9

DECAL-INTAKE DUCT

7182087

$27.99

10

DECAL-CAUT.AIR BOX

7182652

Unavailable

11

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

12

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

13

HOSE-INTAKE,DUCT

5415468

$43.99

14

HOSE-INTAKE,DUCT

5415469

$27.99

15

DUCT-INTAKE,FRONT

5452087

$59.99

16

DUCT-INTAKE,FLOOR

5452088

$59.99

17

DUCT-INTAKE,AIRBOX IN

5452089

$51.99

18

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

20

ASM-INTAKE DUCT [INCL. 21-22]

1240946

$159.99

21

CLAMP-HOSE T-BOLT,66.4 DIA

7081979

$35.99

22

CLAMP-HOSE T-BOLT,72 DIA

7082128

$31.99

23

HOSE-VENT,ENGINE

5415455

Unavailable

24

CLAMP-HOSE WORM GEAR 1.25

7080614

$7.19

25

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19
