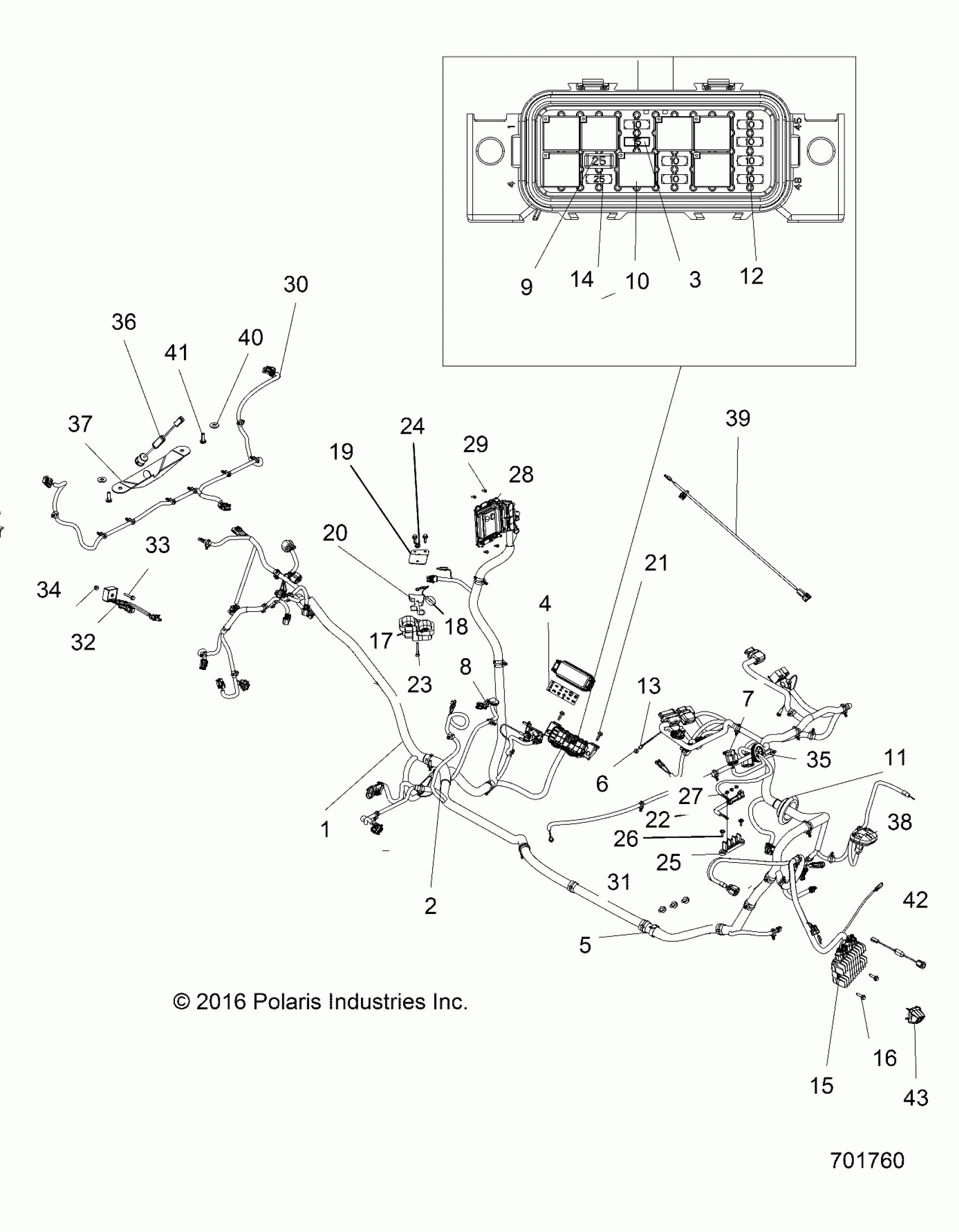

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK ELECTRICAL, WIRE HARNESS - R17RGK99AK (701760) Diagram

#

Description
Price

1

HARNESS-CHASSIS,7" DISPLAY [INCL 2-14][KAK]

2413527

Unavailable

2

LINK-FUSIBLE,2.0mm� X 160mm LONG (GY)

2203632

$48.40

3

FUSE-MINI BLADE,15 AMP

2410280

$8.08

4

LABEL, FUSE BOX

7184022

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP, ROUTING

7082020

$5.56

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.97

9

BREAKER-CIRCUIT,25 AMP

4015771

$68.79

10

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

11

GROMMET

5813954

$8.99

12

FUSE-IGNITION,10 AMP

2434016

$5.65

13

LED, PANEL MOUNT

2413217

$52.60

14

FUSE-25A,MINI BLADE

4011653

$8.89

15

REGULATOR-3PH,50A,SERIES,HISPD

4014856

$156.74

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

17

COIL-EFI

4010425

$242.84

18

JUMPER,COIL GROUND

4014422

$32.37

19

BRKT-COIL MOUNT

5260553

$14.56

20

SPACER-COIL MOUNT

5436577

$3.97

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

HARNESS-CHASSIS,ADAPTER,ACCY

2413521

$34.99

23

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.97

24

NUT-M6 FLANGE,NYLOC

7547274

$1.19

25

BLOCK-TERMINAL,6 POS

4016007

$44.99

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

27

NUTS-KEPS,10-32

7547341

$0.79

28

ECM-NO START,ME17

4014125

$749.99

29

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.17

30

HARNESS-CHASSIS,ADAPTER,ACCY

2413521

$34.99

31

SCREW

7519145

$3.97

32

RELAY, SOLID STATE,9A,LONG LD

4012829

$94.99

33

SCREW

7519257

$3.97

34

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

35

GROMMET-ELECTRICAL,CAB

5414440

$7.14

36

CAMERA-FRONT,WIDE ANGLE

4016639

Unavailable

37

MOUNT-FRONT,CAMERA,GENERAL,BLK

5454204-070

$14.56

38

GPS-ANTENNA,RECEIVER,CAN

4014811

$436.99

39

HARNESS-TEMP SENSOR

2413743

$74.99

40

WASHER-.312 X .734 X .065-Z

7558302

$1.59

41

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

42

CAM-MIRROR,CAMERA,APX

4015873

$264.99

43

BRKT-CAMERA MOUNT,BLK

5263045-458

$49.99
