Description

Price

1

ASM-GEARCASE,SPOOL [INCL. ALL]

1333435

Unavailable

1

ASM-GEARCASE [OPTIONAL MY19 DIFF, REQUIRES USE OF QTY.2 1334076 & 5415584]

1334123

Unavailable

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW,TORX PAN HD M6X1X16

3234309

$7.19

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

6

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

7

SCREW, CAP HH M8-1.25 X 25

3235096

Unavailable

8

SCREW HEX FLANGE M8 X 50

3235207

$10.39

9

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

3235208

$11.19

10

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

10

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

11

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.99

12

WASHER-CUP

3234091

$9.59

12

WASHER-CUP

3234091

$9.59

13

WASHER 32.3 X 42 X 1.5

3235211

$10.39

13

WASHER 32.3 X 42 X 1.5

3235211

$10.39

13

WASHER 32.3 X 42 X 1.5

3235211

$10.39

14

WASHER 35.6 X 50 X 1.5

3235212

$13.59

15

WASHER 17.3 X 25 X 1.5

3235213

$15.99

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

PIN, SPRING SLOTTED 6 X 12

7043746

$7.19

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

19

RING SNAP

3233834

$10.39

20

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

21

RING, RETAINING EXTERNAL SHR-66

3234318

$3.19

22

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING, RETAINING

3234205

$11.19

24

RING, RETAINING

3234205

$11.19

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING, RETAINING VSH-237

3235216

$10.39

27

SHAFT, INPUT 42T/20T/25T

3235754

$215.99

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

30

SHIM 1.180 OD X .995 ID

3234272

$31.99

31

SHIM 2.040 OD X 1.63 ID

3234273

$12.79

32

BEARING, NEEDLE

3233014

$43.99

32

BEARING, NEEDLE

3233014

$43.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$31.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

37

BEARING, NEEDLE CAGE ASSY

3233384

$31.99

38

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.99

38

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.99

39

BEARING, PLAIN 10X12X25

3234239

$15.99

40

PLAIN, BEARING 40X44X15

3234241

$15.99

40

PLAIN, BEARING 40X44X15

3234241

$15.99

40

PLAIN, BEARING 40X44X15

3234241

$15.99

41

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

41

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

42

SPRING, COMPRESSION .360 OD X 1.063

3234578

$12.79

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

44

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

44

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

45

SPRING, TORSION RETURN

3234276

$7.99

46

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

47

SPRING, WASHER

3235327

$9.59

48

TUBE, SNORKEL MACH

3234278

$95.99

49

DRUM, SHIFT MACH

3235984

$263.99

50

GEAR, SECTOR 16T

3233839

$31.99

51

GEAR-SECTOR,31T

3233832

$31.99

52

STAR, DETENT

3235982

$31.99

53

FORK, PIVOT SHIFT REAR DIFF

3235455

$87.99

54

PLATE, PARK 12-FACE

3235456

$35.99

55

SHAFT, IDLER 29T

3235223

$107.99

56

SHAFT, REVERSE 29T

3235224

$143.99

57

SHAFT, FRONT OUTPUT

3235394

$131.99

58

BELLCRANK APEX

3235581

$39.99

59

COLLAR-SHIFT

3234073

$31.99

60

TUBE, VENT 90 -1/4" HOSE

3234230

$9.59

61

DOG, ENGAGEMENT

3234928

$67.99

62

GEAR-44T,STAGE2

3235229

$87.99

63

GEAR, LOW 67T

3235232

$115.99

64

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

65

GEAR, 46T STAGE 3

3235236

$103.99

66

GEAR, 13T SNORKEL

3235237

$123.99

67

SHAFT-SHIFT(352973)

3235238

$37.61

68

GEAR, 53T

3235234

$79.99

69

SHIFT DOG, PARK

3235457

$135.99

70

RAIL, SHIFT SHAFT

3235542

$27.99

71

SPROCKET 48T 6-FACE

3235755

$79.99

72

WELDMENT REAR MOUNT BRACKET

3235399

$47.99

73

GEAR SUBASSEMBLY

3234469

$67.99

74

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$107.99

75

SUBASSEMBLY, AVALANCHE DIFFERENTIAL

3235373

$431.19

76

SUBASSEMBLY DIFFERENTIAL COVER

3235376

$131.99

77

SUBASSEMBLY 39T SIDE GEAR

3235374

$179.99

78

SUBASSEMBLY 39T SIDE GEAR DISCONNECT

3235375

$179.99

79

SUBASM.,SHAFT

3235336

$355.99

80

SUBASSEMBLY GEAR, 53T

3235378

$379.99

81

SUBASSEMBLY, LH CASE

3235757

$405.59

82

SUBASSEMBLY SHIFT FORK

3235920

$71.99

82

SUBASSEMBLY SHIFT FORK

3235920

$71.99

83

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$31.99

84

SUBASSEMBLY, RH COVER

3235995

$405.59

85

RETAINER-FORK

3234934

$10.39

86

COVER-BEARING,CNTR DR.

3235241

$43.99

87

BRACKET WIRE HARNESS

3235350

$8.79

88

BRACKET, REAR MOUNT

3235398

$67.99

89

PLUG,EXPANSION,1 1/4

3234249

$13.59

89

PLUG,EXPANSION,1 1/4

3234249

$13.59

90

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

91

SWITCH, ROTARY 2 PIN RESISTIVE

7662299

$111.99

92

SOLENOID

3235478

$275.99

93

SENSOR-SPEED,TRANS

4013908

Unavailable

94

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3235658

$55.99

95

SEAL, TRIPLE LIP VITON HELIX 30 X 47

3235495

$39.99

96

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

96

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

97

O-RING

3234302

$7.19

98

O-RING, -012 VITON

3233836

$6.87

99

O-RING, -014 VITON

3233828

$6.79

100

PARK CAM

3235983

$151.99

101

SPRING TORSION

3235885

$19.99

102

SPACER

3235883

$23.99

103

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

104

BEARING

3233020

$47.99

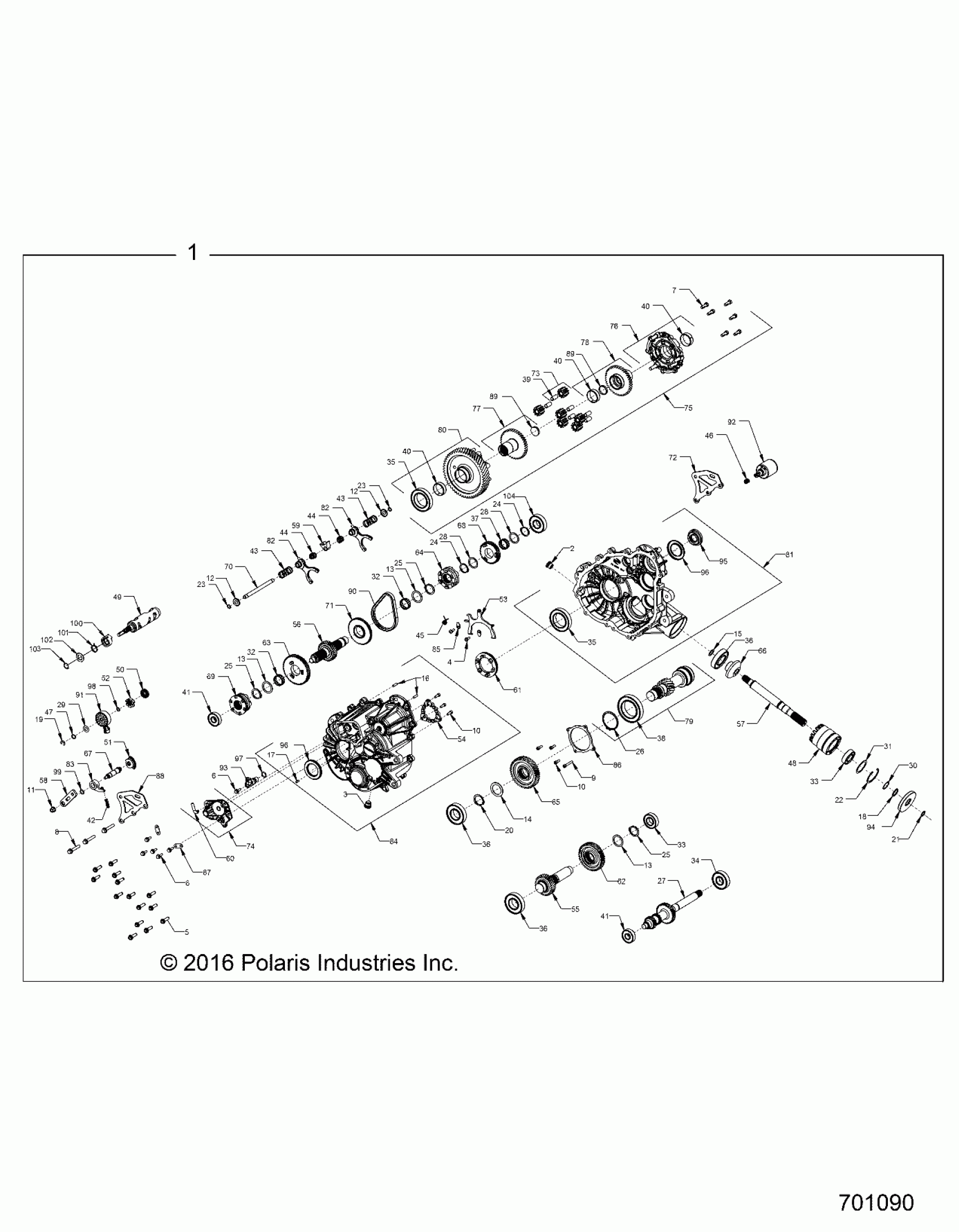

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK DRIVE TRAIN, MAIN GEARCASE INTERNALS - R17RGE99A7/A9/AW/AM/KAK (701090) Diagram

ASM-GEARCASE,SPOOL [INCL. ALL]

ASM-GEARCASE [OPTIONAL MY19 DIFF, REQUIRES USE OF QTY.2 1334076 & 5415584]

PLUG, M18 X 1.5

PLUG, M18 X 1.5 MAGNETIC

SCREW,TORX PAN HD M6X1X16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, CAP HH M8-1.25 X 25

SCREW HEX FLANGE M8 X 50

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 35.6 X 50 X 1.5

WASHER 17.3 X 25 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING SLOTTED 6 X 12

RING,RETAINING BASIC,EXTERNAL 0.984

RING SNAP

RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING EXTERNAL SHR-66

RING,RETAINING BASIC,INTERNAL 2.047

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING

RING, RETAINING

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING, RETAINING VSH-237

SHAFT, INPUT 42T/20T/25T

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SHIM 1.180 OD X .995 ID

SHIM 2.040 OD X 1.63 ID

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL 6206RSH2 STD 30X62X16

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING, NEEDLE CAGE ASSY

BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, PLAIN 10X12X25

PLAIN, BEARING 40X44X15

PLAIN, BEARING 40X44X15

PLAIN, BEARING 40X44X15

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6303 17 X 47 X 14

SPRING, COMPRESSION .360 OD X 1.063

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION .46 I.D. X .73

SPRING, COMPRESSION .46 I.D. X .73

SPRING, TORSION RETURN

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

SPRING, WASHER

TUBE, SNORKEL MACH

DRUM, SHIFT MACH

GEAR, SECTOR 16T

GEAR-SECTOR,31T

STAR, DETENT

FORK, PIVOT SHIFT REAR DIFF

PLATE, PARK 12-FACE

SHAFT, IDLER 29T

SHAFT, REVERSE 29T

SHAFT, FRONT OUTPUT

BELLCRANK APEX
