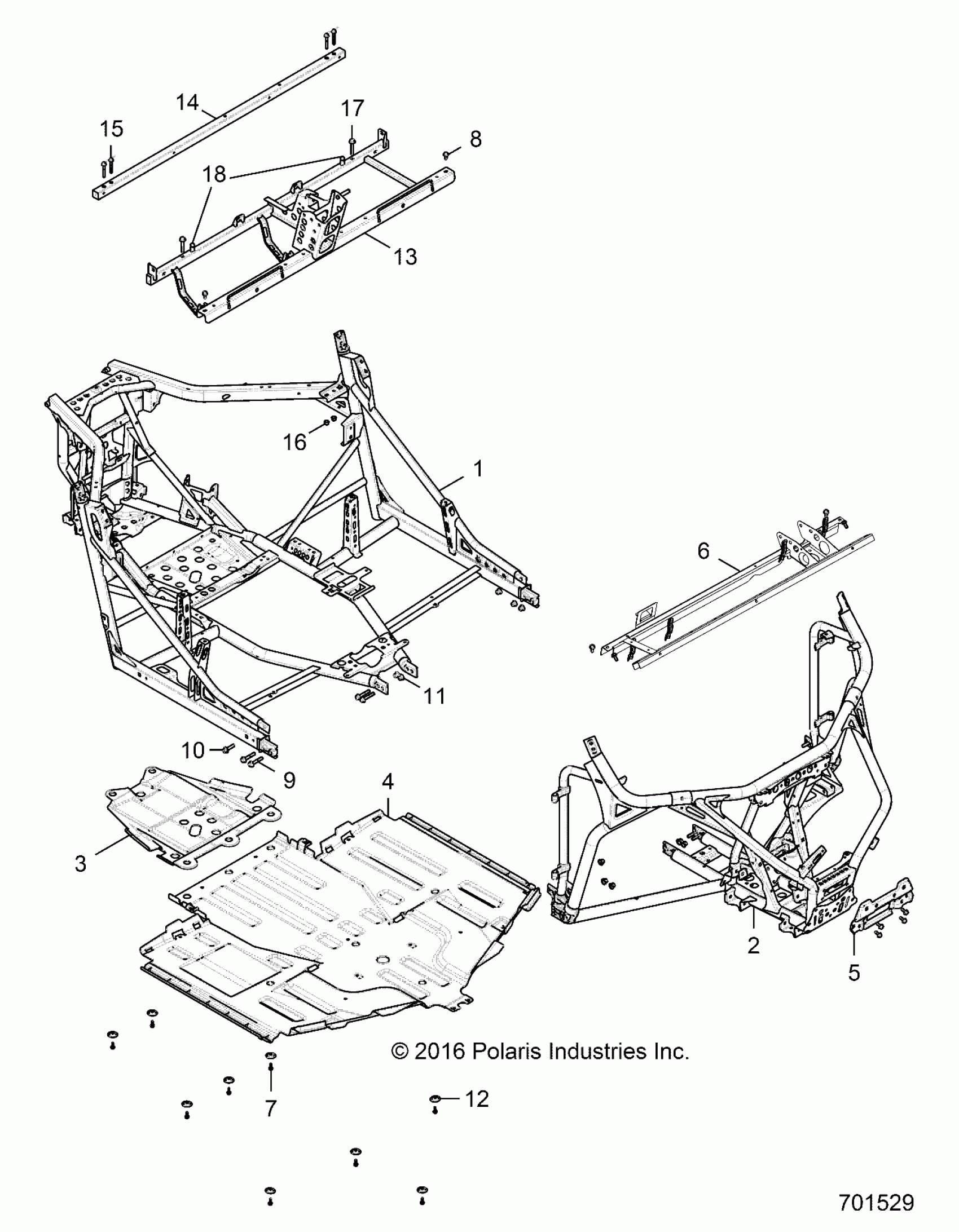

Polaris GENERAL 1000 EPS (R23) - R17RGE99A7/A9/AW/AM/KAK CHASSIS, MAIN FRAME AND SKID PLATES - R17RGE99A7/A9/AW/AM/KAK (701529) Diagram

#

Description
Price

1

WELD-MAIN FRAME,M.BLK

1019674-458

$2,041.59

2

WELD-FRAME,FRONT,2 PC,BLK

1021696-458

Unavailable

3

PLATE-SKID,REAR,BLK

5450706-070

Unavailable

4

PLATE-SKID,BLK

5452060-070

$131.99

5

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

6

WELD-DASH,E-COAT

1021251-329

$179.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

BOLT

7518555

$2.39

9

SCREW

7519285

$2.39

10

SCREW

7519332

$5.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

WASHER-SKID PLATE

7556065

$4.79

13

WELD-SEAT BASE,E-COAT

1021254-329

$319.99

14

ASM-TUBE,TOP FRAME,E-COAT

1021252-329

Unavailable

15

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

BOLT

7518474

$4.79

18

PLUNGER-LATCH,SEAT

5632848

$13.59
