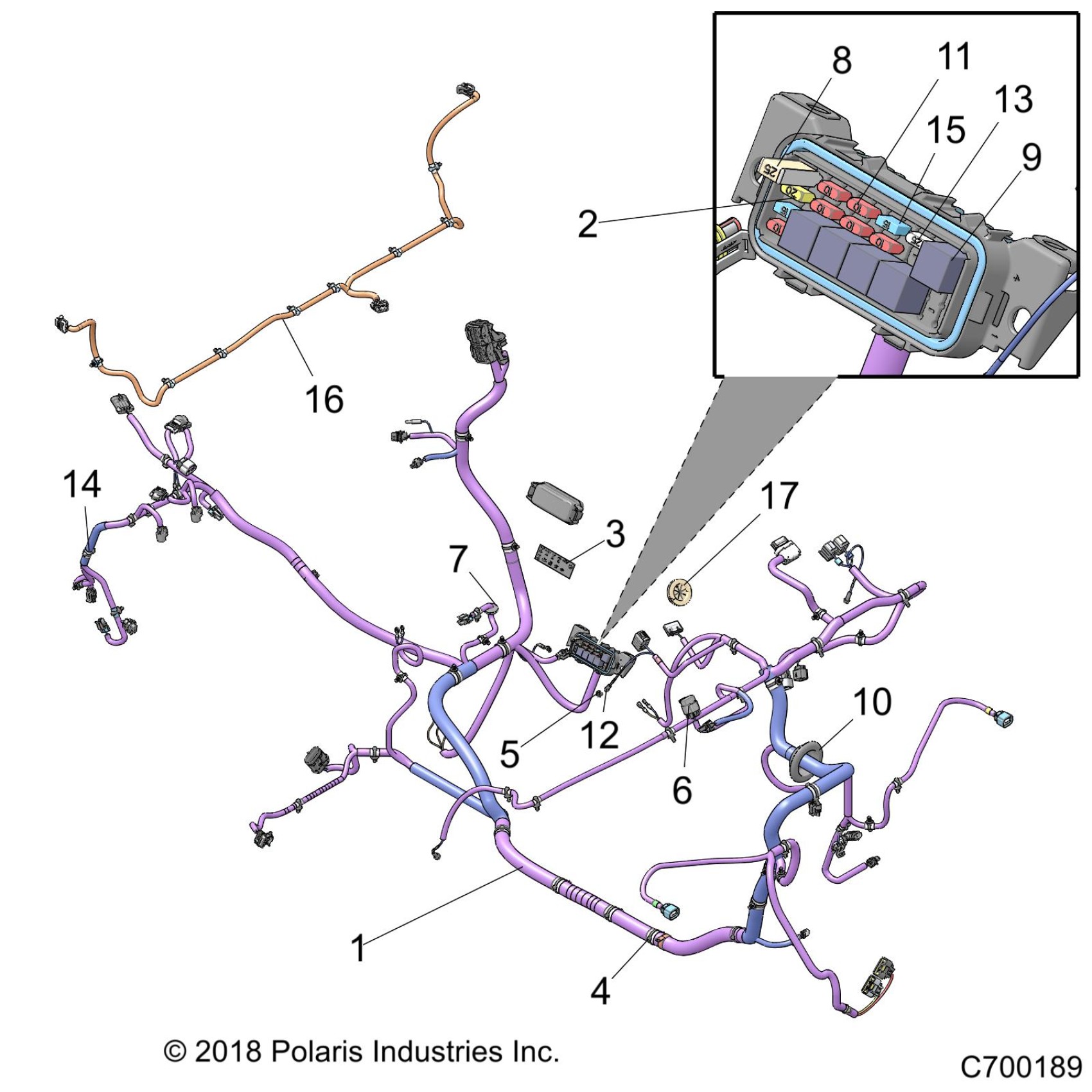

Polaris GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK ELECTRICAL, WIRE HARNESS - R19RGE99AR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL (C700189) Diagram

#

Description
Price

1

HARNESS-CHASSIS,W/WINCH,DRIVE [INCL 2-17]

2414379

$1,599.99

2

FUSE-PARK,20 AMP

2434017

$8.08

3

LABEL, FUSE BOX

7188341

Unavailable

4

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

5

CLIP, ROUTING

7082020

$5.56

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

7

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.97

8

BREAKER-CIRCUIT,25 AMP

4015771

$68.79

9

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

10

GROMMET

5813954

$8.99

11

FUSE-IGNITION,10 AMP

2434016

$5.65

12

LED, PANEL MOUNT

2413217

$52.60

13

FUSE-MINI BLADE,15 AMP

2410280

$8.08

14

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

15

FUSE-25A,MINI BLADE

4011653

$8.89

16

HARNESS-BOX

2413051

$67.76

17

GROMMET-ELECTRICAL,CAB

5414440

$7.14
