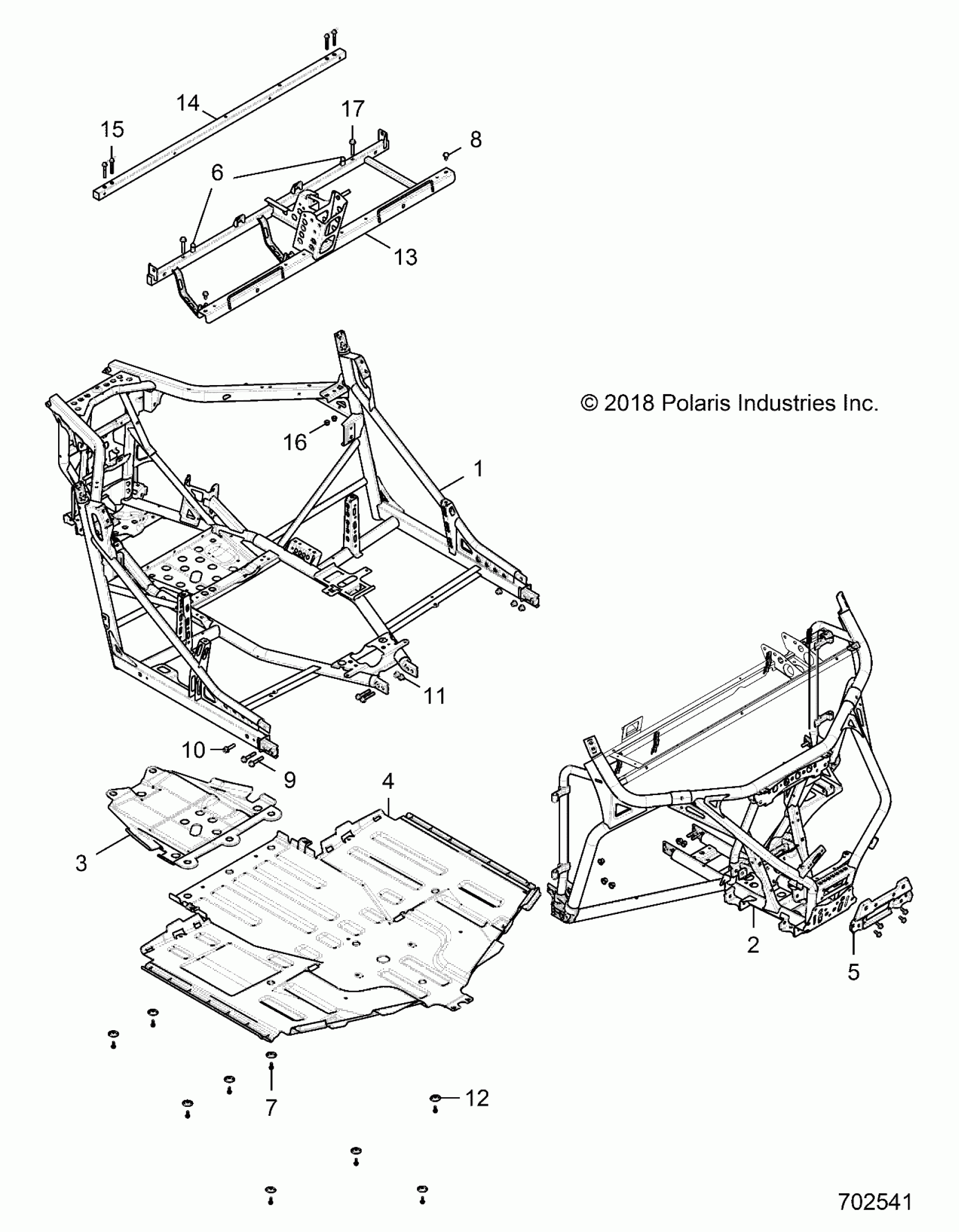

Polaris GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK CHASSIS, MAIN FRAME AND SKID PLATES - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK (702541) Diagram

Description

Price

WELD-MAIN FRAME,BLK

1024119-458

$1,971.19

WELD-FRAME,FRONT,2 PC,BLK

1024255-458

$1,781.99

PLATE-SKID,REAR,BLK

5450706-070

Unavailable

PLATE-SKID,BLK

5452060-070

$131.99

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

PLUNGER-LATCH,SEAT

5632848

$13.59

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BOLT

7518555

$2.39

SCREW

7519285

$2.39

SCREW

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

WELD-SEAT BASE,E-COAT

1021254-329

$319.99

ASM-TUBE,TOP FRAME,E-COAT

1022891-329

$87.99

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BOLT

7518474

$4.79
