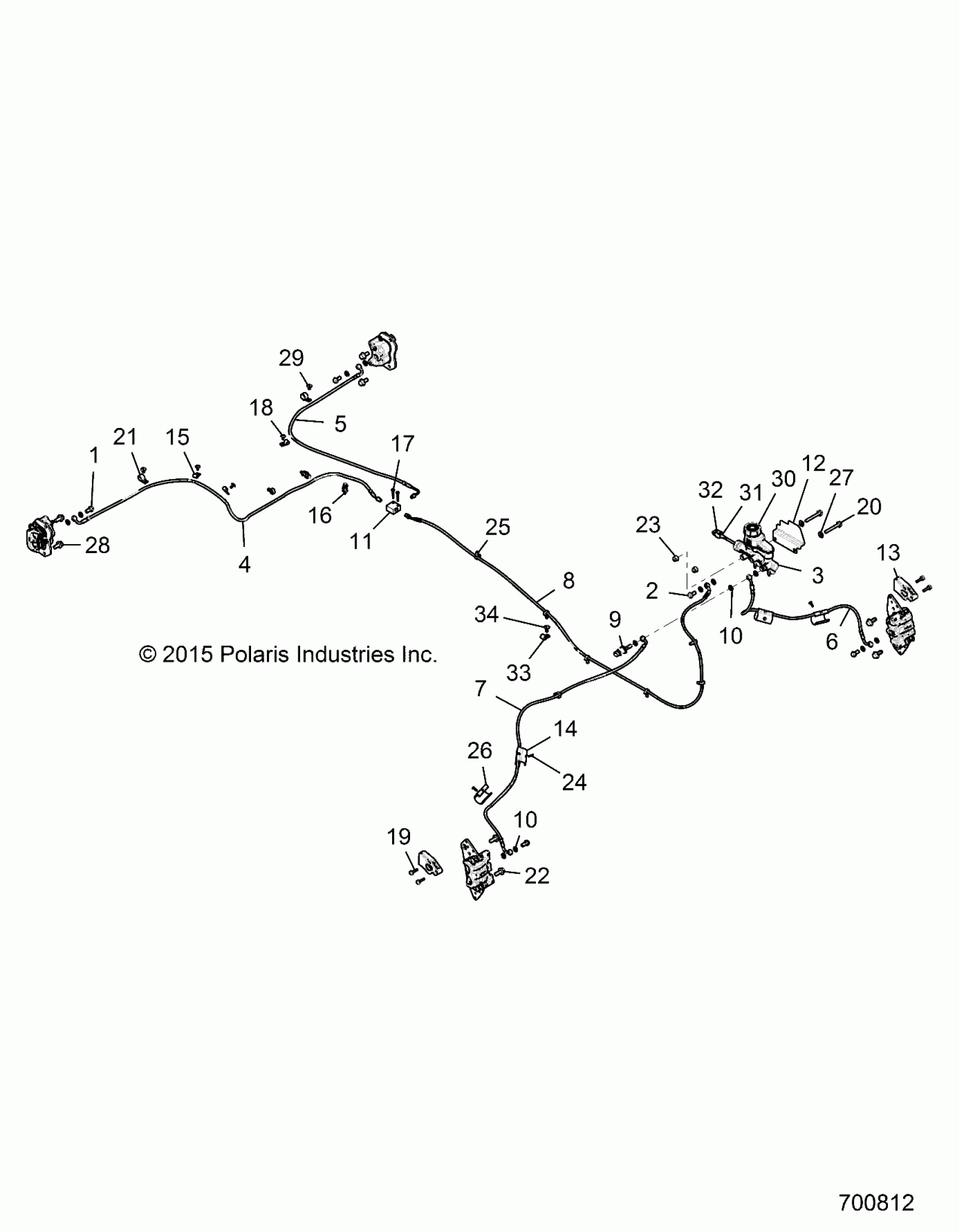

Polaris GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK BRAKES, BRAKE LINES AND MASTER CYLINDER - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK (700812) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

3

ASM., TANDEM MASTER CYLINDER [INCL. 30-32]

1911982

$131.99

4

LINE-BRK,RR,55.1",90B,20F,35�G

1913004

$83.99

5

LINE-BRK,RL,40.2,90B,90F,346�G

1913005

$71.99

6

LINE-BRK,FL,31.3,90SB,20B,180G

1913006

$67.99

7

LINE-BRK,FR,46.1,90SB,70B,40G

1913007

$75.99

8

LINE-BRK,MCT,76.2,70B,20F,180G

1913008

$87.99

9

SWITCH-BRK,M10X1.25,DBL,SEALED

4014262

Unavailable

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

11

FITTING-TEE,BRAKE

7052293

$59.99

12

SHIELD, MASTER CYLINDER

5259049

$43.99

13

SCRAPER-BRAKE, FRONT

5634051

$14.39

14

CLIP, BRAKE LINE

5451487

$3.19

15

CLAMP, HOSET

7080683

$2.39

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

SCREW

7512025

$4.79

18

SCR-10-24X1/2,PHTXTRIRD,SEMS-Y

7512084

$1.49

19

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

20

SCREW

7519298

$3.99

21

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

22

BOLT, HEX FLANGE W/PATCH

7518760

$9.59

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

Rivet

7621323

$1.49

25

Clip

7670102

$2.39

26

CLIP, BRAKE LINE, INNER

5451488

$5.59

27

WASHER

7555954

$4.79

28

SCR-HXFL-M10X1.25X20 8.8 ZOD

7518558

$3.99

29

RIVET3/16(.063-.250)ST-ST-LF-B

7621472

$1.49

30

KIT-SERVICE,CAP ASM,TNDM MC,HB [INCL. GASKET, PLATE, COVER]

2204993

$39.99

31

KIT-NUTS,CLEVIS,M/C TANDEM

2203457

$31.99

32

KIT-CLEVIS,M/C TANDEM,HB 3/4"

2203456

$31.99

33

CLAMP-HOSE,.375DIA,VINYL COAT

7081472

$3.99

34

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
