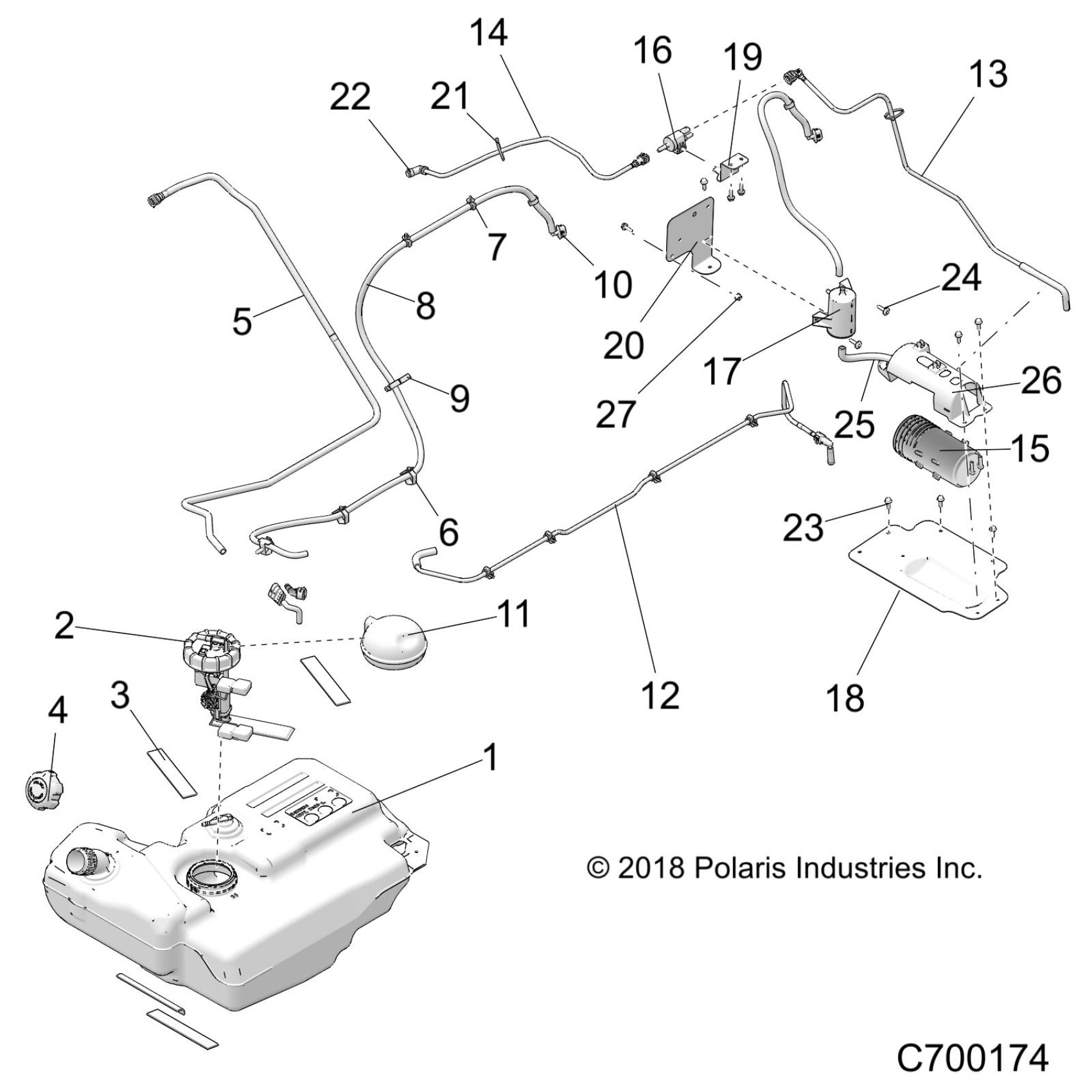

Polaris GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK BODY, FUEL TANK - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/KAK/UA9/UB9/UBM/UBL/UAL/UBL/KAK/KBK (C700174) Diagram

ASM-FUEL TANK [INCL. 2,3]

2635760

Unavailable

KIT, FUEL PUMP

2206278

$439.99

PAD-BATTERY

5810290

$7.27

CAP-GAS TANK,TETHER,8.5

2521942

$31.99

ASM-FUEL LINE

2521801

$67.99

CLIP-ROUTING

7670109

$2.39

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.59

FUEL LINE 1/4"SAE,185CM

8450040-185

$43.99

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.99

FITTING-VENT LINE,90

5453464

$5.59

COVER-PFA,WALBRO

2522056

$27.99

ASM-LINE,TANK TO CANISTER [U99B9,BM,BL,BF][E99BR][K99BK] [EVAP INCLUDES 12-27]

2521864

$59.99

ASM-LINE,CANISTER TO PURGE [U99B9,BM,BL,BF][E99BR][K99BK]

2521865

$59.99

ASM-LINE,PURGE TO TB [U99B9,BM,BL,BF][E99BR][K99BK]

2521866

$43.99

CANISTER-ACTIVATED CARBON,BFL [U99B9,BM,BL,BF][E99BR][K99BK]

2521893

$87.99

VALVE-PURGE [U99B9,BM,BL,BF][E99BR][K99BK]

2521964

$59.99

FILTER-CANISTER VENT [U99B9,BM,BL,BF][E99BR][K99BK]

2521750

$55.99

BRKT-MNT,CANISTER,ECOAT [U99B9,BM,BL,BF][E99BR][K99BK]

5264597-329

$35.99

BRKT-MNT, PURGE, ECOAT [U99B9,BM,BL,BF][E99BR][K99BK]

5264621-329

$35.19

BRKT-MNT,FILTER,ECOAT [U99B9,BM,BL,BF][E99BR][K99BK]

5264647-329

$29.25

CABLE-TIE,10-102MM,WEATH.-RES. [U99B9,BM,BL,BF][E99BR][K99BK]

7080761

$2.39

CLAMP-HOSE, 17/32, GREEN [U99B9,BM,BL,BF][E99BR][K99BK]

7081432

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK [U99B9,BM,BL,BF][E99BR][K99BK]

7518529

$1.49

SCR-TXTH-M6X1.0X25 ZFB [U99B9,BM,BL,BF][E99BR][K99BK]

7519650

$3.99

HOSE-5/16 SAE J30R7,18CM [U99B9,BM,BL,BF][E99BR][K99BK]

8450131-18

$5.59

BRKT-MNT CANISTER,BLK [U99B9,BM,BL,BF][E99BR][K99BK]

5453458-070

$14.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D [U99B9,BM,BL,BF][E99BR][K99BK]

7547332

$3.99
