- GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK
BODY, DOORS - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK (702228)

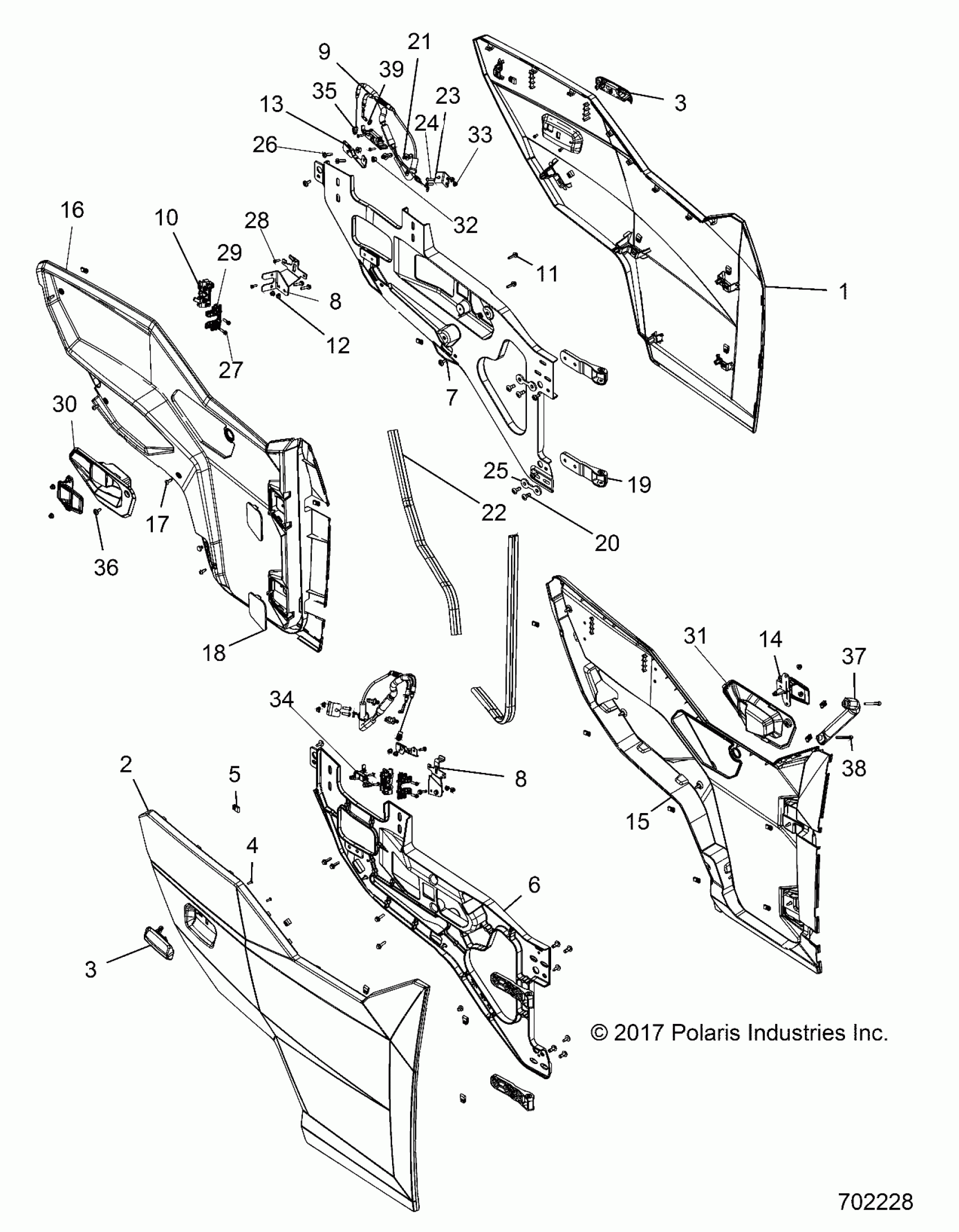

Polaris GENERAL 1000 EPS - R19RG_99A2/AR/BR/AF/BF/AM/BM/A9/B9/AL/BL/AK/BK BODY, DOORS - R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK (702228) Diagram
#
1
PANEL-DOOR,OUT,FRT,LH,HAV.RED [E99AR,BR]
5454342-649
$363.99
1
PANEL-DOOR,OUT,FRT,LH,ORGT,LH [U99AF,BF]
5454342-750
$413.59
1
PANEL-DOOR,OUT,FRT,LH,PRL BLK [K99AK,BK]
5454342-666
$613.07
1
PANEL-DOOR,OUT,FRT,LH,WHT LTNG [E99A2]
5454344-599
$363.99
1
PANEL-DOOR,OUT,FRT,LH,TTNM [U99AM,BM]
5454342-653
$375.99
1
PANEL-DOOR,OUTER,FRT,LH,CAMO [U99A9,B9]
5454342-587
$550.59
1
PANEL-DOOR,OUT,FRT,LH,CR.BLK [U99AL,BL]
5454342-266
$613.07
2
PANEL-DOOR,OUT,FRT,RH,HAV.RED [E99AR,BR]
5454343-649
$413.59
2
PANEL-DOOR,OUT,FRT,RH,ORGT,RH [U99AF,BF]
5454343-750
$413.59
2
PANEL-DOOR,OUT,FRT,RH,PRL BLK [K99AK,BK]
5454343-666
$613.07
2
PANEL-DOOR,OUT,FRT,RH,WHT LTNG [E99A2]
5454345-599
$363.99
2
PANEL-DOOR,OUT,FRT,RH,TTNM [U99AM,BM]
5454343-653
$375.99
2
PANEL-DOOR,OUTER,FRT,RH,CAMO [U99A9,B9]
5454343-587
$550.59
2
PANEL-DOOR,OUT,FRT,RH,CR.BLK [U99AL,BL]
5454343-266
$613.07
3
ASM-HANDLE,DOOR,ALUM,LH,OUT
7082353
$27.99
3
ASM-HANDLE,DOOR,ALUM,RH,OUT
7082354
$27.99
3
ASM-HANDLE,DOOR,ALUM,LH,OUT
7082353
$27.99
3
ASM-HANDLE,DOOR,ALUM,RH,OUT
7082354
$27.99
4
SCR-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
$1.49
5
CLIP-U SPEED NUT
7081305
$1.99
6
FRAME-DOOR,CAST,LH
5634005
Unavailable
6
FRAME-DOOR,CAST,RH
5634006
Unavailable
7
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$3.19
8
BRKT-DOOR HDL,LATCH,MNT,LH,BLK
5264583-458
$27.99
8
BRKT-DOOR HDL,LATCH,MNT,RH,BLK
5264584-458
$27.99
8
BRKT-DOOR HDL,LATCH,MNT,LH,BLK
5264583-458
$27.99
8
BRKT-DOOR HDL,LATCH,MNT,RH,BLK
5264584-458
$27.99
9
CABLE-DOOR,FRONT
7082357
Unavailable
10
ASM-LATCH,RTRY,2 STAGE,LH
7082459
$47.99
10
ASM-LATCH,RTRY,2 STAGE,RH
7082460
$47.99
11
SCR-HXFL-M6X1.0X25 8.8 RIE
7518576
$3.19
12
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
13
ASM-WELD,DUAL CBL RET,LH,ECOAT
1023916-329
Unavailable
13
ASM-WELD,DUAL CBL RET,RH,ECOAT
1023917-329
Unavailable
14
ASM-HANDLE,DOOR INNER
7082216
$39.99
15
PANEL-DOOR,INNER,FRONT,LH,BLK
5454346-070
$131.99
16
PANEL-DOOR,INNER,FRONT,RH,BLK
5454347-070
$131.99
17
SCR-TX TRUSS-#14X3/4,HI/LO ZBK
7519045
$3.19
18
COVER-DOOR HINGE MOUNT
5452517-070
$5.59
19
HINGE-DOOR CAST,BLK
5633642-329
$39.99
20
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
$1.59
21
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
22
SEAL-DOOR
5455610
$55.99
23
BRKT-CBL RET,90 DEG,ECOAT
5265518-329
$31.99
24
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$3.99
25
BRKT-DOOR CLAMP ECOAT
5262743-329
$11.19
26
SCR-M6X1.0X20MM,TX,PH,8.8-B
7518546
$3.19
27
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$3.99
28
SCR-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
$1.49
29
GUIDE,DOOR LATCH
-------
Unavailable
30
TRIM-DOOR,INNER,LH,BLK
5452290-070
$27.99
31
TRIM-DOOR,INNER,RH,BLK
5452291-070
$27.99
32
NUT-M6 FLANGE,NYLOC
7547274
$1.49
33
NUT-6MM X 1 NYLOK-Z
7546703
$1.49
34
ASM-HANDLE,DOOR,ALUM,LH,OUT
7082353
$27.99
35
CLIP-REAR DOOR
5454637
$4.99
36
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$3.19
37
DOOR-GRAB HANDLE,RH,BLK
5452904-070
$31.99
38
SCR-SH-M6X1.0X50 8.8 ZPB
7520482
$3.99
39
RETAINER-CABLE, STEEL
7710921
$3.19
