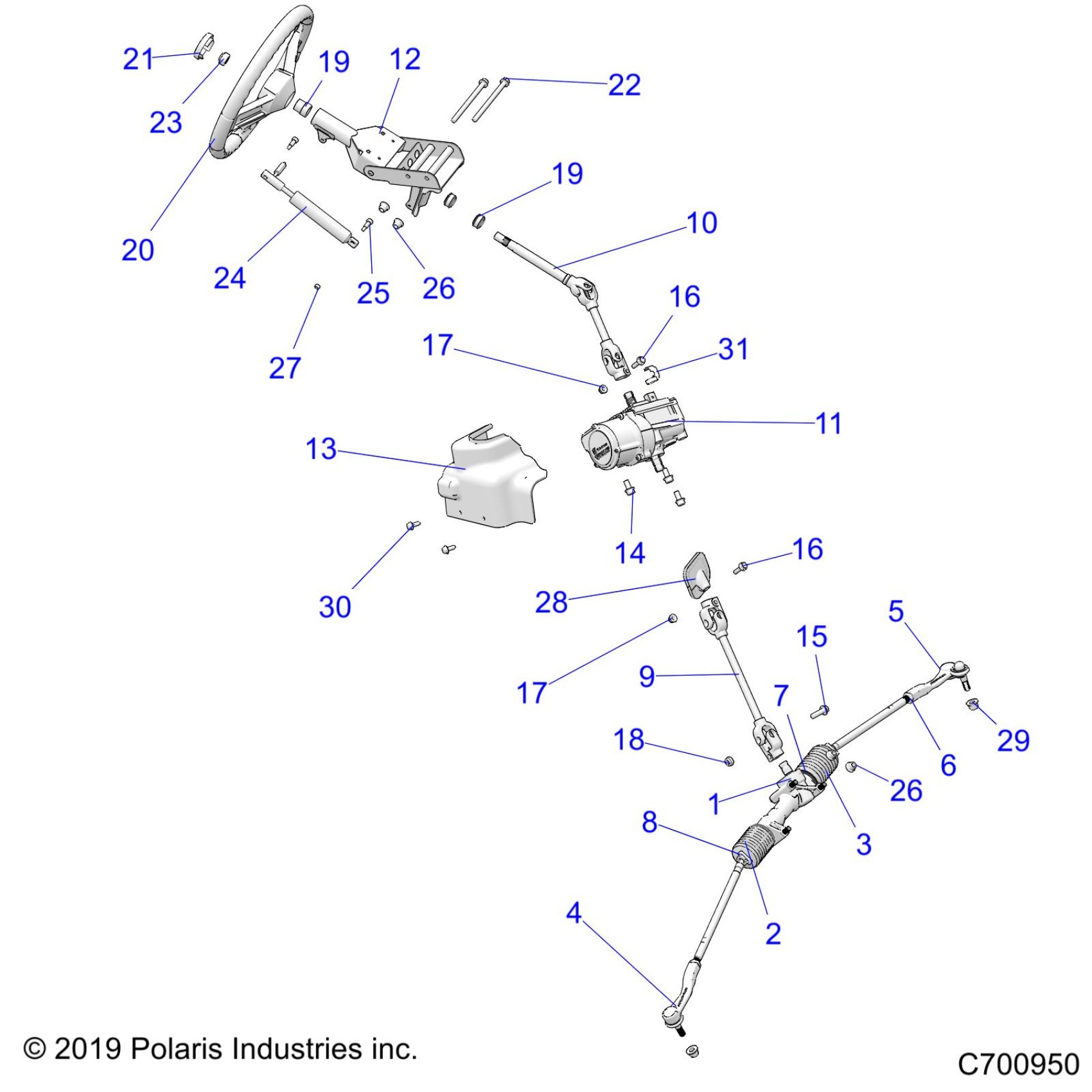

Polaris GENERAL 1000 EPS DELUX (R08) - G20GAE99A2/A4/D99AK/AS/BK/BS STEERING, STEERING ASM. - G20GAE99A2/A4/D99AK/AS/BK/BS (C700950) Diagram

#

Description
Price

1

ASM-GEAR BOX,STEERING [INCL. 2-8][D99AS][D99AK][D99BS][D99BK]

1824770

$585.19

1

ASM-GEAR BOX,STEERING [INCL. 2-8][E99A2][E99A4]

1824769

$497.19

2

D.S. BELLOWS

5412012

$59.99

3

P.S. BELLOWS

5412013

$55.99

4

ROD-END,TAPERED,RH

7061216

$79.99

5

ROD-END,TAPERED,LH

7061215

$79.99

6

NUT, JAM

2205058

$23.99

7

CLAMP, LARGE

7080979

$5.59

8

CLAMP, SMALL

7082150

$6.39

9

SHAFT-STEERING LWR,EPS

1824912

$135.99

10

SHAFT-STEERING,UPPER,EPS

1824438

$163.99

11

ASM-POWER STEERING

2414882

$1,966.79

12

ASM-TILT,STEERING,RVTD,M10,BLK

1824420-458

$143.99

13

COVER-EPS

5452850

$27.99

14

BOLT

7518558

$3.99

15

SCREW

7518644

$4.79

16

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$1.59

16

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$1.59

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT

7547385

$1.49

19

BUSHING-STEERING

7556675

$14.95

19

BUSHING-STEERING

7556675

$14.95

20

WHEEL-STEERING, 14" [E99A2][E99A4]

1824212

$123.99

20

WHEEL-STEERING [D99AS][D99AK][D99BS][D99BK]

1824014

Unavailable

21

CAP-STEERING WHEEL [E99A2][E99A4]

5451356

$31.99

21

CAP-STEERING WHEEL,KSS GRAY [D99AS][D99AK][D99BS][D99BK]

5450255-656

$31.99

22

BOLT

7518665

$13.59

23

NUT

7547506

$4.39

24

ASM-SHOCK,OIL LOCKING,MACH

7044098

$95.99

25

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

27

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

28

GROMMET-STEERING

5415579

$8.79

29

NUT

7547334

$4.79

30

SCR-M6X1X16 TR/TX-M

7518936

$3.99

31

EPS SHAFT ASSEMBLY SLEEVE

5454206

$6.39
