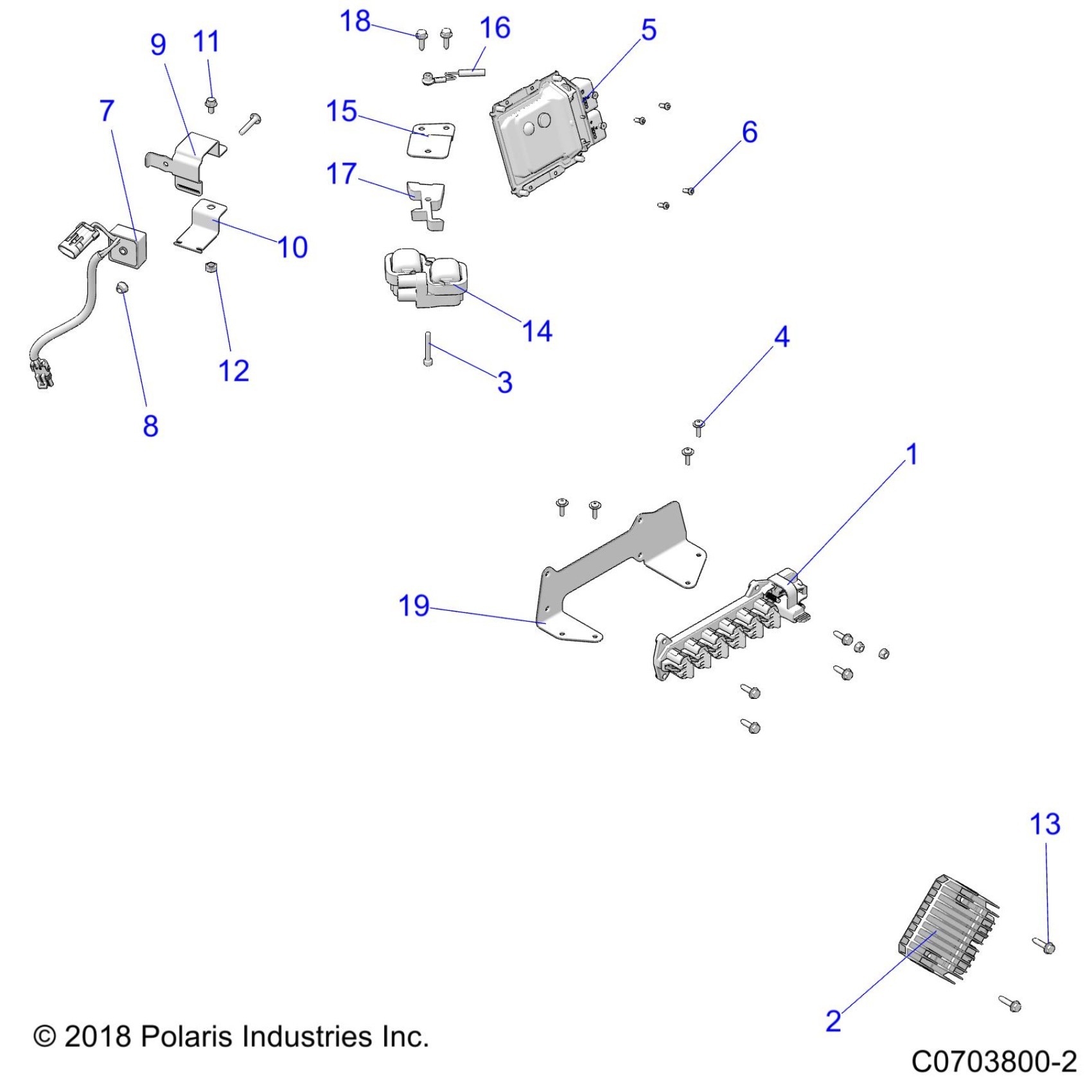

Polaris GENERAL 1000 EPS DELUX (R08) - G20GAE99A2/A4/D99AK/AS/BK/BS ELECTRICAL, COMPONENTS AND OPTIONS - G20GAE99A2/A4/D99AK/AS/BK/BS (C0703800-2) Diagram

BLOCK-TERMINAL,6 POS [INCL 8,9,11,13,15]

4016007

$44.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

ECM-NO START,ME17

4014125

$694.99

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

RELAY, SOLID STATE,9A,LONG LD

4012829

$71.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRKT-RELAY,INNER MOUNT,BLK

5267577-458

$27.99

BRKT-RELAY,OUTER MOUNT,BLK

5267578-458

$26.39

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

NUT-6MM X 1 NYLOK-Z

-------

Unavailable

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

COIL-EFI

4010425

Unavailable

JUMPER,COIL GROUND

4014422

$27.99

BRKT-COIL MOUNT

5260553

$14.39

SPACER-COIL MOUNT

5436577

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BRKT-MOUNT,PULSE,BLK

5266257-458

$27.99
