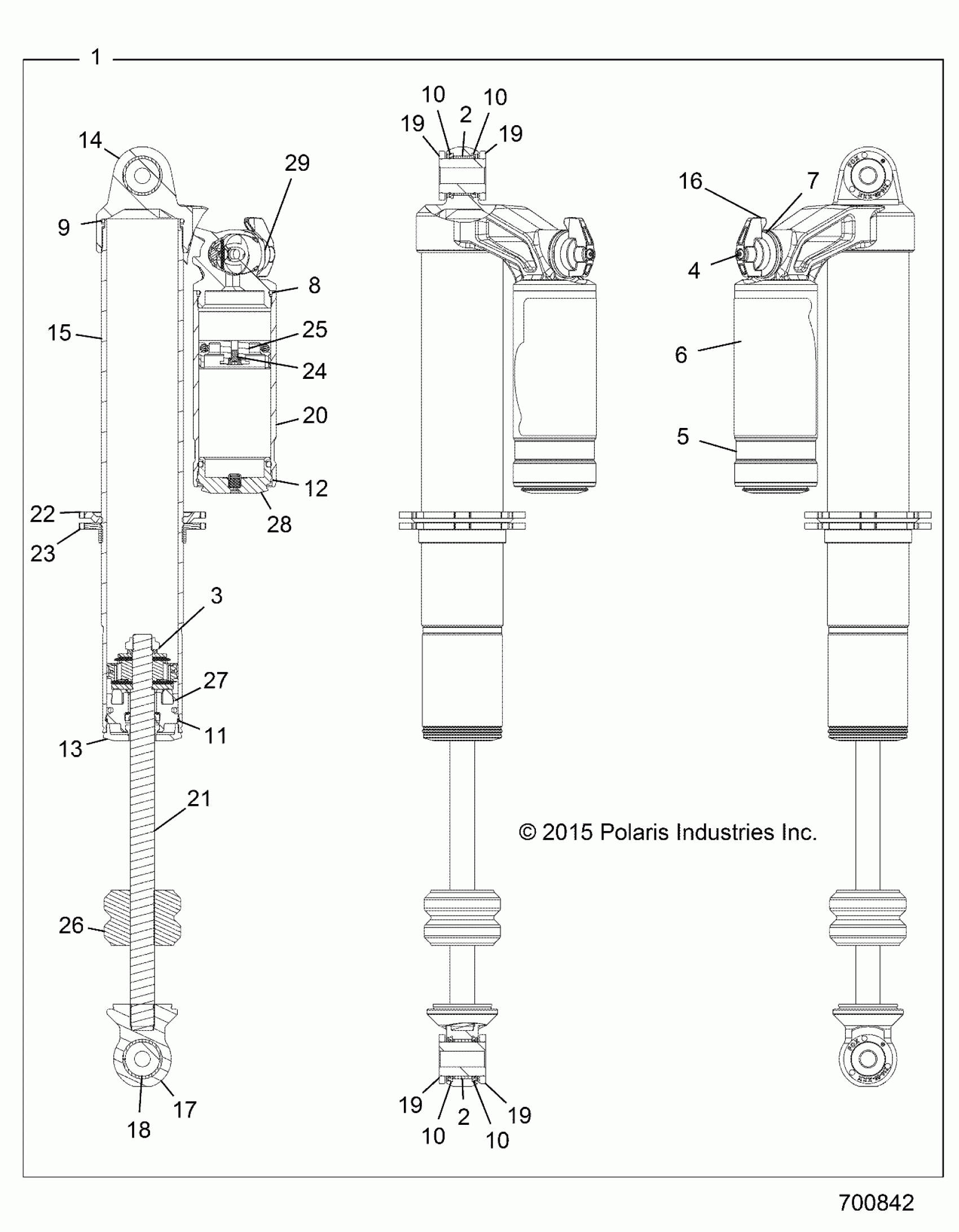

Polaris GENERAL 1000 DELUXE RC (R01) - G22GAJ99AP/BP SUSPENSION, FRONT SHOCK INTERNALS - G22GAJ99AP/BP (700842) Diagram

#

Description
Price

1

SHOCK-FRONT,PIGGYBK,LH [INCL. ALL]

7045838

$689.99

1

SHOCK-FRONT,PIGGYBK,RH [INCL. ALL]

7045839

$689.99

2

BUSHING, EYELET

1501010

$19.84

2

BUSHING, EYELET

1501010

$19.84

3

Fastener, Standard: Nut, Lock [1/2-20 X 0.313 TLG]

----

Unavailable

4

SCREW, #4, SS PAN

1501011

$13.49

5

DECAL, PERFORMANCE SERIES

1501012

$15.37

6

DECAL, RESERVOIR

1501013

$11.32

7

DECAL, BASE VALVE, 3 POSITION

1501105

$40.46

8

O-RING,.103W-1.737ID

1500623

$6.46

9

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

----

Unavailable

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

11

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

----

Unavailable

12

RING-RETAINING, WIRE 2.050

1501015

$9.52

13

CAP, BEARING

1501100

$49.99

14

BODY, CAP, PIGGY BACK

----

Unavailable

14

BODY, CAP, PIGGY BACK

----

Unavailable

15

BODY, 1.83X13.1TLG

1501031

$109.99

16

KNOB, DAMP. ADJ, BLK

1501108

$20.22

17

EYELET, SHAFT

----

Unavailable

18

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

20

RESERVOIR:0 1.834 BORE,5.000TLG ALUMINUM THREADED ID SHORT OD STEP

----

Unavailable

21

SHAFT, .62X10.1TLG

1501033

$121.02

22

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

----

Unavailable

23

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

----

Unavailable

24

SCREW - BLACK, RES.

1501303

$29.99

25

ASM., PISTON, FLOAT

1501026

$54.99

26

BUMPER, B/O SHAFT

1501028

$28.49

27

ASM., BEARING, .62SHAFT

1501185

$69.99

28

ASM., END CAP, RESERVOIR

----

Unavailable

29

DAMPING ADJUSTMENT ASSEMBLY

1501186

$295.30
