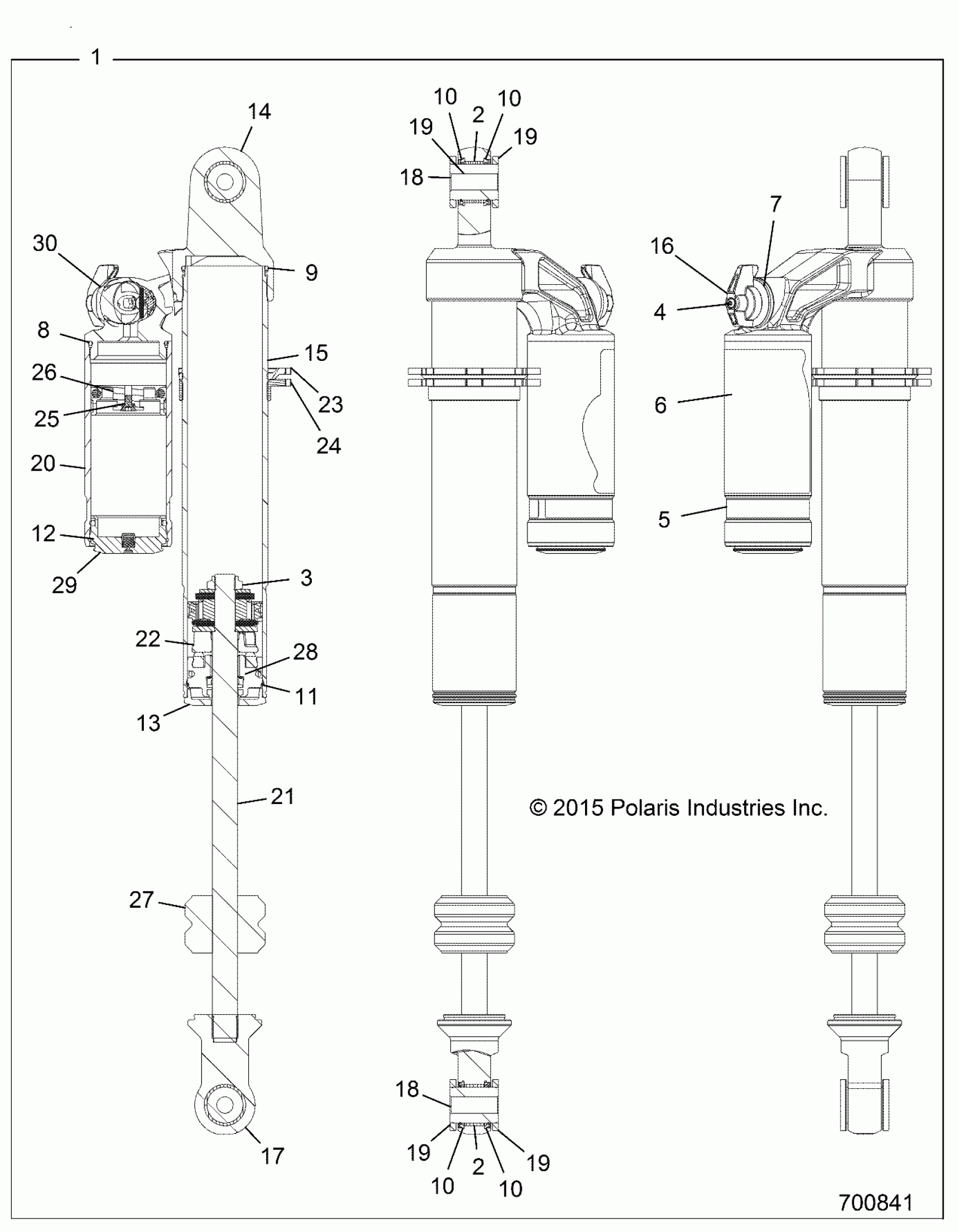

Polaris GENERAL 1000 DELUXE EPS (R01) - G22GAD99AP/BP SUSPENSION, REAR SHOCK INTERNALS - G22GAD99AP/BP (700841) Diagram

#

Description
Price

-

SHOCK-REAR,PIGGYBK,LH [INCL. ALL]

7045840

$689.99

-

SHOCK-REAR,PIGGYBK,RH [INCL. ALL]

7045841

$689.99

1

Plate: Top-Out [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 Shaft]

1500838

Unavailable

2

BUSHING, EYELET

1501010

$19.84

2

BUSHING, EYELET

1501010

$19.84

3

Fastener, Standard: Nut, Lock [1/2-20 X 0.313 TLG]

1500472

$23.81

4

SCREW, #4, SS PAN

1501011

$13.49

5

DECAL, PERFORMANCE SERIES

1501012

$15.37

6

DECAL, RESERVOIR

1501013

$11.32

7

DECAL, BASE VALVE, 3 POSITION

1501105

$40.46

8

O-RING,.103W-1.737ID

1500623

$6.46

9

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

1500510

$6.46

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

11

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

1500236

$9.52

12

RING-RETAINING, WIRE 2.050

1501015

$9.52

13

CAP, BEARING

1501100

$49.99

14

BODY, CAP, PIGGY BACK, LH

1501016

$239.98

14

BODY, CAP, PIGGY BACK, RH

1501017

$244.99

15

BODY, 1.834X10.5

1501018

$79.99

16

KNOB, DAMP. ADJ, BLK

1501108

$20.22

17

EYELET PART: EYELET, 1.0097 BORE X .800 W, 5/8UNF, 2.200 LG

1501089

$48.87

18

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

18

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

19

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

20

RESERVOIR:0 1.834 BORE,5.000TLG ALUMINUM THREADED ID SHORT OD STEP

1501023

$64.99

21

SHAFT, .62X11.4TLG

1501024

$118.74

22

SPACER: SHAFT, 0.625 ID X 0 1.300 OD X O 0.588 TLG, NYLON 66

1501025

$9.70

23

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500872

$48.56

24

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500873

$52.60

25

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

$44.99

26

ASM., PISTON, FLOAT

1501026

$54.99

27

BUMPER, B/O SHAFT

1501028

$28.49

28

ASM., BEARING, .62SHAFT

1501185

$69.99

29

ASM., END CAP, RESERVOIR

1501027

$114.99

30

ASM., DAMPING ADJUSTER, FIRM VALVE

1501187

$304.99
