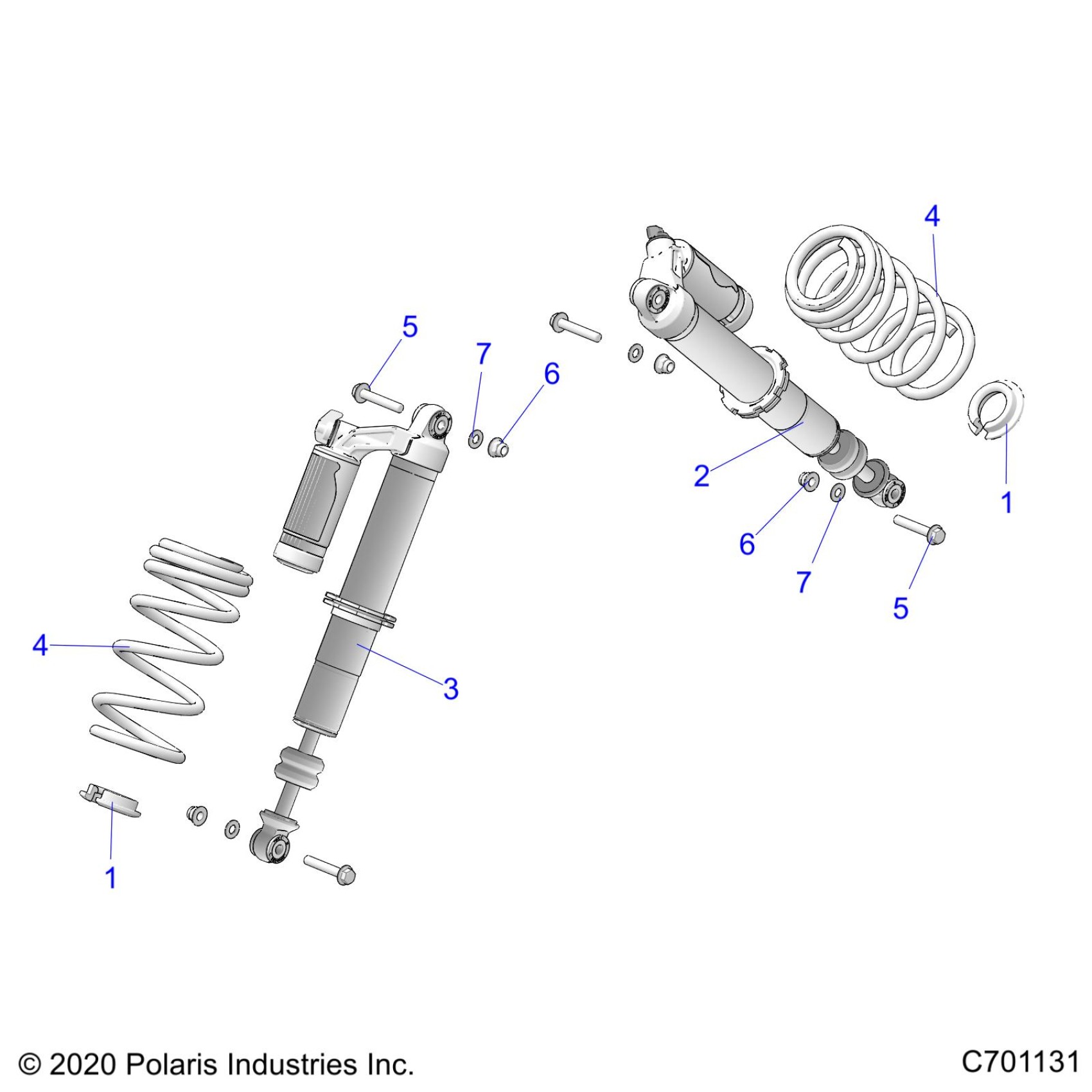

Polaris GENERAL 1000 DELUXE EPS (R01) - G22GAD99AP/BP SUSPENSION, FRONT SHOCK MOUNTING - G22GAD99AP/BP (C701131) Diagram

#

Description

Price

1

RETAINER, SPRING

1501329

$59.52

1

RETAINER, SPRING

1501329

$59.52

2

SHOCK-FRONT,PIGGYBK,LH

7045838

$689.99

3

SHOCK-FRONT,PIGGYBK,RH

7045839

$689.99

4

SPR-170#,12.5FL,2.3ID,TTM MT S

7044581-705

$67.76

4

SPR-170#,12.5FL,2.3ID,TTM MT S

7044581-705

$67.76

5

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

5

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
