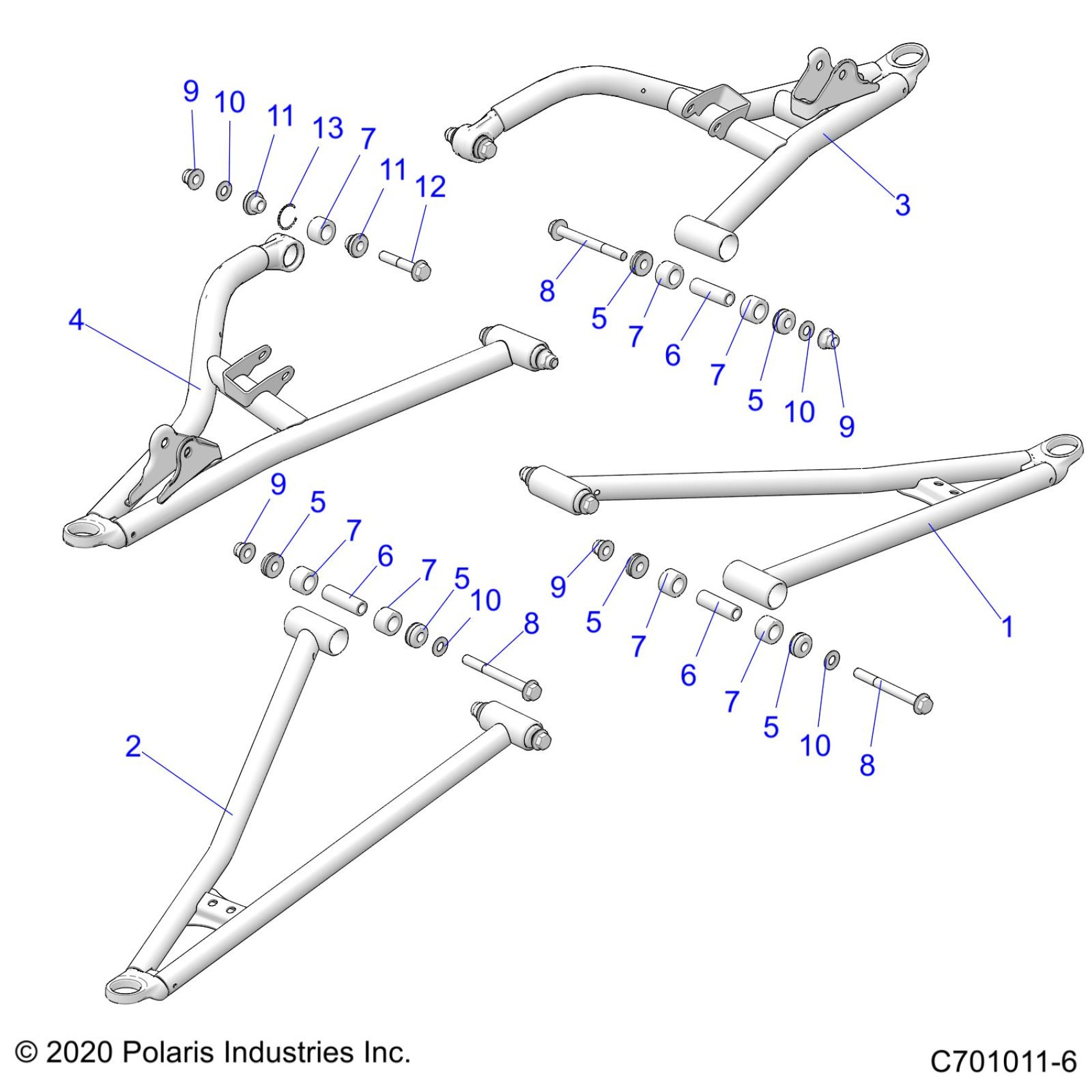

Polaris GENERAL 1000 DELUXE EPS (R01) - G22GAD99AP/BP SUSPENSION, FRONT CONTROL ARMS - G22GAD99AP/BP (C701011-6) Diagram

#

Description
Price

1

WELD-CTRL ARM,LWR,FRT,LH,60,BL

1021416-458

$127.99

2

WELD-CTRL ARM,LWR,FRT,RH,60,BL

1021417-458

$127.99

3

WELD-CTRL ARM,UPR,FRT,LH,60,BK

1023223-458

$195.99

4

WELD-CTRL ARM,UPR,FRT,RH,60,BK

1023224-458

$195.99

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

6

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

6

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

6

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

8

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

8

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

8

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

11

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

12

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

13

28MM SPIRAL RING,STEEL

7710845

$3.59
