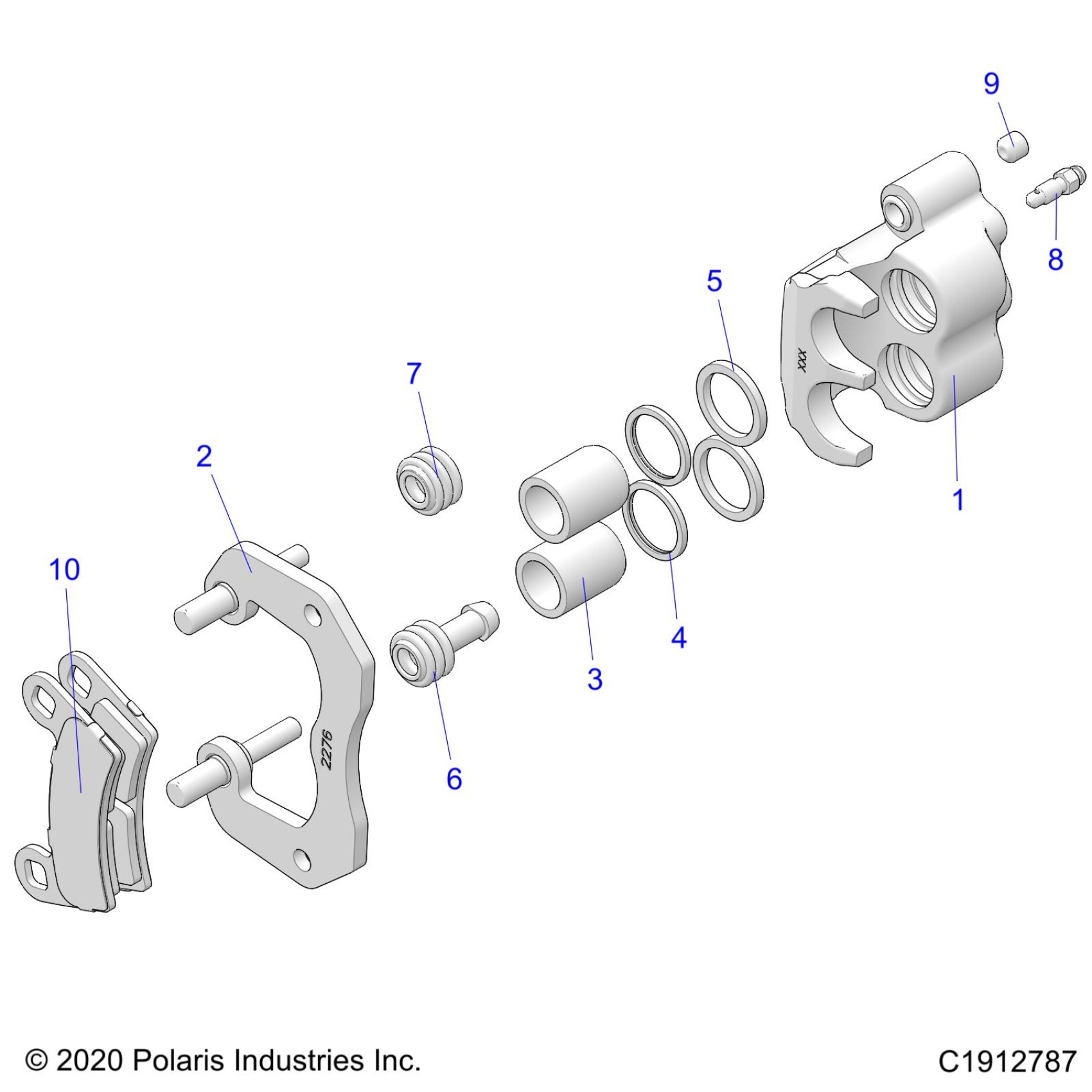

Polaris GENERAL 1000 DELUXE EPS (R01) - G22GAD99AP/BP BRAKES, REAR CALIPER - G22GAD99AP/BP (C1912787) Diagram

#

Description

Price

1

ASM-CLPR,DB1.0,LH [INCL. ALL]

1912786

$259.99

1

ASM-CLPR,DB1.0,RH [INCL. ALL]

1912787

$271.99

2

ASM-CALIPER MNT,DB,3.0",APX

1912276

$35.99

3

PISTON, BRAKE, LONG

5134941

$35.99

4

SQUARE RING-MOLDED (.134)

5410766

$11.99

5

RING, SQUARE,(1''DIAM.) Substituted by 2200463

5410767

Unavailable

6

BOOT-PIN BUSHING

5412505

$3.19

7

BOOT-PIN SEAL

5412506

$3.19

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

KIT-BRAKE PAD,DUAL BORE [INCL. 2 PADS]

2203318

$55.99

10

K-BRAKE,HD,PAD,DB1" �[OPTION][2 PADS PER KIT]

2208936

$63.99
