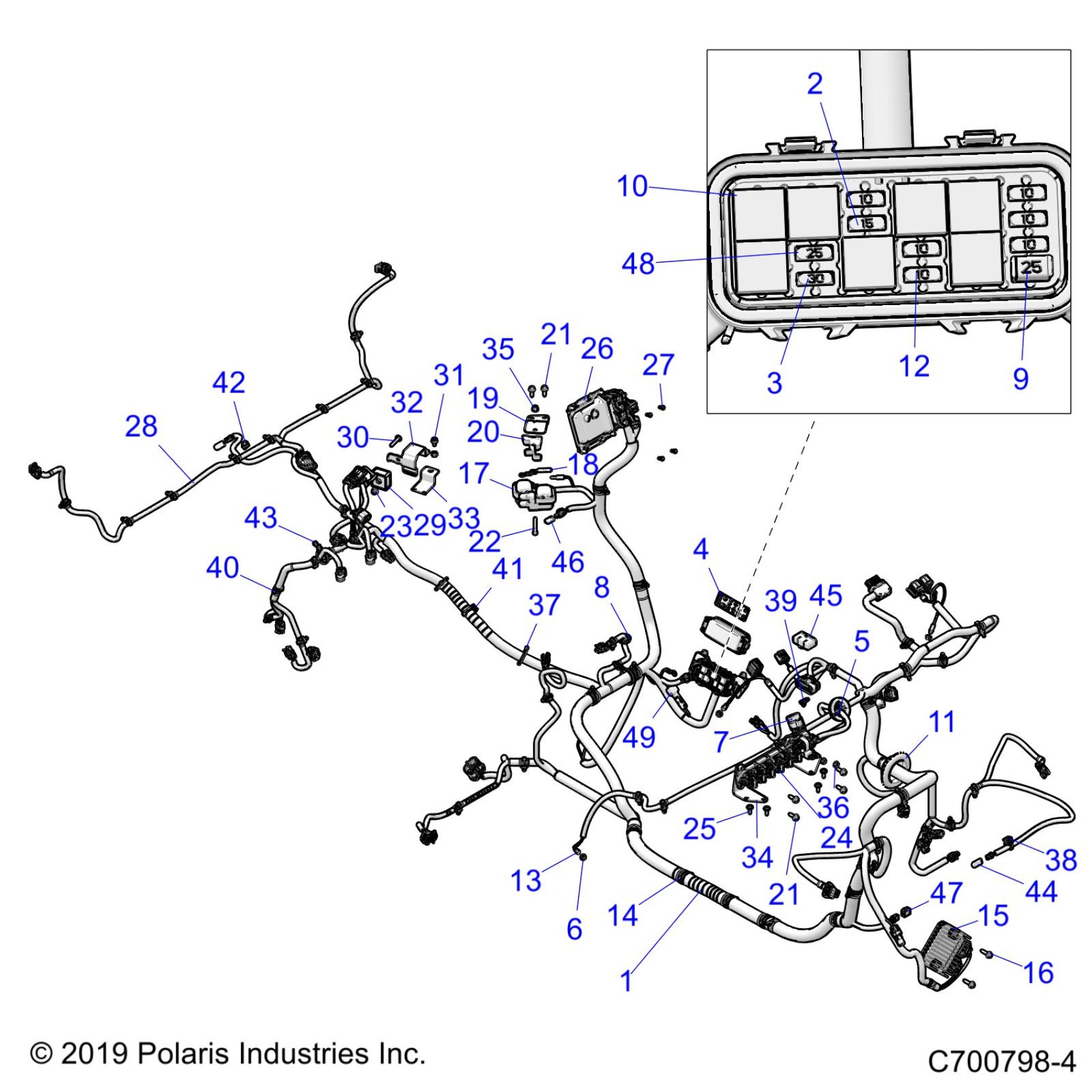

Polaris GENERAL 1000 DELUX RC (R05) - G20GAJ99AK/AS/BK/BS ELECTRICAL, WIRE HARNESS - G20GAJ99AK/AS/BK/BS (C700798-4) Diagram

#

Description
Price

1

HARNESS-CHASSIS [INCL 2-14, 38-49]

2414814

$1,599.99

2

FUSE-15AMP,MINI BLADE

4010859

$8.08

3

FUSE-30 MINI BLADE 58V (GREEN)

4013561

$7.98

4

LABEL, FUSE BOX

7190832

Unavailable

5

GROMMET-ELECTRICAL,CAB

5414440

$7.14

6

CLIP, ROUTING

7082020

$5.56

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.97

9

BREAKER-CIRCUIT, 25 AMP

4015771

$68.79

10

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

11

GROMMET

5813954

$8.99

12

FUSE-IGNITION,10 AMP

2434016

$5.65

13

LED, PANEL MOUNT

2413217

$52.60

14

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

15

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

17

COIL-EFI

4010425

$242.84

18

JUMPER,COIL GROUND

4014422

$32.37

19

BRKT-COIL MOUNT

5260553

$14.56

20

SPACER-COIL MOUNT

5436577

$3.97

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.97

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

24

BLOCK-TERMINAL,6 POS

4016007

$44.99

25

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

26

ECM-NO START,ME17

4014125

$749.99

27

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.17

28

HARNESS-BOX

2413051

$67.76

29

RELAY, SOLID STATE,9A,LONG LD

4012829

$94.99

30

SCREW

7518924

$7.94

31

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

32

BRKT-RELAY,INNER MOUNT,BLK

5267577-458

$33.87

33

BRKT-RELAY,OUTER MOUNT,BLK

5267578-458

$29.99

34

BRKT-MOUNT,PULSE,BLK

5266257-458

$34.99

35

NUT-M6 FLANGE,NYLOC

7547274

$1.19

36

NUT-HXFLGHD,M6,SERRATED

7547270

$3.97

37

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

38

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.52

39

CLIP-FIR,HOLE6.35MM

7082134

$3.97

40

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

41

CLIP-EDGE, SIDE W/STRAP

7081876

$7.94

42

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

43

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

44

CAP-VINYL, 125X375, BLACK

5438230

$5.65

45

CAP-EVAP CONNECTOR

4018655

$4.03

46

CAP-EVAP CONNECTOR

4018066

$4.03

47

CONNECTOR-CAP, WINCH SWITCH

4014890

$10.65

48

FUSE-25A,MINI BLADE

4011653

$8.89

49

DIODE-6 AMP

2410000

$40.46
