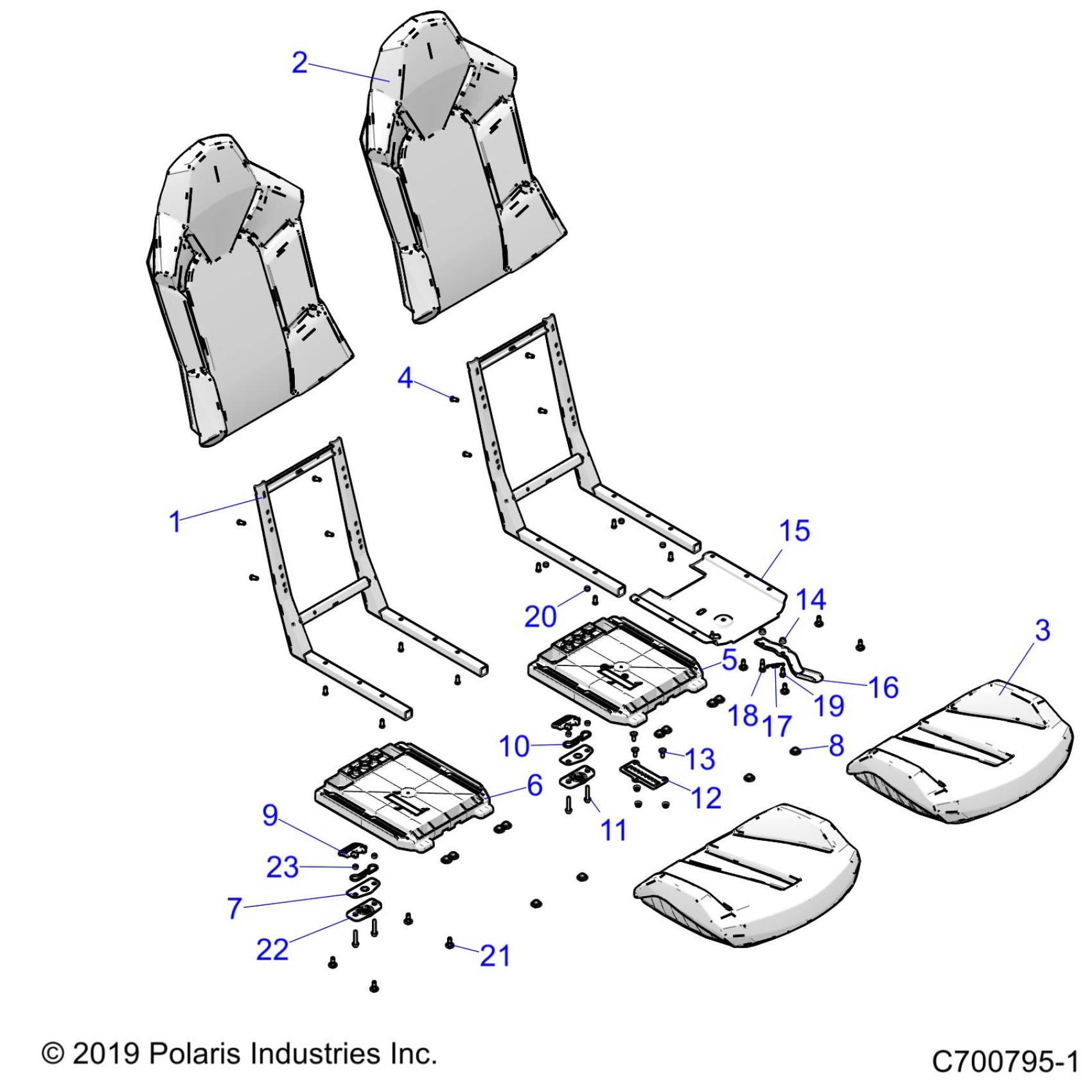

Polaris GENERAL 1000 DELUX RC (R05) - G20GAJ99AK/AS/BK/BS BODY, SEAT ASM. AND SLIDER - G20GAJ99AK/AS/BK/BS (C700795-1) Diagram

Description

Price

WELD-SEAT FRAME

1022256

$194.27

ASM-SEAT BACK,BK/TSL/SLGR WHST [AS][BS]

2689746

$308.74

ASM-SEAT BACK,BK/SL/PBLU WHTST [AK][BK]

2689750

$299.99

ASM-SEAT BTM,BLK/T.SLV/WHT [AS][BS]

2688435

$244.99

ASM-SEAT BTM,BLACK/SLVR WH ST [AK][BK]

2689752

$244.99

SCREW

7515177

$3.17

ASM., BASE, SEAT SLIDER [INCL. 6-14&27, QTY 3 OF 15]

2685704

$210.46

ASM-BASE,SEAT [INCL. 6-14&27, QTY 3 OF 15]

2634889

$133.56

PLATE-LATCH,SEAT

5258647

$6.35

GROMMET, SEAT BASE

5413441

$3.97

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING, LATCH, SEAT

7081466

$39.99

Screw

7517610

$1.59

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

$14.56

BOLT, CARRIAGE

7518994

$3.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

Unavailable

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$64.75

BRACKET, SEAT SLIDER LEVER

5260733

$28.32

SPRING

7044099

$5.65

BOLT, SHOULDER

7518786

$2.38

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5340145

$5.65

SCREW

7519296

$1.59

WASHER, SPRING LOCK

7552801

$1.59

Washer, Flat

7555859

$1.19

LATCH-COVER PLATE,BLK

5450510-070

$5.65

NUT-6MM X 1 NYLOK-Z

7546703

$1.19
