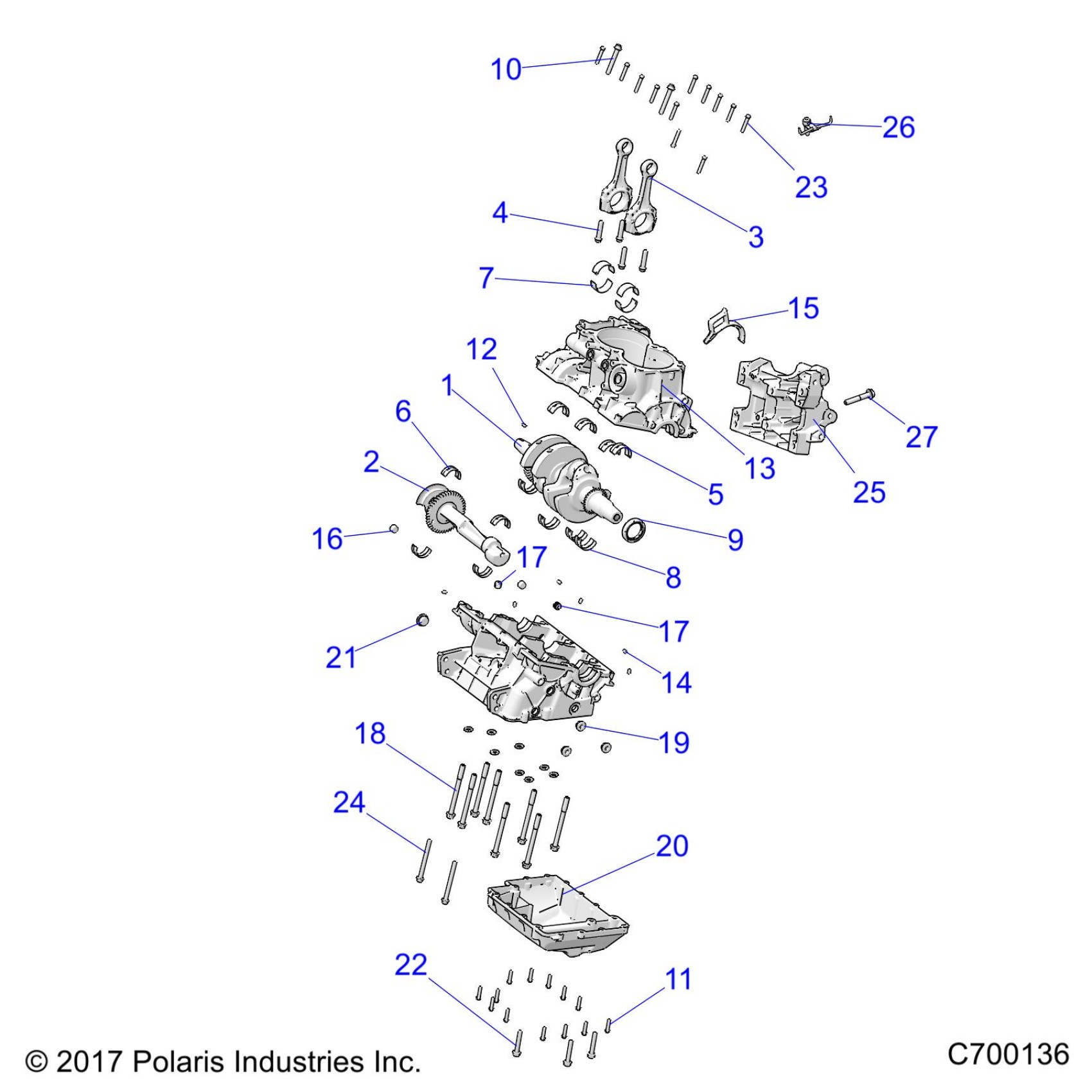

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK ENGINE, CRANKCASE AND CRANKSHAFT - R19RHE99AD/BD/LD/KAK/BK (C700136) Diagram

#

Description
Price

1

ASM-CRANKSHAFT,MACH [FROM 10/1/2018][TO 1/14/2019]

1204832

Unavailable

1

ASM., CRANKSHAFT [TO 10/1/2018][FROM 1/14/2019]

3023169

Unavailable

2

ASM-BALANCE SHAFT

1204835

$343.99

3

ASM., CONNECTING ROD [INCL. 4]

3023077

$194.99

4

SCREW

7520378

$5.59

5

BEARING, MAIN, WHITE

3514662-001

$9.59

5

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

5

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

5

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

5

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

6

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.79

6

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.79

6

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.79

6

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.79

7

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

8

BEARING-MAIN,CNTR,LWR BLU

3514803-002

$11.99

8

BEARING-MAIN,CNTR,LWR,GREEN

3514803-003

$11.99

8

BEARING-MAIN,CNTR,LWR,YELLOW

3514803-004

$11.99

9

SEAL-CRANKSHAFT

3610284

$32.37

10

SCREW

7519186

$6.53

11

SCREW

7519297

$3.99

12

KEY-WOODRUFF,4X5

7721122

$7.84

13

KIT, CRANKCASE [INCL. 14-19]

2207373

$1,234.79

14

PIN-DOWEL,M6X10

5132835

$2.39

15

DIVERTER, OIL DRAIN

5452616

$20.22

16

PLUG

7052413

$3.99

17

PLUG

7518835

$5.59

17

PLUG

7518835

$5.59

18

SCREW

7519141

Unavailable

19

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

20

COVER, SUMP

5137873

Unavailable

21

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99

22

SCREW

7517793

$5.59

23

SCREW

7518578

$3.99

24

SCREW

7519154

$7.19

25

BRKT-TRANSJOINT,MACH

5137795

Unavailable

26

JET, PISTON

3022856

$48.40

27

BOLT

7520467

$4.79
