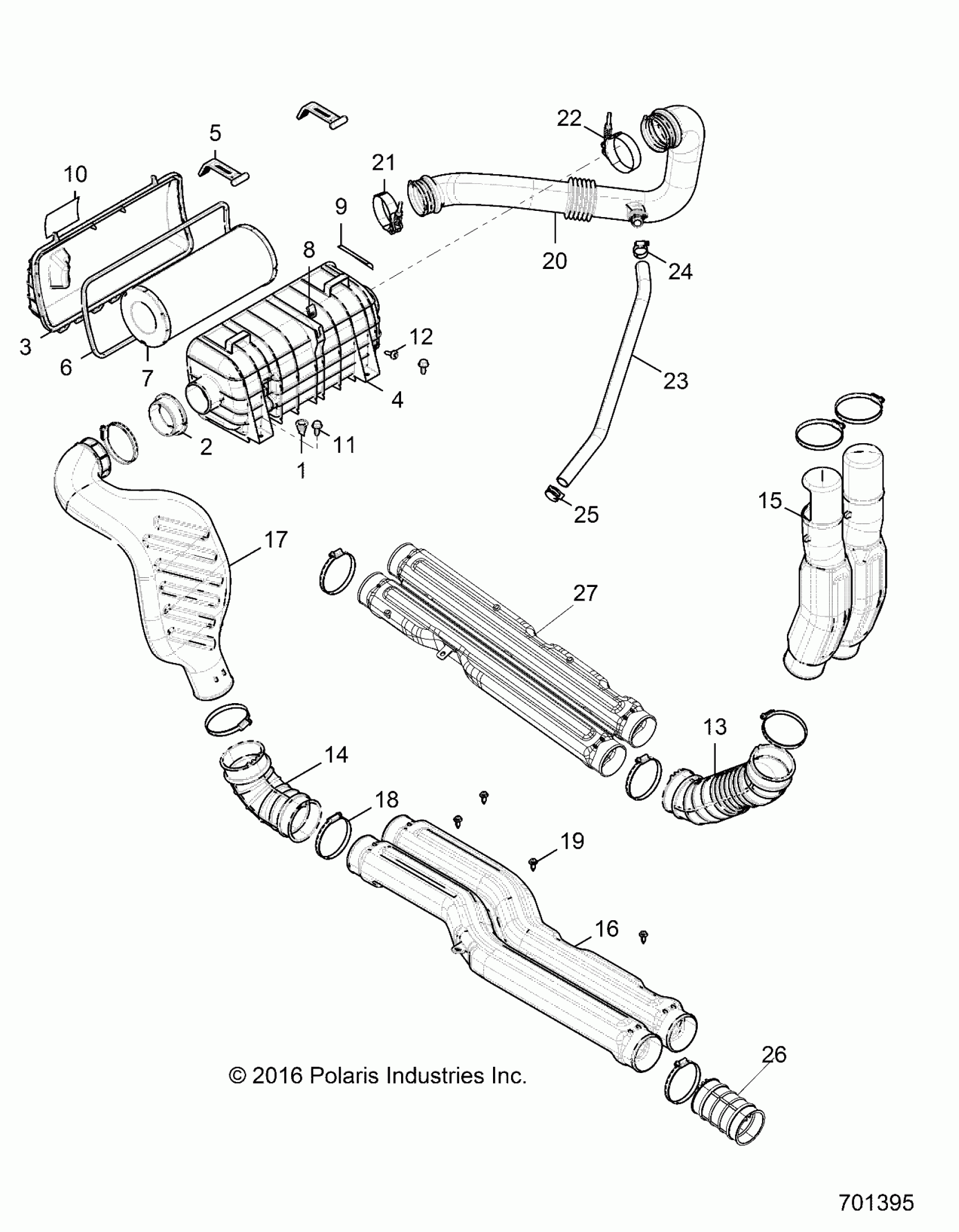

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK ENGINE, AIR INTAKE SYSTEM - R19RHE99AD/BD/LD/KAK/BK (701395) Diagram

#

Description
Price

1

PLUG-DRAIN

5414472

$5.56

2

SEAL-INTAKE,AIRBOX

5415155

$5.65

3

COVER-AIRBOX

5451097

$66.49

4

AIRBOX

5451098

$174.27

5

STRAP-AIRBOX

5451099

$4.84

6

SEAL-AIRBOX

5814054

$33.24

7

FILTER-AIR [STD]

7082115

$35.71

7

K-FILTER-AIR,PERF,RZX [OPT]

2881063

$79.99

8

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.19

9

DECAL-INTAKE DUCT

7182087

$32.37

9

DECAL-WARN,INTAKE [E99LD]

7185975

Unavailable

10

DECAL-CAUT.AIR BOX

7182652

Unavailable

11

BOLT-M8X1.25X20,HXFLG

7518555

$2.38

12

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

13

HOSE-INTAKE,DUCT

5415468

$48.56

14

HOSE-INTAKE,DUCT

5415469

$32.37

15

DUCT-INTAKE,FRONT

5452087

$75.99

16

DUCT-INTAKE,FLOOR

5452088

$64.75

17

DUCT-INTAKE,AIRBOX IN

5452089

$62.92

18

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

20

ASM-INTAKE DUCT [INCL. 21-22]

1240946

$203.32

21

CLAMP-HOSE T-BOLT,66.4 DIA

7081979

$35.71

22

CLAMP-HOSE T-BOLT,72 DIA

7082128

$31.75

23

HOSE-VENT,ENGINE

5415455

$40.46

24

CLAMP-HOSE WORM GEAR 1.25

7080614

$7.14

25

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

26

HOSE-INTAKE,DUCT

5415811

$32.37

27

DUCT-INTAKE,FLOOR

5452856

$72.60
