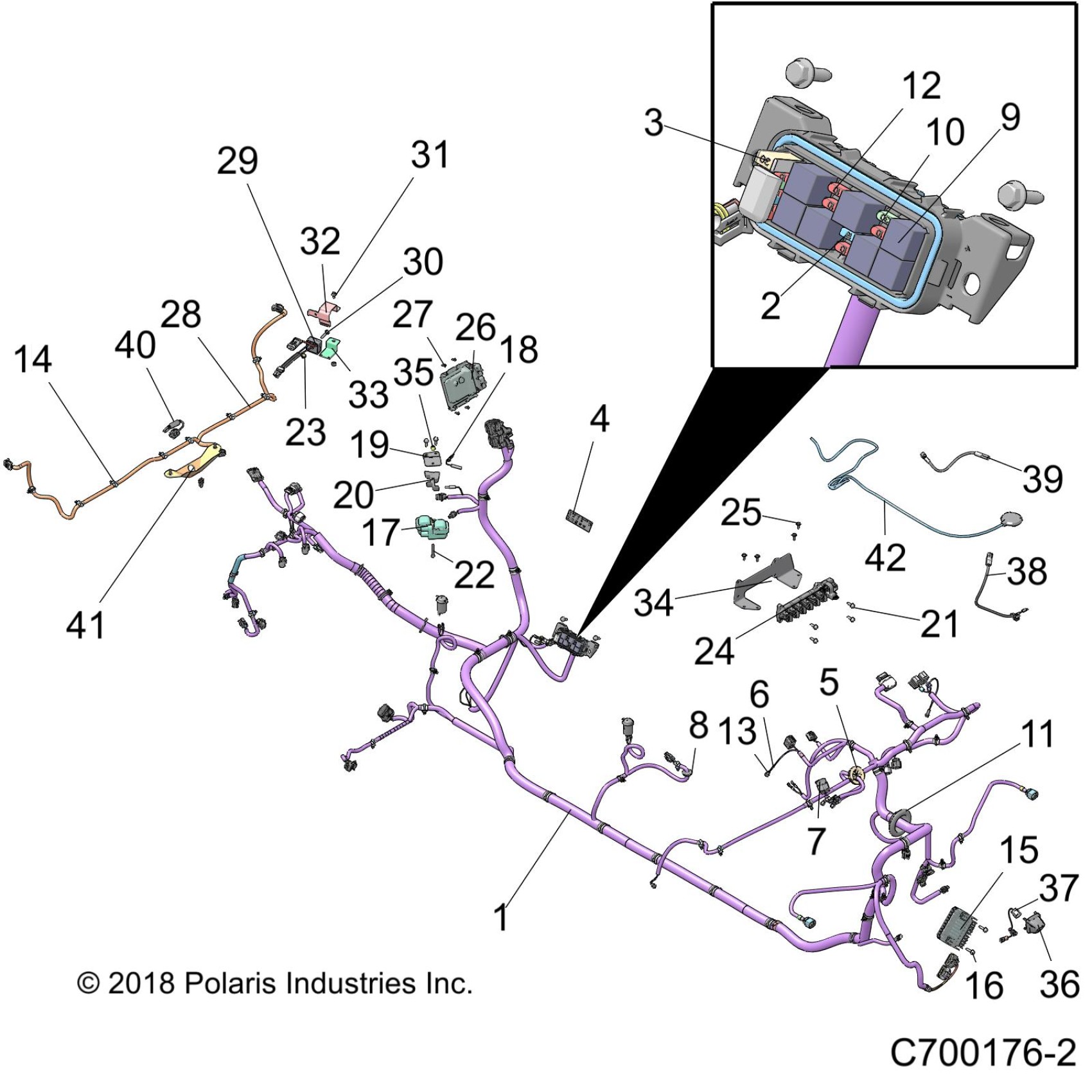

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK ELECTRICAL, WIRE HARNESS - R19RHK99AK/BK (C700176-2) Diagram

#

Description
Price

1

HARNESS-CHASSIS,4P,7" DISPLAY [INCL 2-14]

2414382

$1,699.99

2

FUSE-MINI BLADE,15 AMP

2410280

$8.08

3

BREAKETR CIRUIT, 30A MINI

4013894

$44.51

4

LABEL, FUSE BOX

7188637

Unavailable

5

GROMMET-ELECTRICAL,CAB

5414440

$7.14

6

CLIP, ROUTING

7082020

$5.56

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.97

9

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

10

FUSE-MAIN,30 AMP

2434015

$8.87

11

GROMMET

5813954

$8.99

12

FUSE-IGNITION,10 AMP

2434016

$5.65

13

LED, PANEL MOUNT

2413217

$52.60

14

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

15

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

17

COIL-EFI

4010425

$242.84

18

JUMPER,COIL GROUND

4014422

$32.37

19

BRKT-COIL MOUNT

5260553

$14.56

20

SPACER-COIL MOUNT

5436577

$3.97

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.97

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

24

BLOCK-TERMINAL,6 POS

4016007

$44.99

25

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

26

ECM-NO START,ME17

4014125

$749.99

27

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.17

28

HARNESS-BOX

2413051

$67.76

29

RELAY, SOLID STATE,9A,LONG LD

4012829

$94.99

30

SCREW

7518924

$7.94

31

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

32

BRKT-RELAY,INNER MOUNT,BLK [FROM 10/18/2018]

5267577-458

$33.87

32

BKT, MOUNT, RELAY, INNER, BLK [TO 10/18/2018]

5265227-458

$44.51

33

BRKT-RELAY,OUTER MOUNT,BLK [FROM 10/18/2018]

5267578-458

$29.99

33

BKT, MOUNT, RELAY,OUTER, BLK [TO 10/18/2018]

5265229-458

$36.41

34

BRKT-MOUNT,PULSE,BLK

5266257-458

$34.99

35

NUT-M6 FLANGE,NYLOC

7547274

$1.19

36

MOUNT-FRONT,CAMERA,GENERAL,BLK

5454204-070

$14.56

37

CAMERA-FRONT,WIDE ANGLE

4016639

Unavailable

38

HARNESS-TEMP SENSOR

2413743

$74.99

39

HARNESS-AM/FM ADAPTER

2414431

$94.99

40

CAM,IR ILLUMINATED,AMB SENSE

4017665

$232.74

41

BRKT-CAMERA MOUNT,BLK

5266318-458

$49.99

42

ANTENNA,GPS,EXT

4017533

$90.24
