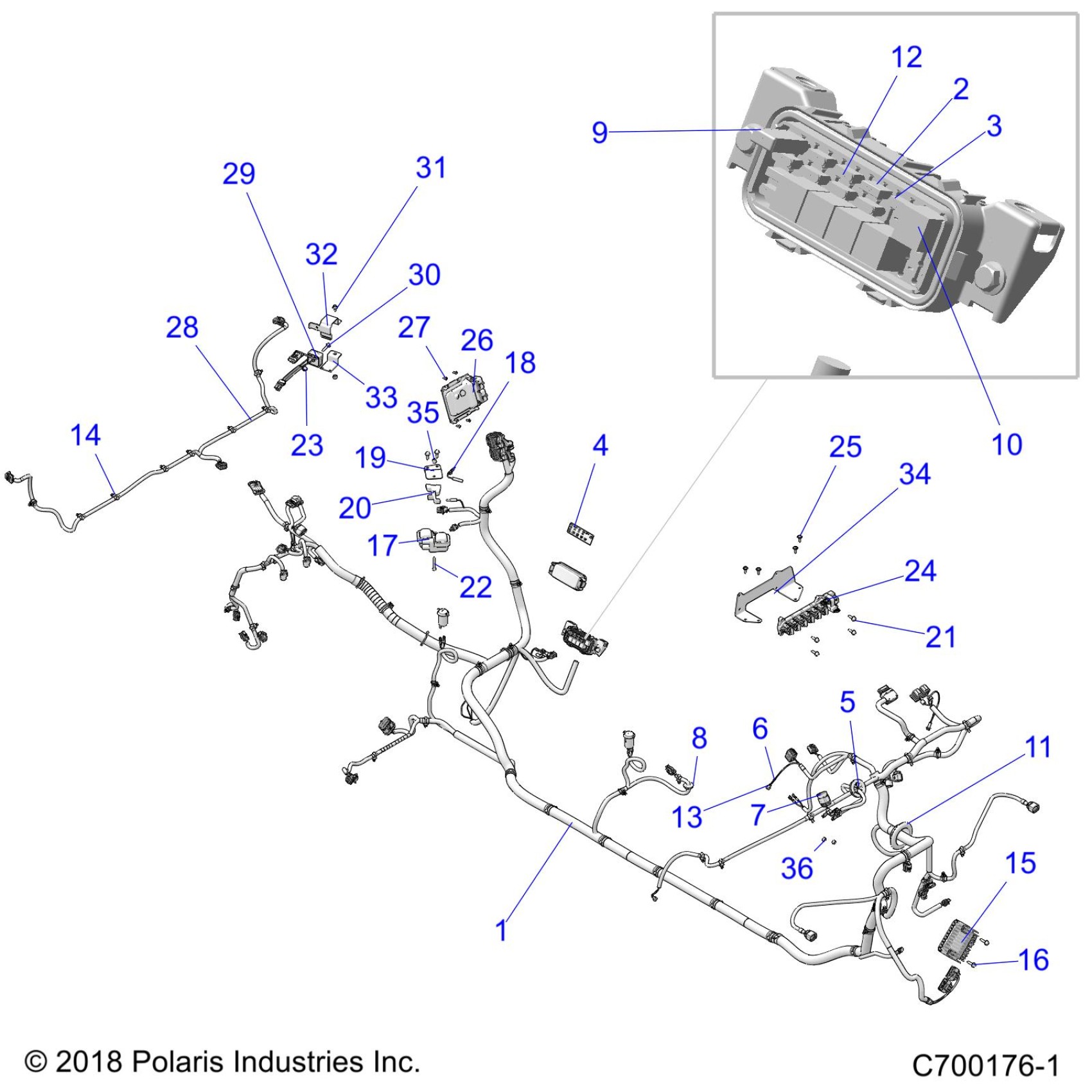

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK ELECTRICAL, WIRE HARNESS - R19RHE99AD/BD/LD (C700176-1) Diagram

#

Description
Price

1

HARNESS-CHASSIS,WNCH,DRIVE,CRW [INCL 2-14 ]

2414383

Unavailable

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

FUSE-MAIN,30 AMP

2434015

$7.19

4

LABEL, FUSE BOX

7185142

Unavailable

5

GROMMET-ELECTRICAL,CAB

5414440

$7.19

6

CLIP, ROUTING

7082020

$5.59

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.99

9

BREAKER-CIRCUIT,30A,MINI

4013894

$39.99

10

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

11

GROMMET

5813954

$7.19

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED, PANEL MOUNT

2413217

$51.99

14

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

15

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

17

COIL-EFI

4010425

Unavailable

18

JUMPER,COIL GROUND

4014422

$27.99

19

BRKT-COIL MOUNT

5260553

$14.39

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

22

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

BLOCK-TERMINAL,6 POS

4016007

$44.99

25

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

26

ECM-NO START,ME17

4014125

$694.99

27

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

28

HARNESS-BOX

2413051

$51.99

29

RELAY, SOLID STATE,9A,LONG LD

4012829

$71.99

30

SCREW

7518924

$7.99

31

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

32

BRKT-RELAY,INNER MOUNT,BLK [FROM 10/18/2018]

5267577-458

$27.99

32

BKT, MOUNT, RELAY, INNER, BLK [TO 10/18/2018]

5265227-458

$43.99

33

BRKT-RELAY,OUTER MOUNT,BLK [FROM 10/18/2018]

5267578-458

$26.39

33

BKT, MOUNT, RELAY,OUTER, BLK [TO 10/18/2018]

5265229-458

$35.99

34

BRKT-MOUNT,PULSE,BLK

5266257-458

$27.99

35

NUT-M6 FLANGE,NYLOC

7547274

$1.49

36

NUT-HXFLGHD,M6,SERRATED

7547270

$3.99
