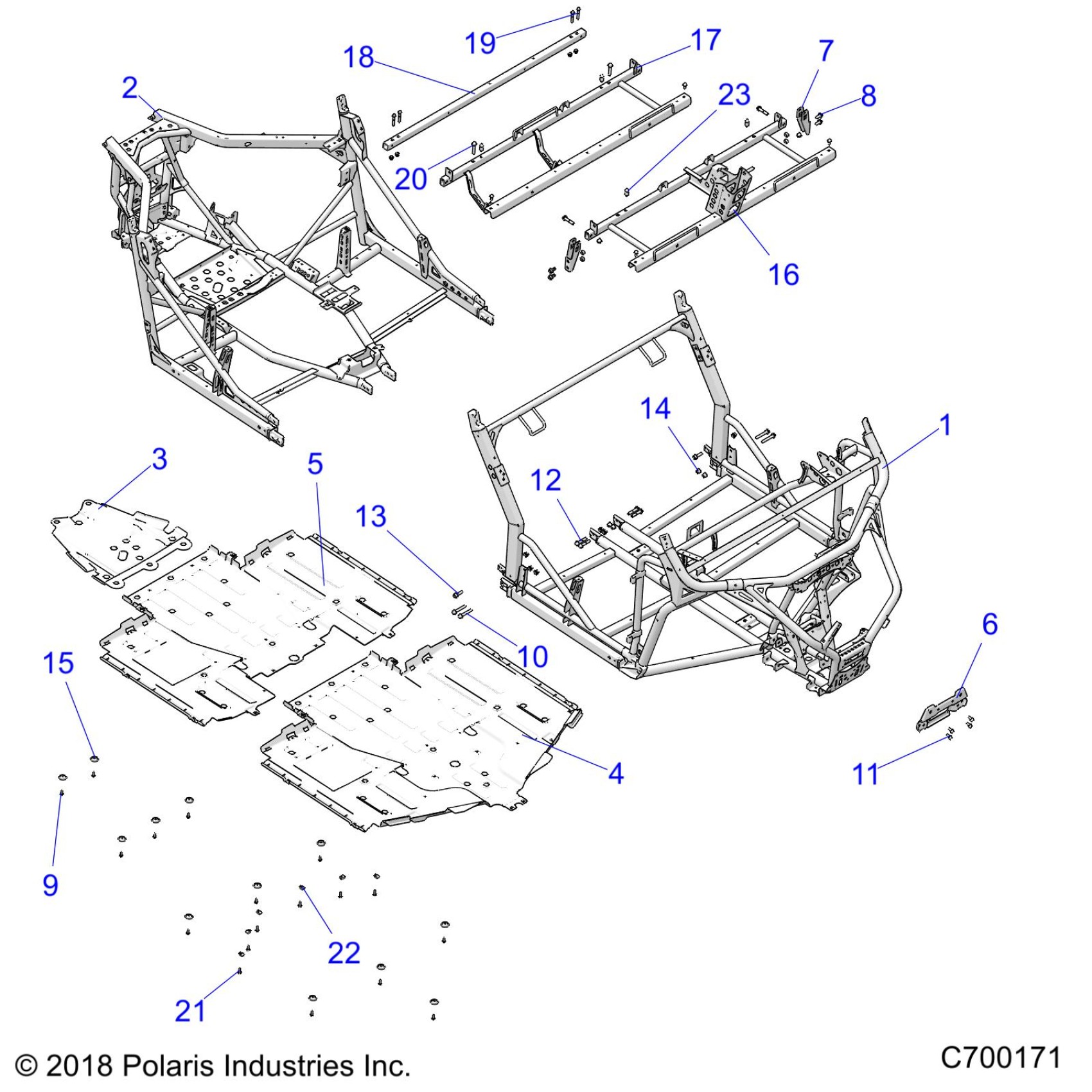

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK CHASSIS, MAIN FRAME AND SKID PLATES - R19RHE99AD/BD/LD/KAK/BK (C700171) Diagram

#

Description
Price

1

WELD-MAIN FRAME,FRONT,BLK

1024256-458

$2,437.59

2

WELD-MAIN FRAME,CREW,BLK

1024120-458

$2,173.59

3

PLATE-SKID,REAR,BLK

5450706-070

Unavailable

4

PLATE-SKID,BLK

5452060-070

$131.99

5

PLATE-SKID,CREW,BLK

5452851-070

$127.99

6

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

7

BRKT-SEAT SUPPORT,CREW,E-COAT

5262185-329

$47.99

8

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

BOLT-M10X1.25X70,HXFLG-OLIVE D

7518561

$7.19

11

BOLT

7518555

$2.39

12

SCREW

7519285

$2.39

13

SCREW

7519332

$5.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WASHER-SKID PLATE

7556065

$4.79

16

WELD-SEAT BASE,FRONT,E-COAT

1022146-329

$311.99

17

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$219.99

18

ASM-TUBE,TOP FRAME,E-COAT

1022891-329

$87.99

19

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

20

BOLT

7518474

$4.79

21

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

22

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

23

PLUNGER-LATCH,SEAT

5632848

$13.59
