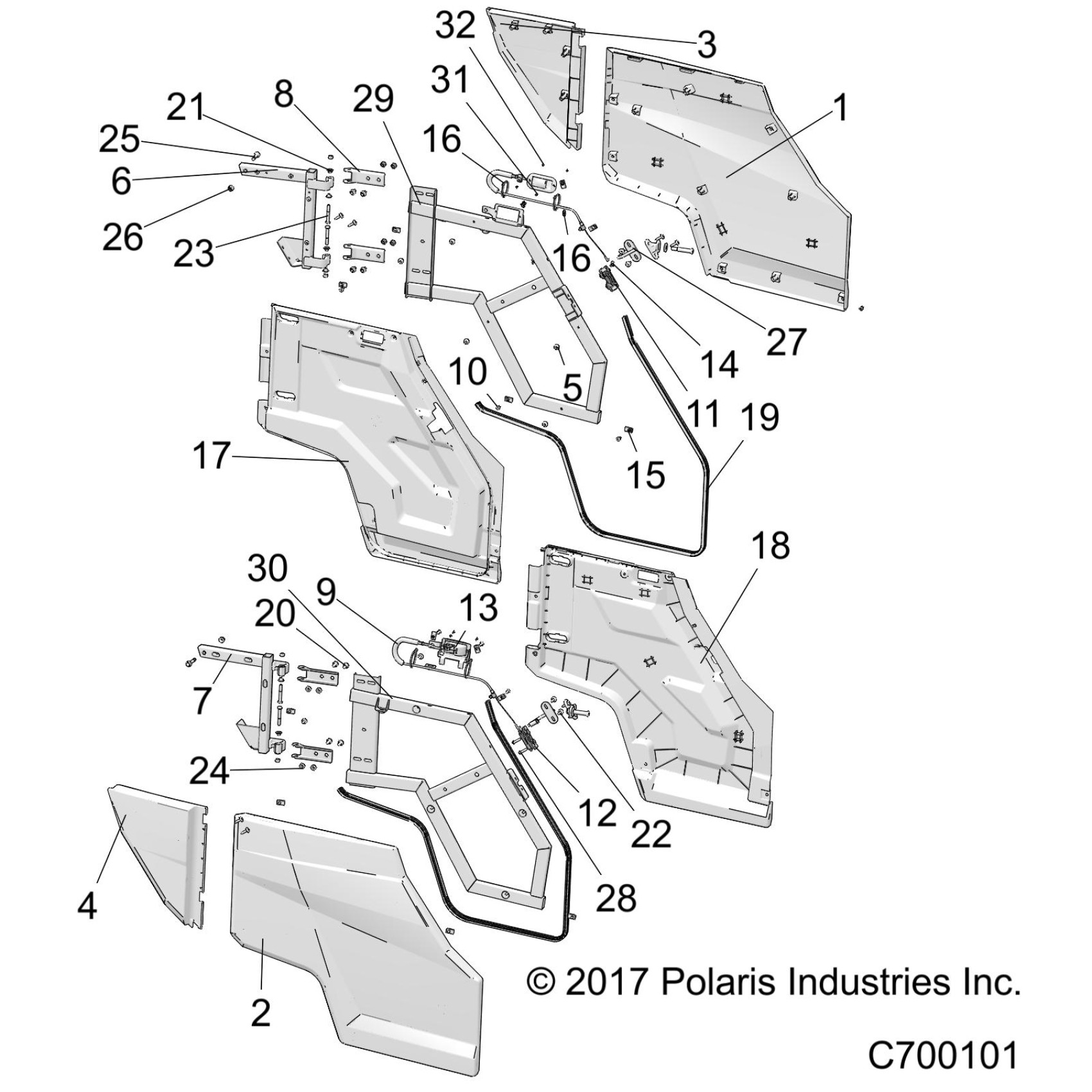

Polaris GENERAL 1000 4 EPS RC (R10) - R19RHE99AD/BD/LD/K99AK/BK BODY, DOORS, REAR - R19RHE99AD/BD/LD/KAK/BK (C700101) Diagram

PANEL-DOOR,OTR,RR,PNT,LH,B.PRL [K99AK,BK]

5454659-666

$829.99

PANEL-DOOR,OTR,RR,PNT,LH,M.W.P [E99AD,BD,LD]

5454659-675

$499.99

PANEL-DOOR,OTR,RR,PNT,RH,B.PRL [K99AK,BK]

5454662-666

$829.99

PANEL-DOOR,OTR,RR,PNT,RH,M.W.P [E99AD,BD,LD]

5454662-675

$499.99

COVER-BLSTR BAR,PNT,LH,BLK PRL [K99AK,BK]

5452953-666

$179.99

COVER-BLSTR BAR,PNT,LH,M.WT.PL [E99AD,BD,LD]

5452953-675

$194.99

COVER-BLSTR BAR,PNT,RH,BLK PRL [K99AK,BK]

5452954-666

$229.99

COVER-BLSTR BAR,PNT,RH,M.WT.PL [E99AD,BD,LD]

5452954-675

$194.99

SCR-TXTH-M6X1.0X20 T40 ZPB

7519112

Unavailable

WELD-BOLSTER,REAR,LH,BLK

1022761-458

$169.43

WELD-BOLSTER,REAR,RH,BLK

1022762-458

$169.43

BRKT-DOOR REAR HINGE,BLK

5263232-329

$44.51

CABLE-ADJUSTABLE REAR DOOR

7082482

$48.56

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.17

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$52.60

ASM-LATCH,RTRY,2 STAGE,RH

7082460

$52.60

ASM-HANDLE-DOOR,REAR

7082387

$67.76

CLIP-DOOR LATCH

5454637

$4.99

CLIP-U SPEED NUT

7081305

$1.98

CLIP-CABLE

5455529

$3.97

CLIP-CABLE

5455529

$3.97

PANEL-DOOR,INNER,REAR,LH,BLK

5454348-070

$141.65

PANEL-DOOR,INNER,REAR,RH,BLK

5454349-070

$141.65

SEAL-DOOR,REAR

5510932

$96.81

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

BUSHING-DOOR PIVOT

5450592

$2.38

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-HH-M8X1.25X55 8.8 ZOD

7519781

$4.76

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.38

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

WELD-STRIKER,REAR,BLK

1023631-458

$54.99

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.97

WELD-DOOR FRAME,REAR,LH,BLK

1023534-458

$324.35

WELD-DOOR FRAME,REAR,RH,BLK

1023535-458

$324.35

SCR-TXFH-M3X0.5X12 8.8 ZPB

7520905

$4.99

NUT-HEX-M3X0.5 8 ZY3

7547500

$3.97
