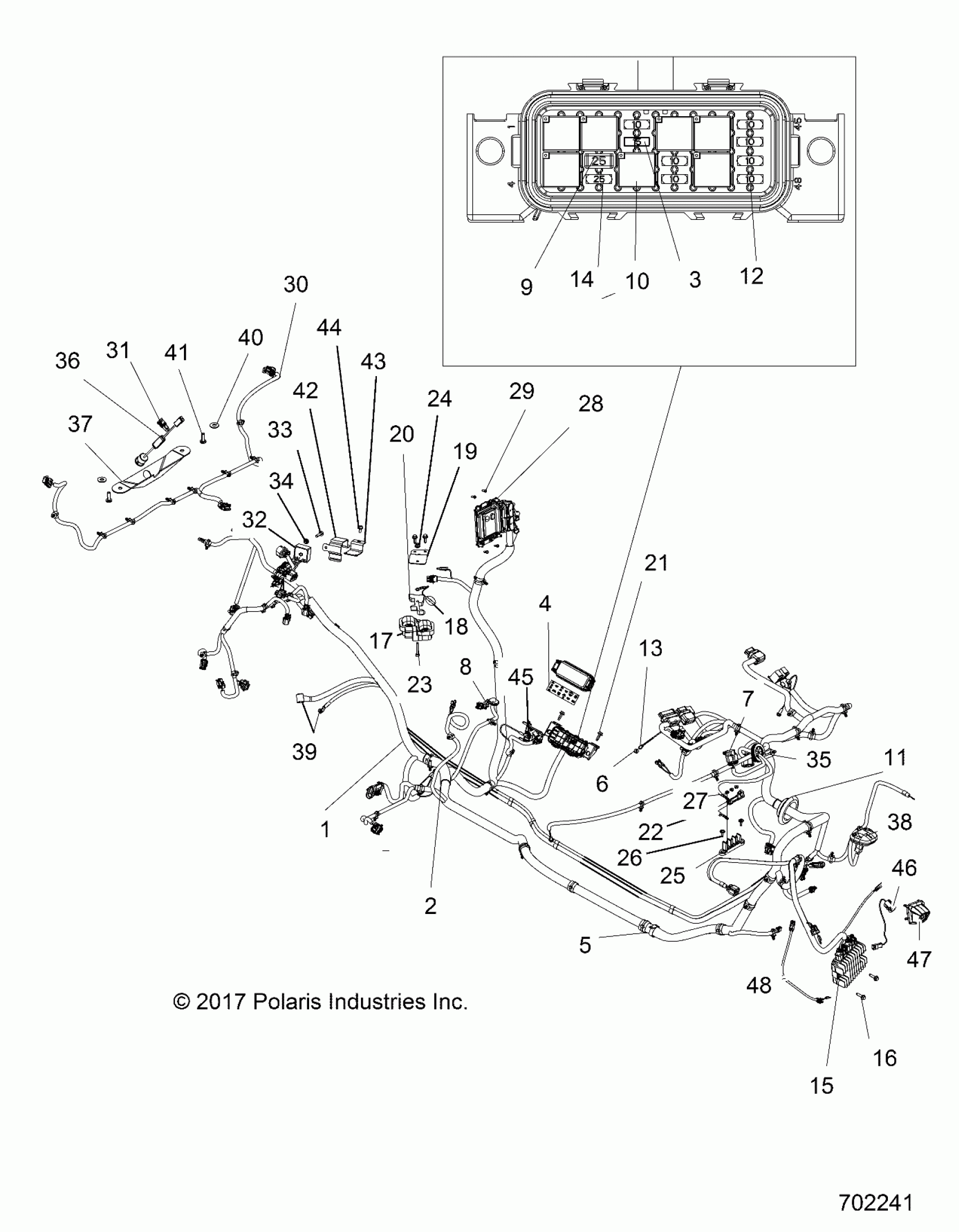

Polaris GENERAL 1000 4 EPS (R18) - R18RHE99BK/K99BS ELECTRICAL, WIRE HARNESS - R18RHK99BS (702241) Diagram

#

Description
Price

1

HARNESS-CHASSIS,4P,7" DISPLAY [INCL 2-14]

2414324

$1,499.99

2

LINK-FUSIBLE,2.0mm� X 160mm LONG (GY)

----

Unavailable

3

FUSE-MINI BLADE,15 AMP

2410280

$8.08

4

LABEL, FUSE BOX

7184204

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP, ROUTING

7082020

$5.56

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.97

9

BREAKER-CIRCUIT,25 AMP

4015771

$68.79

10

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

11

GROMMET

5813954

$8.99

12

FUSE-IGNITION,10 AMP

2434016

$5.65

13

LED, PANEL MOUNT

2413217

$52.60

14

FUSE-25A,MINI BLADE

4011653

$8.89

15

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

17

COIL-EFI

4010425

$242.84

18

JUMPER,COIL GROUND

4014422

$32.37

19

BRKT-COIL MOUNT

5260553

$14.56

20

SPACER-COIL MOUNT

5436577

$3.97

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

HARNESS-CHASSIS,ADAPTER,ACCY

2413521

$34.99

23

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.97

24

NUT-M6 FLANGE,NYLOC

7547274

$1.19

25

BLOCK-TERMINAL,3 POST,TALL

4015778

$32.37

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

27

NUTS-KEPS,10-32

7547341

$0.79

28

ECM-NO START,ME17

4014125

$749.99

29

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.17

30

HARNESS-BOX

2413051

$67.76

31

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

32

RELAY, SOLID STATE,9A,LONG LD

4012829

$94.99

33

SCREW

7519257

$3.97

34

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

35

GROMMET-ELECTRICAL,CAB

5414440

$7.14

36

CAM-MIRROR,CAMERA,APX

4015873

$251.74

37

BRKT-CAMERA MOUNT,BLK

5263045-458

$49.99

38

GPS-ANTENNA,RECEIVER,CAN

4014811

$436.99

39

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

40

WASHER-.312 X .734 X .065-Z

7558302

$1.59

41

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

42

BRKT-RELAY,INNER MOUNT,BLK [FROM 9/1/2018]

5267577-458

$33.87

42

BKT, MOUNT, RELAY, INNER, BLK [TO 9/1/2018]

5265227-458

$44.51

43

BRKT-RELAY,OUTER MOUNT,BLK [FROM 9/1/2018]

5267578-458

$29.99

43

BKT, MOUNT, RELAY,OUTER, BLK [TO 9/1/2018]

5265229-458

$36.41

44

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

45

NUT-HXFLGHD,M6,SERRATED

7547270

$3.97

46

CAMERA-FRONT,WIDE ANGLE

4016639

Unavailable

47

MOUNT-FRONT,CAMERA,GENERAL,BLK

5454204-070

$14.56

48

HARNESS-TEMP SENSOR

2413743

$74.99
