Description

Price

1

HARNESS-CHASSIS,WNCH,DRIVE,CRW [INCL 2-13 ]

2413874

$1,069.19

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

LABEL, FUSE BOX

7185142

Unavailable

4

LABEL, FUSE BOX

7185142

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP, ROUTING

7082020

$5.59

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

GROMMET-USB, 3 MM, 22 MM DIA

5415308

$3.99

9

BREAKER-CIRCUIT,30A,MINI

4013894

$39.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

GROMMET

5813954

$7.19

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED, PANEL MOUNT

2413217

$51.99

14

GROMMET-ELECTRICAL,CAB

5414440

$7.19

15

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

16

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

17

COIL-EFI

4010425

Unavailable

18

JUMPER,COIL GROUND

4014422

$27.99

19

BRKT-COIL MOUNT

5260553

$14.39

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

22

HARNESS-CHASSIS,ADAPTER,ACCY

2413521

$23.99

23

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

24

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

25

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

27

NUTS-KEPS,10-32

7547341

$1.49

28

ECM-NO START,ME17

4014125

$694.99

29

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

30

HARNESS-BOX

2413051

$51.99

31

SCREW

7519257

$3.99

32

RELAY, SOLID STATE,9A,LONG LD

4012829

$71.99

33

NUT-HXFLGHD,M6,SERRATED

7547270

$3.99

34

BRKT-RELAY,INNER MOUNT,BLK [FROM 9/1/2018]

5267577-458

$27.99

34

BKT, MOUNT, RELAY, INNER, BLK [TO 9/1/2018]

5265227-458

$43.99

35

BRKT-RELAY,OUTER MOUNT,BLK [FROM 9/1/2018]

5267578-458

$26.39

35

BKT, MOUNT, RELAY,OUTER, BLK [TO 9/1/2018]

5265229-458

$35.99

36

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

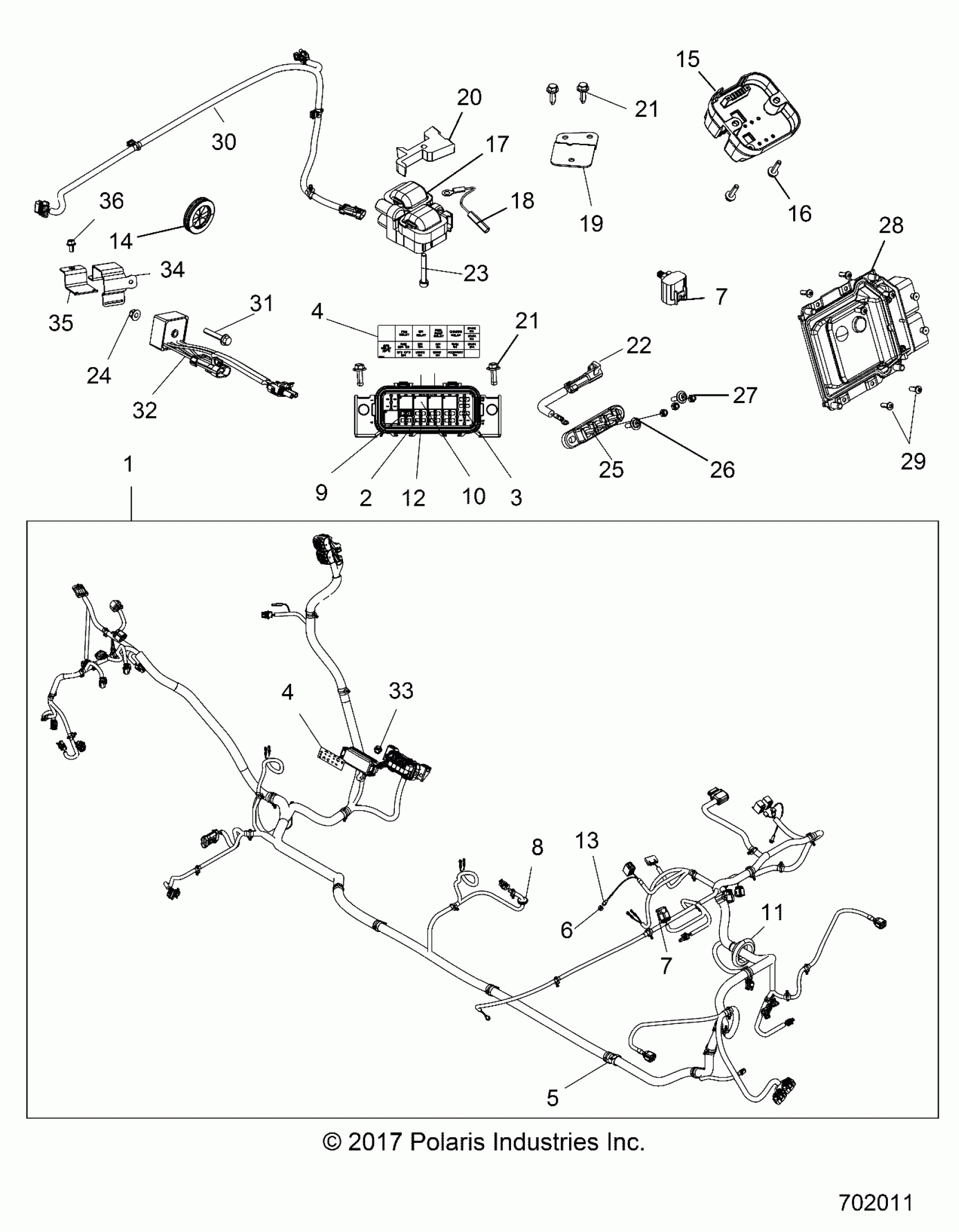

Polaris GENERAL 1000 4 EPS (R18) - R18RHE99BK/K99BS ELECTRICAL, WIRE HARNESS - R18RHE99BK (702011) Diagram

HARNESS-CHASSIS,WNCH,DRIVE,CRW [INCL 2-13 ]

FUSE-MINI BLADE,15 AMP

FUSE-PARK,20 AMP

LABEL, FUSE BOX

LABEL, FUSE BOX

CLIP FIR-TREE,DIA6-33MM

CLIP, ROUTING

COVER-DIAGNOSTIC,W/CLIP

COVER-DIAGNOSTIC,W/CLIP

GROMMET-USB, 3 MM, 22 MM DIA

BREAKER-CIRCUIT,30A,MINI

RELAY-SPST,SERIES 303,SEALED

GROMMET

FUSE-IGNITION,10 AMP

LED, PANEL MOUNT

GROMMET-ELECTRICAL,CAB

REGULATOR-3PH,50A,SERIES,HISPD

SCR-TFHFL-M6X1.0X25,ZOD

COIL-EFI

JUMPER,COIL GROUND

BRKT-COIL MOUNT

SPACER-COIL MOUNT

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

HARNESS-CHASSIS,ADAPTER,ACCY

SCR-M6X1.0X40,HX/SOC/CP-B

NUT- M8X1.25, FLG, NYLOC-OLIVE D

BLOCK-TERMINAL,3 POST,TALL

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

NUTS-KEPS,10-32

ECM-NO START,ME17

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

HARNESS-BOX

SCREW

RELAY, SOLID STATE,9A,LONG LD

NUT-HXFLGHD,M6,SERRATED

BRKT-RELAY,INNER MOUNT,BLK [FROM 9/1/2018]

BKT, MOUNT, RELAY, INNER, BLK [TO 9/1/2018]

BRKT-RELAY,OUTER MOUNT,BLK [FROM 9/1/2018]

BKT, MOUNT, RELAY,OUTER, BLK [TO 9/1/2018]

SCR-HXFL-M6X1.0X12 8.8 ZPB
