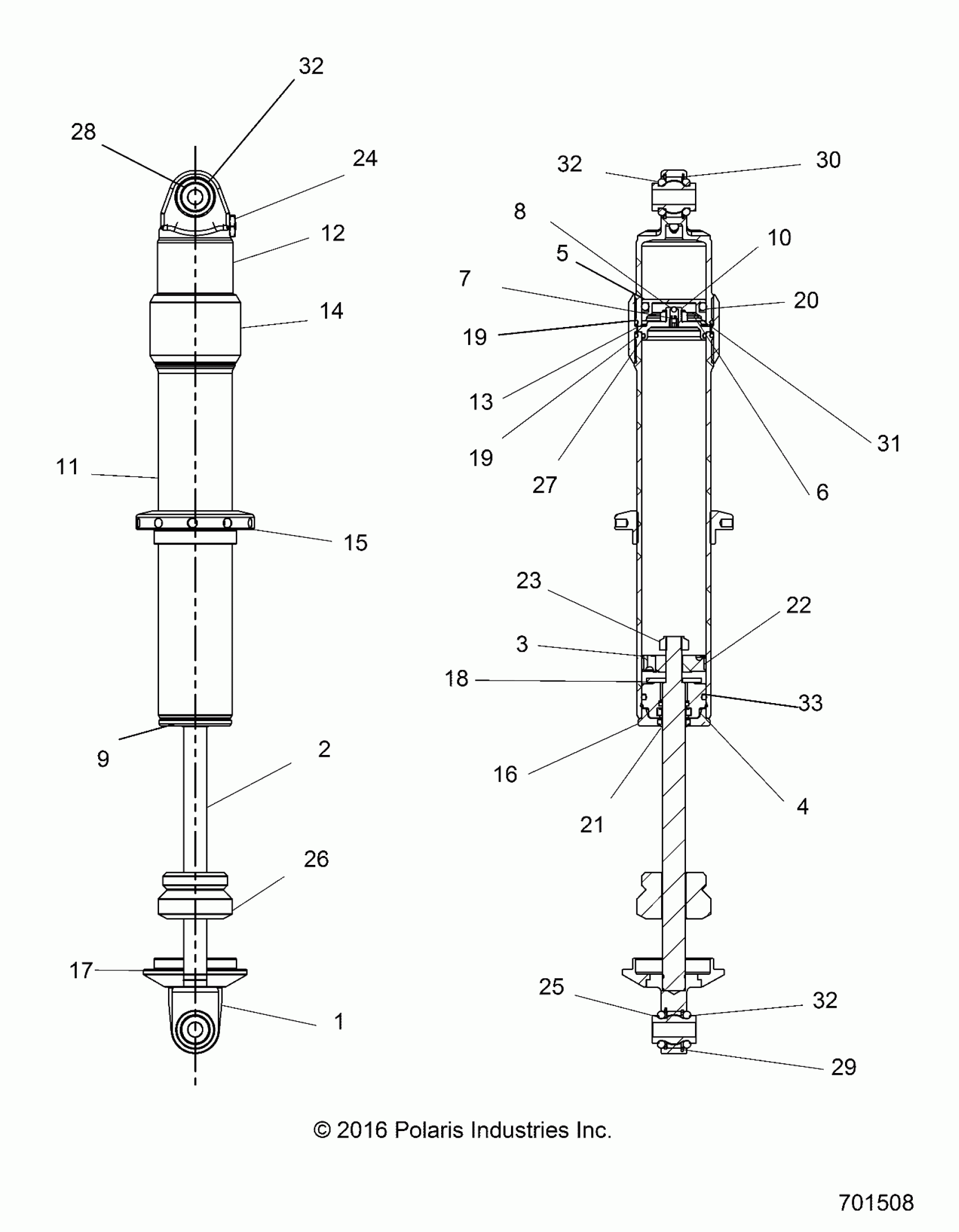

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU SUSPENSION, REAR SHOCK INTERNALS - R17RHE99AU (701508) Diagram

#

Description
Price

-

SHOCK-REAR,BULB

7044711

$576.83

1

SHAFT LOOP

1800792

$169.99

2

SHAFT

1800813

$128.56

3

PISTON, 2.0, .47L, NO BLD (W/ VALVING)

1800604

$104.49

3

PISTON, 2.0, .47L, NO BLD (W/ VALVING)

1800604

$104.49

4

RING, RETAINING WIRE

1800795

$7.27

5

PISTON, RESERVOIR, BASE VALVE

1800798

$91.97

6

SHIM

1800631

$9.70

7

SCREW, CHECK BALL

1800804

$10.99

8

CHECK BALL

1800531

Unavailable

9

CAP, WIPER

1800794

$49.99

10

NUT, NYLOCK

1800807

$8.79

11

BODY, MONOTUBE BASE VALVE LOWER

1800814

Unavailable

12

BODY, LOOP-RESERVOIR BASSE VALVE

1800797

Unavailable

13

BASE VALVE

1800799

Unavailable

14

UNION MONOTUBE BASE VALVE

1800796

Unavailable

15

SPRING ADJUSTER

1800802

$43.56

16

ASM,SEAL HEAD

1800801

$39.99

17

SPRING, RETAINER

1501194

$59.99

18

WASHER

1800393

$51.99

19

ORING

1800803

$3.63

20

ORING

1800184

$5.65

21

WIPER

1800034

$31.99

22

BAND, PISTON WEAR

1800185

$39.99

23

NUT, CRIMP

1800164

$9.59

24

ASM-CHARGE PORT

1800805

$36.41

25

RING, SNAP

1800041

$7.27

26

BUMP STOP

1800593

$63.99

27

ORING

1800806

$6.46

28

BEARING

1800808

$59.99

29

BEARING

1800809

$59.99

30

RING, RETAINER

1800482

$10.39

31

WASHER

1800187

$5.59

32

O-RING

1800810

$3.63

32

O-RING

1800810

$3.63

32

O-RING

1800810

$3.63

33

O-RING BODY LOOP

1800030

$2.02
