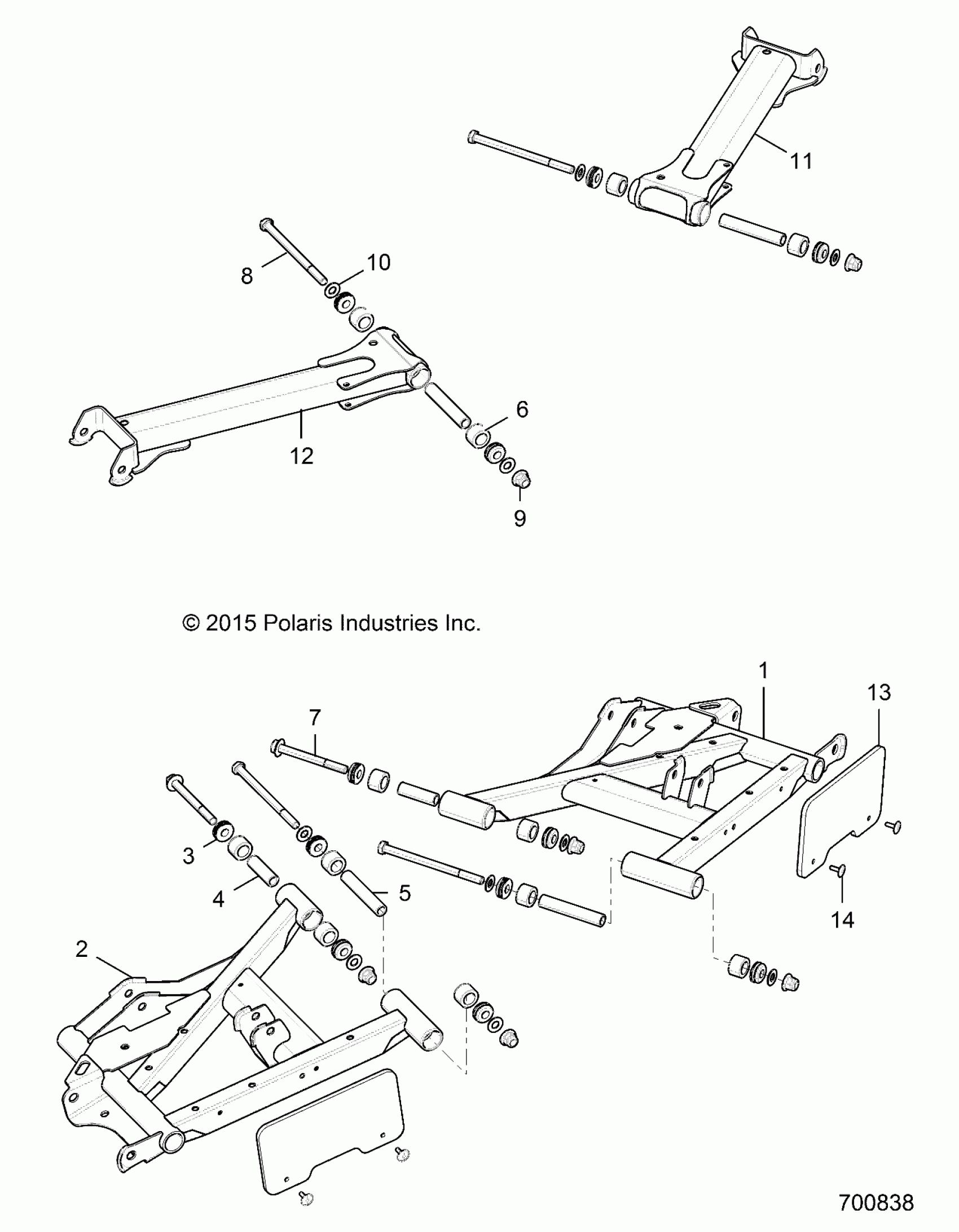

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU SUSPENSION, REAR CONTROL ARMS - R17RHE99AU (700838) Diagram

#

Description

Price

1

WELD-A-ARM,REAR,LWR,LH,60,BLK

1021414-458

$155.99

2

WELD-A-ARM,REAR,LWR,RH,60,BLK

1021415-458

$155.99

3

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

4

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

5

SHAFT-PIVOT,LONG,M10

5139967

$8.79

6

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

7

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

8

SCR-HH-M10X1.25X140,10.9 ZOD

7519897

$13.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WELD-A-ARM,REAR,UPR,LH,60,BLK

1021412-458

$99.99

12

WELD-A-ARM,REAR,UPR,RH,60,BLK

1021413-458

$99.99

13

SHIELD-CV,REAR,BLK

5451336-070

$27.99

14

RVT-3/16(.251-.375)ST-ST-LF-B

7621467

$1.49
