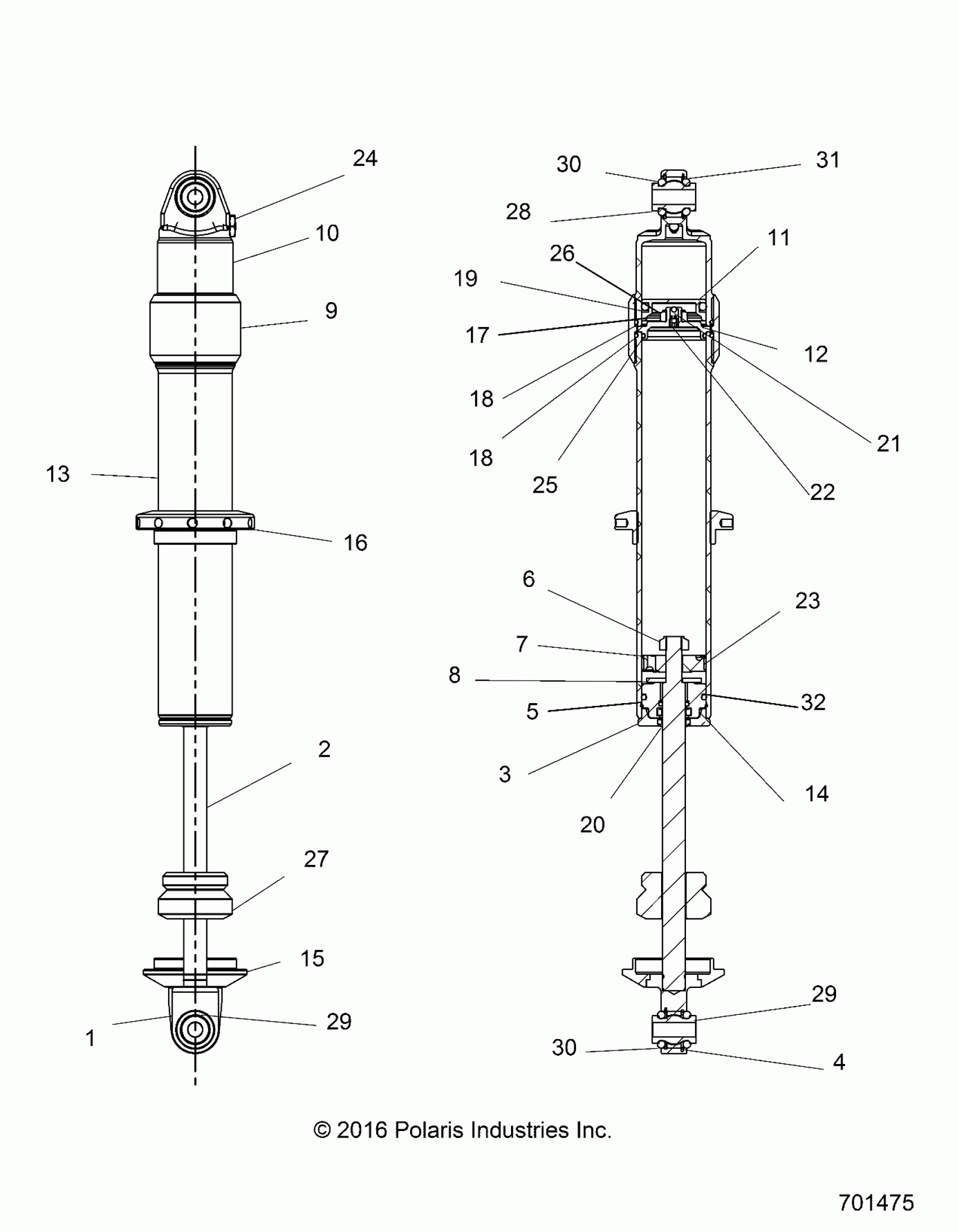

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU SUSPENSION, FRONT SHOCK INTERNALS - R17RHE99AU (701475) Diagram

#

Description
Price

-

SHOCK-FRONT,BULB

7044710

$689.99

1

SHAFT LOOP

1800792

$179.99

2

SHAFT

1800793

$109.51

3

CAP, WIPER

1800794

$54.99

4

RING, SNAP

1800041

$8.08

5

RING, RETAINING WIRE

1800795

$8.08

6

NUT, CRIMP

1800164

$9.52

7

PISTON

1800604

$129.99

8

WASHER

1800393

Unavailable

9

UNION MONOTUBE BASE VALVE

1800796

Unavailable

10

BODY, LOOP-RESERVOIR BASSE VALVE

1800797

Unavailable

11

PISTON, RESERVOIR, BASE VALVE

1800798

$96.81

12

BASE VALVE

1800799

Unavailable

13

BODY, MONOTUBE BASE VALVE LOWER

1800800

Unavailable

14

ASM,SEAL HEAD

1800801

$39.99

15

SPRING, RETAINER

1501194

$59.52

16

SPRING ADJUSTER

1800802

$43.56

17

SHIM

1800631

$9.70

18

ORING

1800803

$3.63

18

ORING

1800803

$3.63

19

ORING

1800184

$5.65

20

WIPER

1800034

$36.41

21

CHECK BALL

1800570

$53.24

22

SCREW, CHECK BALL

1800804

$10.99

23

BAND, PISTON WEAR

1800185

$44.51

24

ASM-CHARGE PORT

1800805

$40.46

25

ORING

1800806

$6.46

26

NUT, NYLOCK

1800807

Unavailable

27

BUMP STOP

1800593

$80.74

28

BEARING

1800808

$59.99

29

BEARING

1800809

$59.99

29

BEARING

1800809

$59.99

30

O-RING

1800810

$3.63

30

O-RING

1800810

$3.63

31

RING, RETAINER

1800482

$13.54

32

O-RING BODY LOOP

1800030

$1.37
