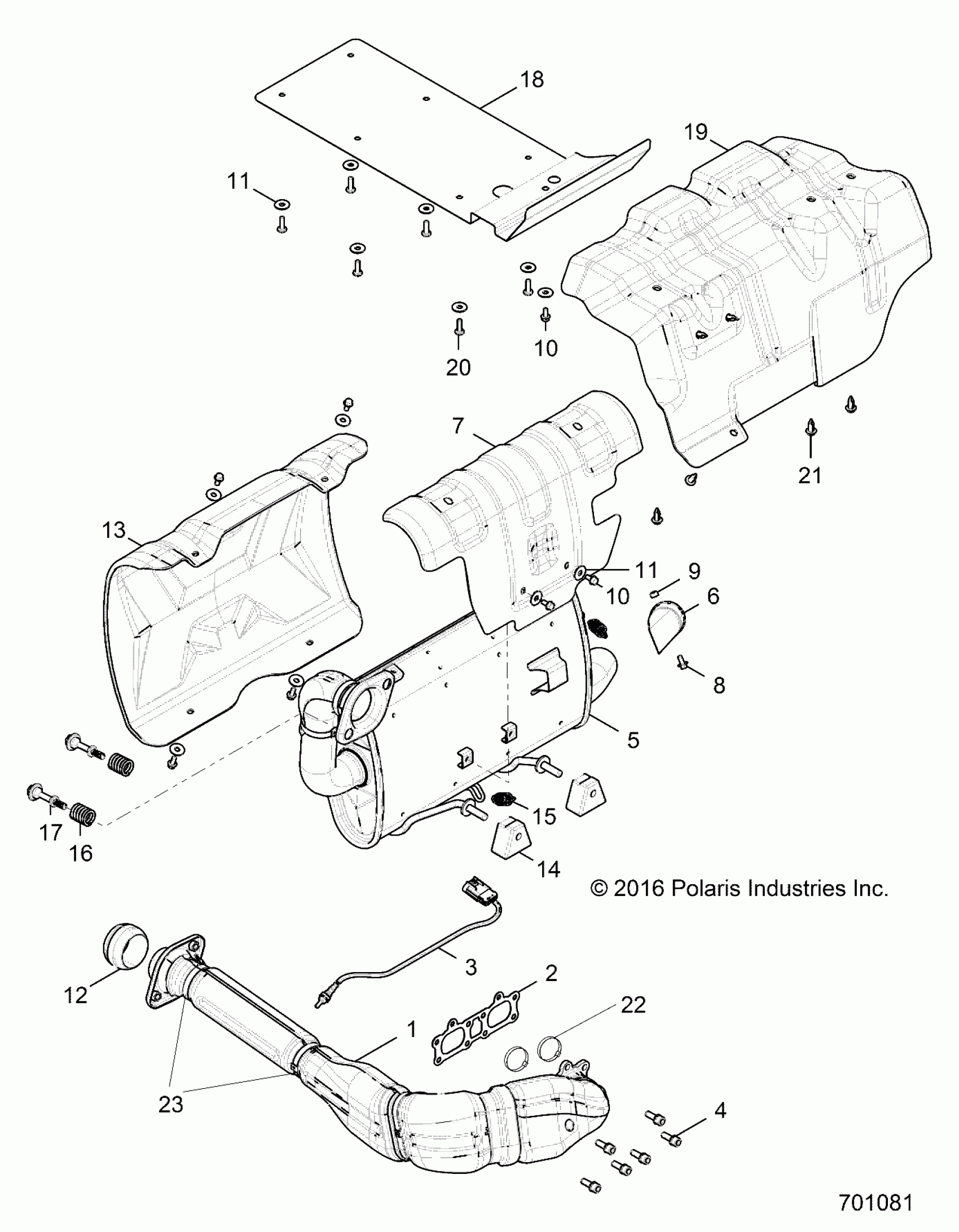

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU ENGINE, EXHAUST SYSTEM - R17RHE99AU (701081) Diagram

#

Description
Price

1

ASM-HEADPIPE

1262674

$475.19

2

GASKET-EXHAUST SEAL

3610184

$48.56

3

SENSOR-OXYGEN

4016021

$159.99

4

SCR-M8X1.25X22,HX/SO

7518984

$7.99

5

ASM-SILENCER [INCL. 6-9, QTY 2 OF 10 &11]

1262670

$615.99

6

WELD-SPARK ARRESTOR,AVA875

1262123

$47.99

7

SHIELD-SILENCER

5260630

$75.99

8

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

9

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

10

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

11

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

11

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

12

GASKET-DOUBLE SPHERICAL,2"

3610248

$35.99

13

SHIELD-SILENCER,OUTER,BLK

5260918-458

$119.99

13

SHIELD-SILENCER,OUTER,BLK TO 8/8/2016

5262574-458

Unavailable

14

MNT-ISOLATOR

5450115

$14.39

15

SPRING-EXHAUST

7041804

$7.99

16

SPRING-SPHERICAL,EXHAUST

7044274

$14.39

17

STUD-SPHERICAL,EXHAUST

7520079

$13.59

18

SHIELD-BOX

5262269

$43.99

19

SHIELD-FOIL

5814260

$75.99

20

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

21

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

22

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

23

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19
