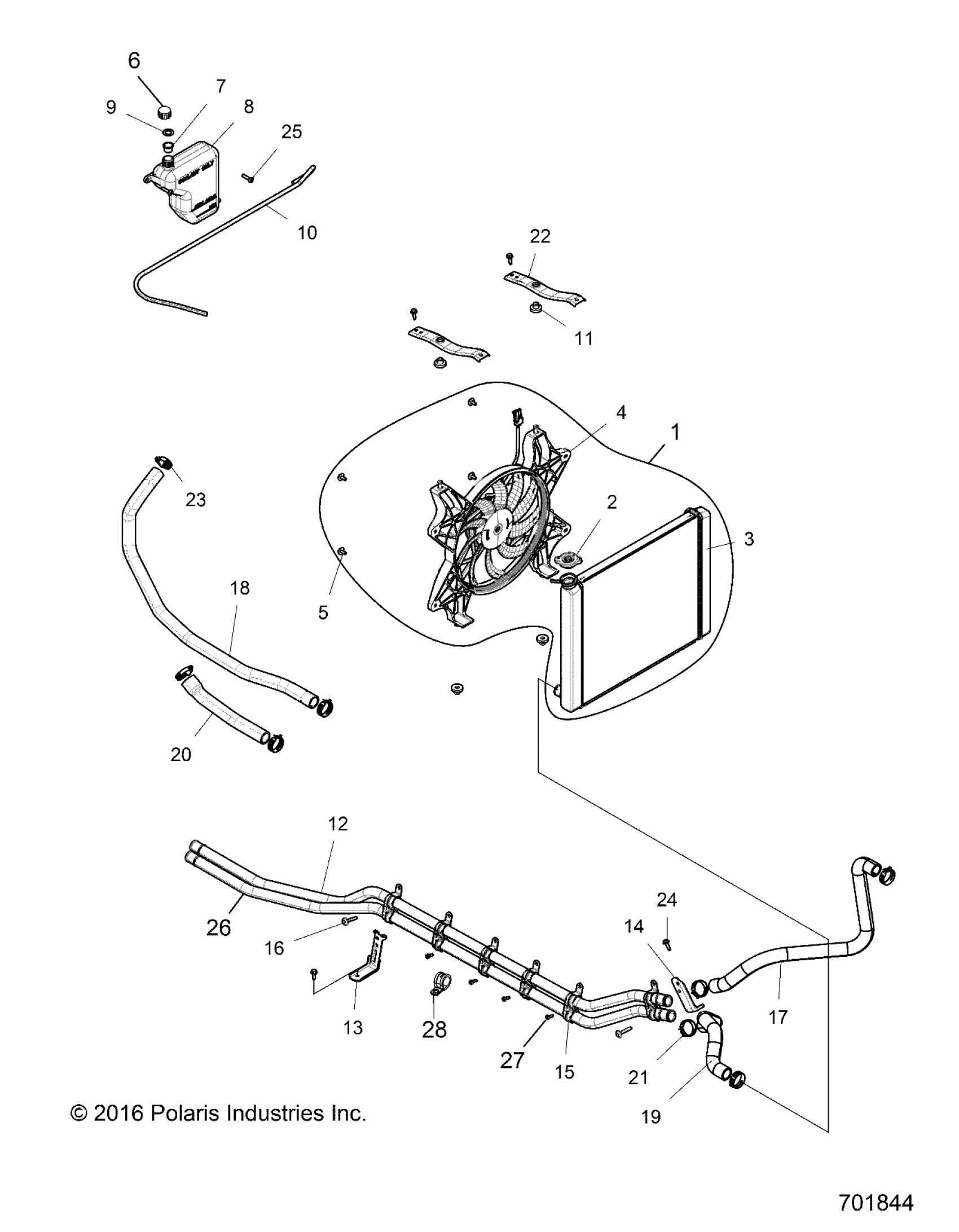

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU ENGINE, COOLING SYSTEM - R17RHE99AU (701844) Diagram

#

Description
Price

1

ASM., RADIATOR [INCL. 2-5]

-------

Unavailable

2

CAP

1240694

$39.99

3

ASM., RADIATOR, CORE

1241135

$460.19

4

FAN, ASM.

2413044

$315.99

5

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

Line, Fuel

8450003-1525

Unavailable

11

GROMMET, FLANGED

7052028

$6.39

12

TUBE-COOLANT,1"

5140403

Unavailable

13

BRACKET, COOLANT TUBE, BLACK

5259433-329

$27.99

14

BRACKET, COOLANT TUBE, BLACK

5260766-329

$27.99

15

BRACKET-COOLANT TUBE

5451221

$8.79

16

SCREW

7519001

$3.99

17

HOSE, UPPER, RADIATOR

5414528

$63.99

18

HOSE-ENGINE OUTLET

5415451

$43.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE-ENGINE INLET

5415452

$27.99

21

SPRINGBAND, CLAMP

7080844

$10.39

22

BRACKET, UPPER RADIATOR MOUNT, BLACK

5263390-329

$35.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

TUBE-COOLANT,1"

5140404

Unavailable

27

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

28

CLIP-P,1IN

7082306

$7.99
