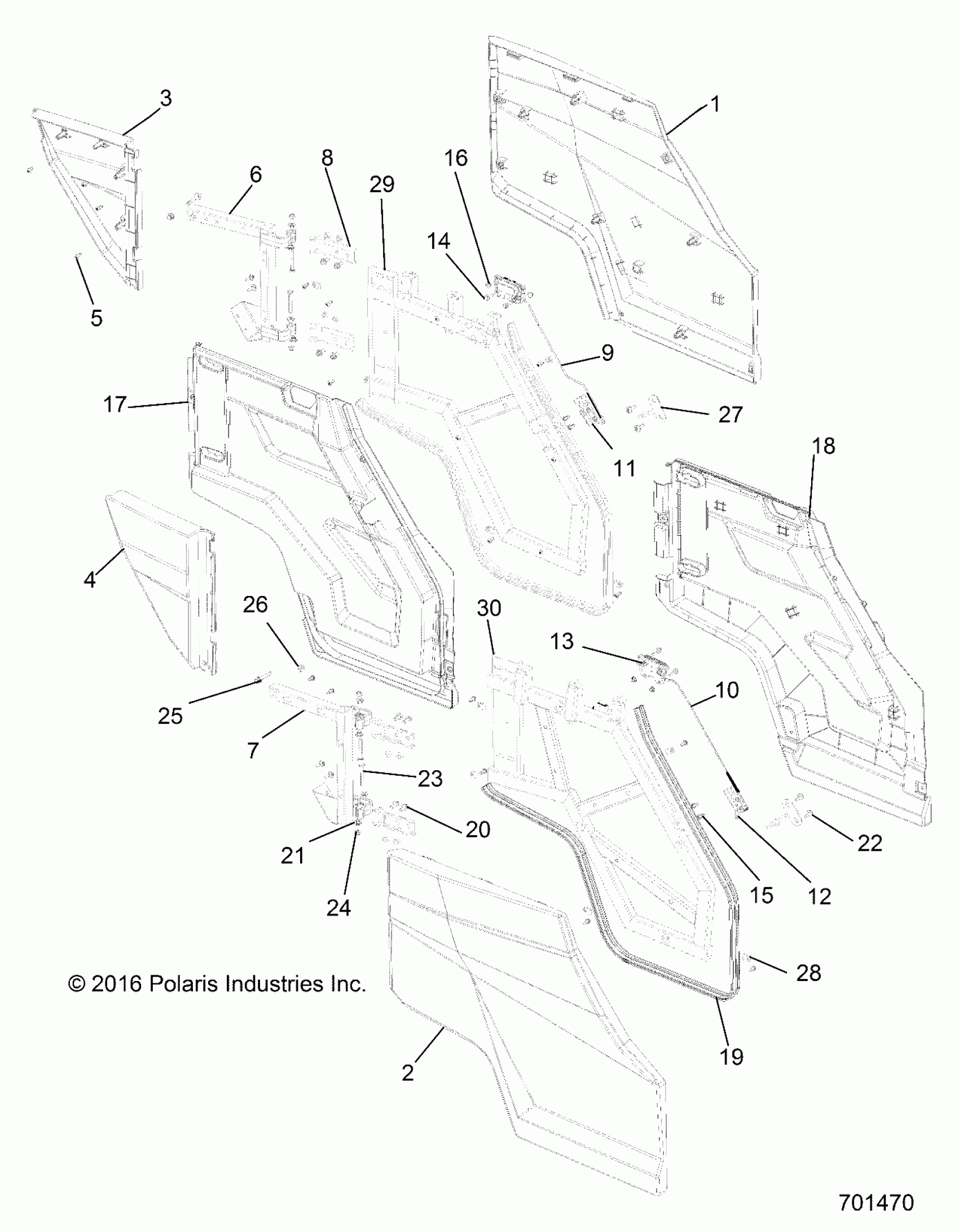

Polaris GENERAL 1000 4 EPS (R18) - R17RHE99AU BODY, DOORS, REAR - R17RHE99AU (701470) Diagram

#

Description
Price

1

PANEL-DOOR,OTR,RR,PNT,LH,T.SIL

5452945-402

Unavailable

2

PANEL-DOOR,OTR,RR,PNT,RH,T.SIL

5452946-402

Unavailable

3

COVER-BOLSTER BAR,PNT,LH,T.SIL

5452953-402

$163.99

4

COVER-BOLSTER BAR,PNT,RH,T.SIL

5452954-402

$163.99

5

SCR-TXTH-M6X1.0X20 T40 ZPB

7519112

Unavailable

6

WELD-BOLSTER,REAR,LH,BLK

1022761-458

$131.99

7

WELD-BOLSTER,REAR,RH,BLK

1022762-458

$131.99

8

BRKT-DOOR REAR HINGE,BLK

5263232-329

$43.99

9

ROD-LATCH,REAR,LH

5339711

$35.99

10

ROD-LATCH,REAR,RH

5339712

$35.99

11

ASM-LATCH,ROTARY,LH

7082199

$47.99

12

ASM-LATCH,ROTARY,RH

7082200

$51.99

13

ASM-HANDLE,DOOR

7082201

$47.99

14

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19

15

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

16

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

17

PANEL-DOOR,INNER,RR,LH,BLK

5452947-070

Unavailable

18

PANEL-DOOR,INNER,RR,RH,BLK

5452948-070

Unavailable

19

SEAL-DOOR,REAR [FROM 1/23/17]

5510932

$79.99

19

SEAL-DOOR,REAR [TO 1/23/17]

5510910

Unavailable

20

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

21

BUSHING-DOOR PIVOT

5450592

$2.39

22

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

23

SCR-HH-M8X1.25X55 8.8 ZOD

7519781

$4.79

24

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

25

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

27

WELD-STRIKER,REAR

1022873

$35.99

28

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

29

WELD-DOOR FRAME,REAR,LH,BLK

1022270-458

$255.99

30

WELD-DOOR FRAME,REAR,RH,BLK

1022271-458

$255.99
