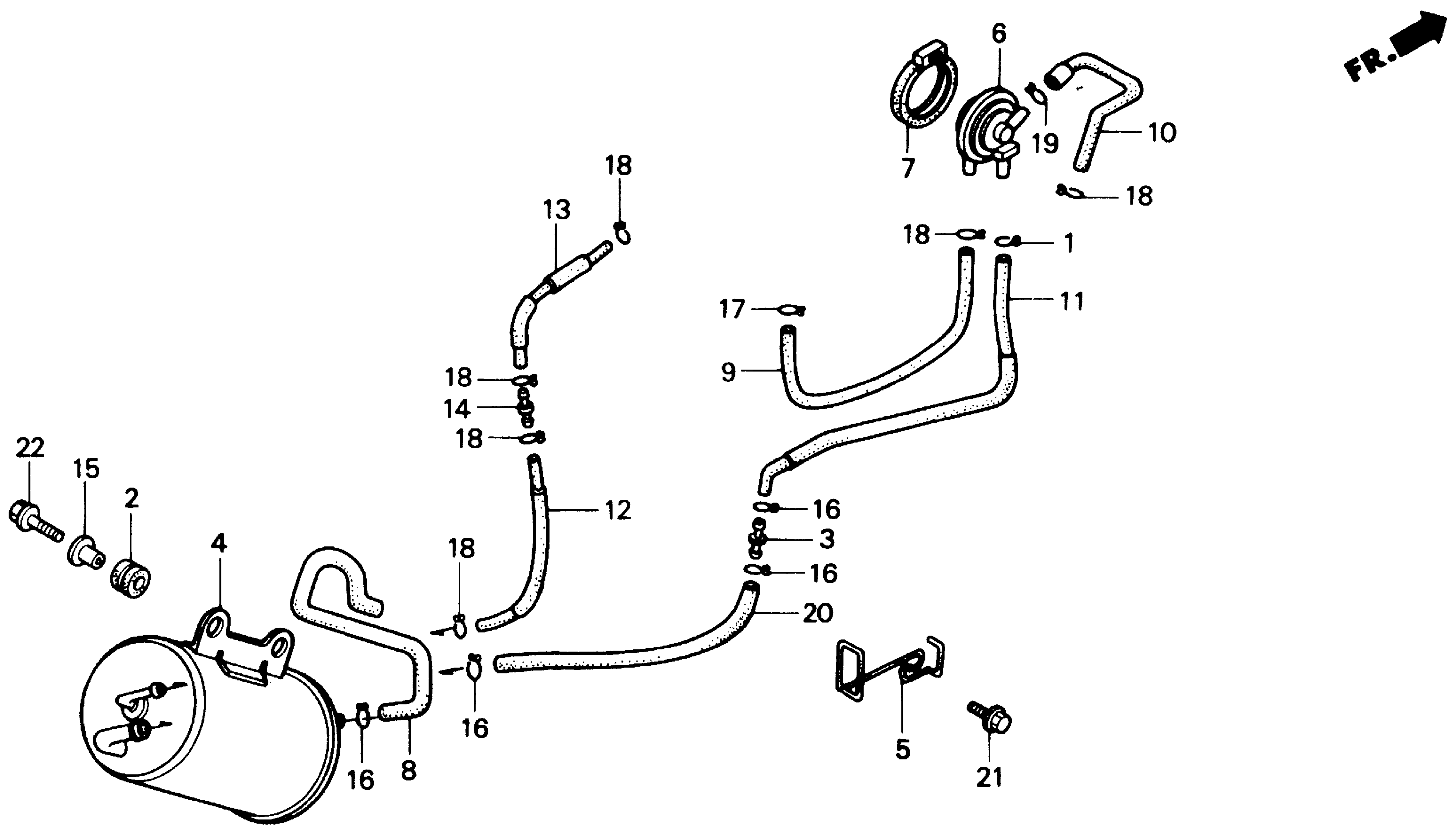

Honda GB500AC (90) TOURIST TROPHY, JPN, VIN# JH2PC161-LK100001 CANISTER (AC) Diagram

#

Description
Price

1

CLIP, PURGE CONTROL VALVE TUBE

15772-MB3-000

Unavailable

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

3

JOINT, BREATHER TUBE

17359-419-670

$1.95

4

CANISTER (NOT AVAILABLE)

17410-MK6-741

Unavailable

5

GUIDE, CANISTER TUBE (NOT AVAILABLE)

17415-MK6-740

Unavailable

6

EVAPORATIVE EMISSION PURGE CONTROL VALVE

17440-MK6-741

$122.46

7

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

8

TUBE, AIR (NOT AVAILABLE)

17464-MK6-740

Unavailable

9

TUBE, CARBURETOR PURGE CONTROL VALVE (NOT AVAILABLE)

17465-MK6-740

Unavailable

10

TUBE, PURGE (NOT AVAILABLE)

17466-MK6-740

Unavailable

11

TUBE A, PURGE (NOT AVAILABLE)

17467-MK6-740

Unavailable

12

TUBE A, CHARGE (NOT AVAILABLE)

17468-MK6-740

Unavailable

13

TUBE B, CHARGE (NOT AVAILABLE)

17469-MK6-740

Unavailable

14

JOINT B, WASHER TUBE (MITSUBA)

38562-663-920

$8.56

15

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

15

COLLAR, FR. FENDER (WHITE)

61104-428-010

$4.42

15

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.21

16

CLIP, TUBE (B12.5)

90651-MK3-780

$1.54

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLIP, TUBE (B8)

95002-02080

$1.80

19

CLIP, TUBE (B10)

95002-02100

$1.90

20

BULK HOSE, VACUUM (8X1000) (8X300)

95005-80001-20M

$23.91

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
