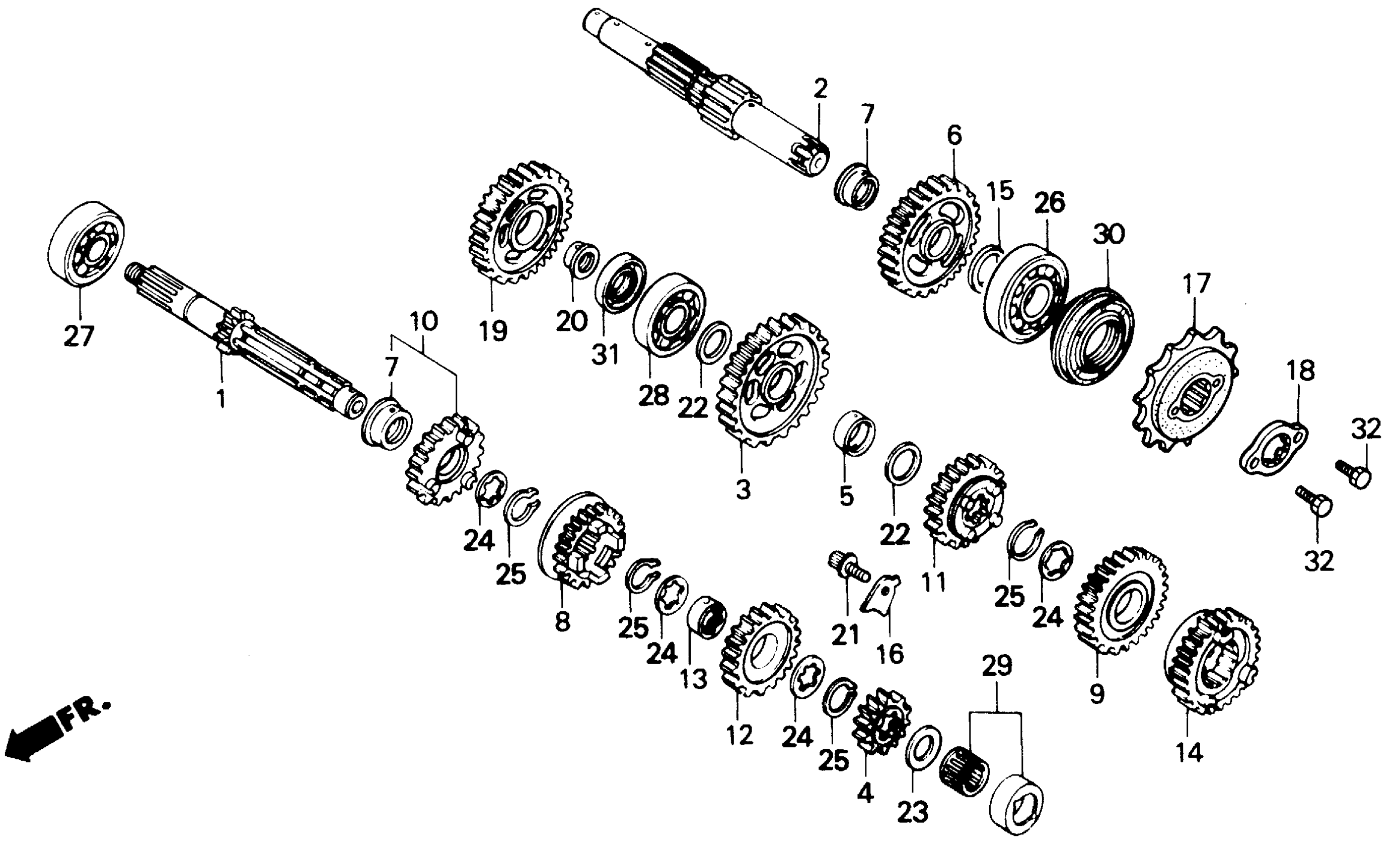

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23211-MN1-670

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-MK4-621

Unavailable

3

GEAR, COUNTERSHAFT LOW (31T) (NOT AVAILABLE)

23411-MN1-670

Unavailable

4

GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)

23421-MK4-600

Unavailable

5

BUSH (20MM)

23422-MG2-000

$23.00

6

GEAR, COUNTERSHAFT SECOND (28T) (NOT AVAILABLE)

23431-MK4-600

Unavailable

7

BUSH (25MM) This part replaces 23432-MG3-000.

23432-MN1-670

$27.93

7

BUSH (25MM)

23432-MN1-670

$27.93

8

GEAR, MAINSHAFT THIRD (20T) (NOT AVAILABLE)

23441-MK4-600

Unavailable

9

GEAR, COUNTERSHAFT THIRD (24T) (NOT AVAILABLE)

23451-MK4-600

Unavailable

10

GEAR, MAINSHAFT FOURTH (23T) This part replaces 23461-MN1-670.

23461-MN1-671

Unavailable

10

GEAR, MAINSHAFT FOURTH (23T)

23461-MN1-671

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (23T) (SOURCE: VINTAGE PARTS INC.)

23471-MG2-790

Unavailable

12

GEAR, MAINSHAFT FIFTH (24T) (NOT AVAILABLE)

23481-MK4-600

Unavailable

13

BUSH, SPLINE (28MM)

23485-369-000

$29.59

14

GEAR, COUNTERSHAFT FIFTH (21T) (NOT AVAILABLE)

23491-MK4-600

Unavailable

15

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

23522-MG3-000

Unavailable

16

PLATE, BEARING SETTING

23531-MG2-790

$4.46

17

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-ML0-010

Unavailable

18

PLATE, FIXING (NOT AVAILABLE)

23811-MJ8-000

Unavailable

19

GEAR, KICK STARTER IDLE (33T) (NOT AVAILABLE)

28221-MN1-670

Unavailable

20

BUSH (16MM)

28222-MG3-000

Unavailable

21

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

22

PLATE, THRUST (20MM)

90451-MG3-000

$4.13

23

PLATE, THRUST (20MM) (NOT AVAILABLE)

90451-MK4-600

Unavailable

24

WASHER, THRUST (25MM)

90451-413-000

$3.26

25

CIRCLIP (25MM)

90601-107-000

$3.74

26

BEARING, RADIAL BALL (6305) (TOYO)

91002-MG2-791

$41.07

27

BEARING, RADIAL BALL (5205A)

91002-422-008

$68.41

28

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

28

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

29

BEARING, NEEDLE (20MM)

91022-MG2-791

$46.80

30

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

31

OIL SEAL (20X35X5.5) (ARAI)

91204-216-003

$6.31

32

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

32

BOLT, HEX. (6X18) This part replaces 92201-06018-0A.

92101-06018-0A

$1.49
