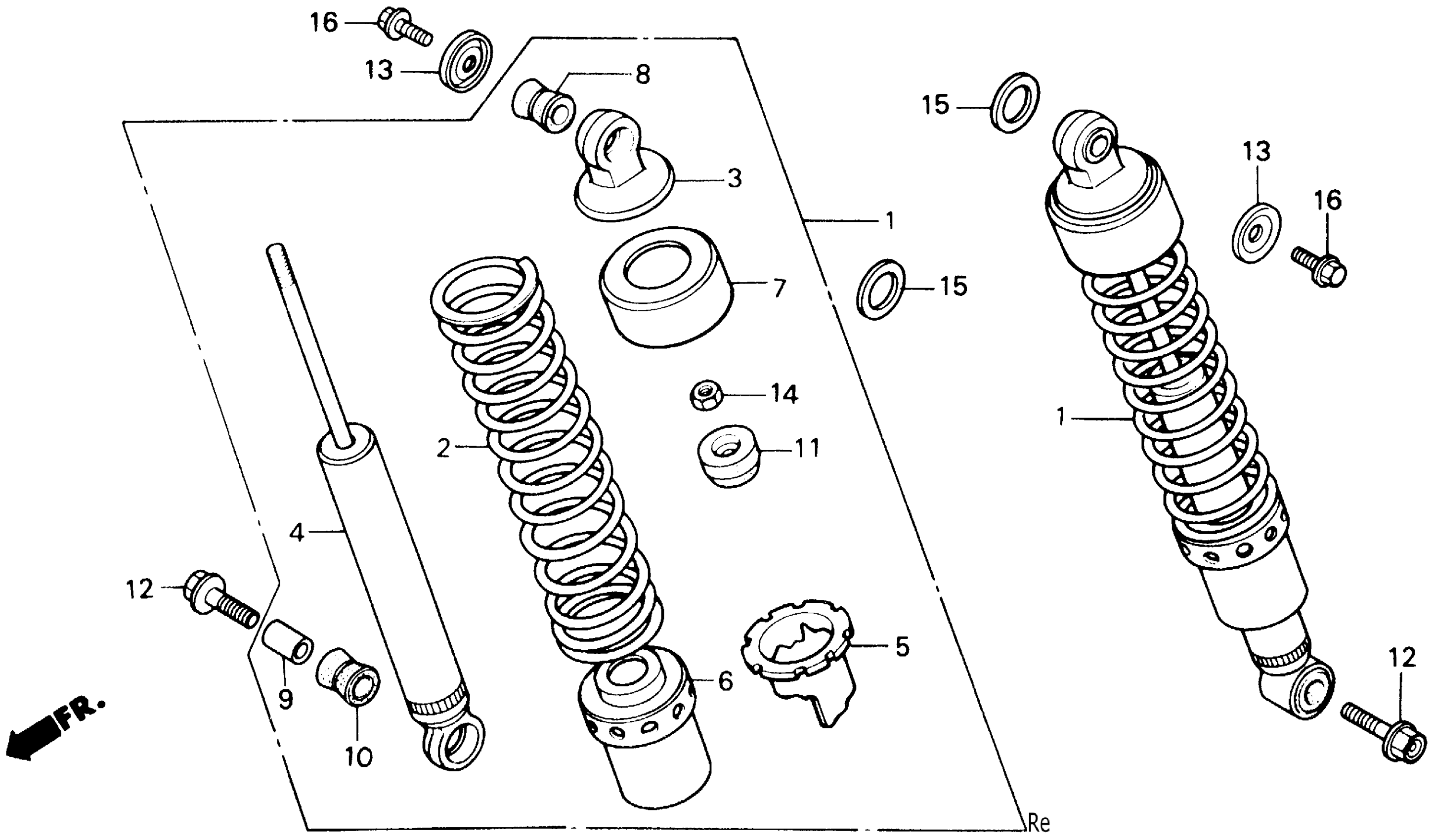

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (NOT AVAILABLE)

52400-MK6-671

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MK6-671

Unavailable

JOINT (UPPER) (SOURCE: VINTAGE PARTS INC.)

52403-KR3-003

$18.31

DAMPER, RR. (NOT AVAILABLE)

52410-MK6-671

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-ME4-003

Unavailable

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-KL8-003

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52460-KR3-003

Unavailable

BUSH, RR. SHOCK ABSORBER

52485-KR3-003

$4.78

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

BUSH, RR. SHOCK ABSORBER

52489-KR3-003

$5.08

RUBBER, STOPPER (NOT AVAILABLE)

52517-KR3-003

Unavailable

BOLT, FLANGE (10X35) (SOURCE: VINTAGE PARTS INC.)

90178-KN8-730

$4.32

WASHER, RR. SHOCK (NOT AVAILABLE) This part replaces 90502-428-000.

90502-429-770

Unavailable

NUT, HEX. (10MM)

94002-10000-0S

$4.06

WASHER, PLAIN (14MM)

94102-14000

$1.49

BOLT, FLANGE (6X14) This part replaces 96000-06014-02.

96001-06014-02

$1.49

BOLT, FLANGE (6X14)

96001-06014-02

$1.49
