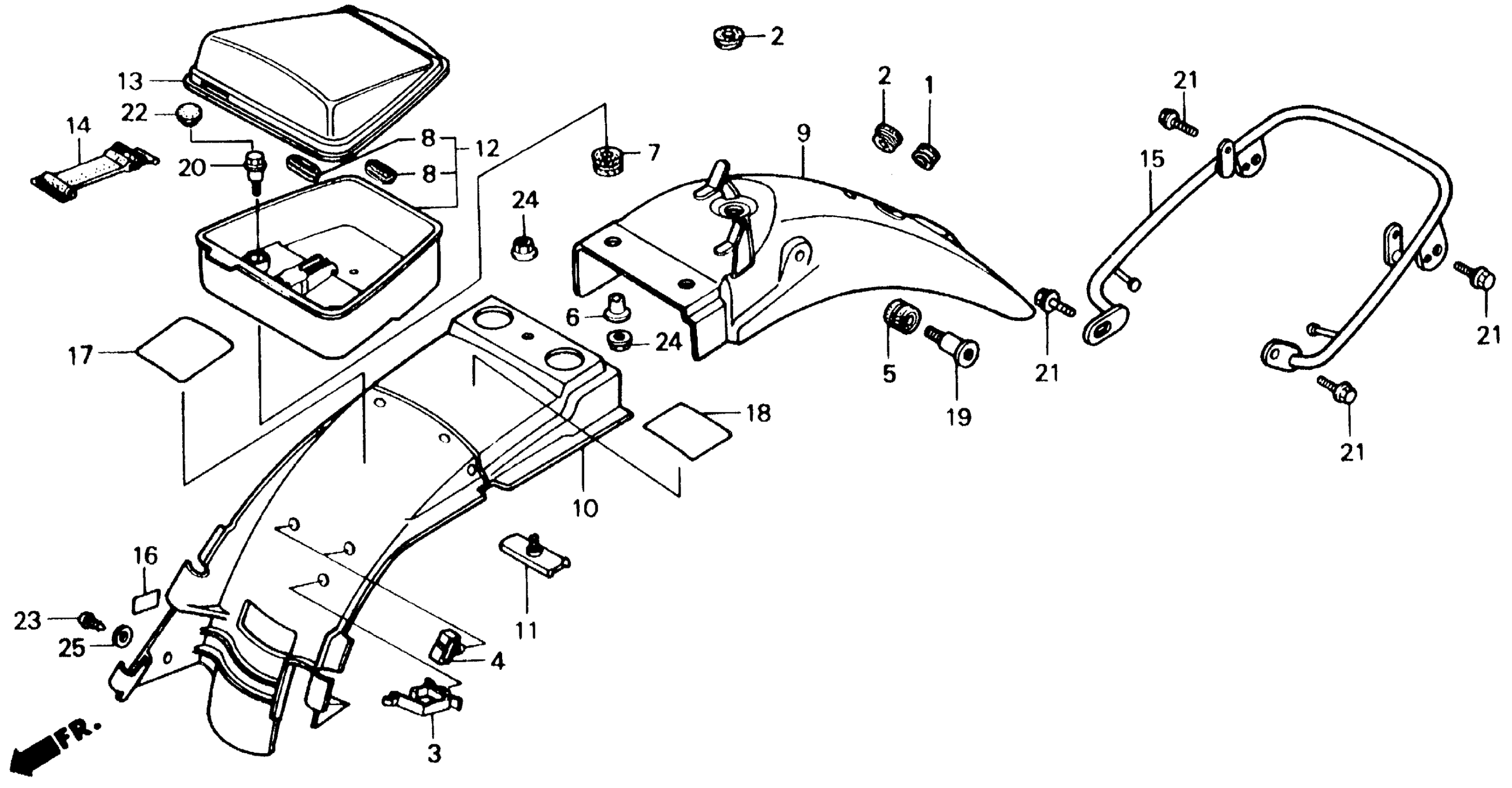

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 REAR FENDER Diagram

#

Description
Price

1

GROMMET, ADJUSTING COVER

11347-371-300

$1.95

2

GROMMET, WIRE HARNESS

32983-447-000

$2.92

3

CLIP, CABLE (NOT AVAILABLE)

32985-KC1-831

Unavailable

4

GROMMET, CABLE (NOT AVAILABLE)

32985-MG2-000

Unavailable

5

RUBBER, TURN SIGNAL BOLT SETTING (NOT AVAILABLE)

33606-428-610

Unavailable

6

COLLAR, SETTING

61104-422-000

$6.91

7

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.48

8

GROMMET, TOOL TRAY

77309-KK6-000

$2.70

9

FENDER, RR. (NOT AVAILABLE)

80100-KN8-730

Unavailable

10

FENDER B, RR. (NOT AVAILABLE)

80101-KN8-000

Unavailable

11

PLATE B, RR. FENDER (NOT AVAILABLE)

80104-KN8-000

Unavailable

12

BOX, TOOL (NOT AVAILABLE)

83500-KN8-700

Unavailable

13

COVER, TOOL BOX (NOT AVAILABLE)

83501-KN8-700

Unavailable

14

BAND, TOOL BOX (NOT AVAILABLE)

83606-198-900

Unavailable

15

GRIP, SIDE (NOT AVAILABLE)

84103-MK6-670

Unavailable

16

LABEL, HIGH ALTITUDE | (Optional).

87139-463-670

$7.08

17

LABEL, BATTERY (SOURCE: VINTAGE PARTS INC.)

87506-MK6-670

Unavailable

18

LABEL, ACCESSORIES & LOADING (NOT AVAILABLE)

87512-MK6-670

Unavailable

19

BOLT, RR. FENDER SETTING (NOT AVAILABLE)

90102-KN8-000

Unavailable

20

BOLT, SPECIAL (6X25) (SOURCE: VINTAGE PARTS INC.)

90105-KN8-000

Unavailable

21

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.89

22

PLUG, LOCATE HOLE

90851-680-000

$4.69

23

SCREW, TAPPING (4X12)

93903-24380

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

WASHER, PLAIN (4MM)

94101-04700

$1.49
